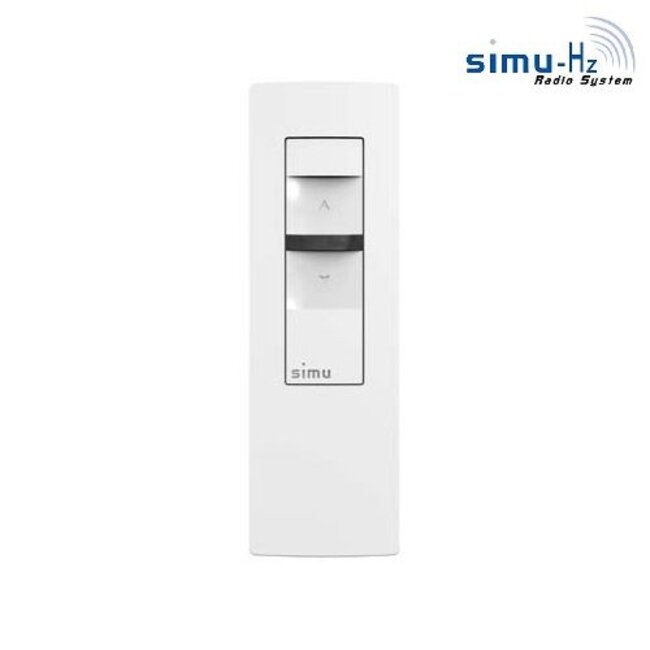

Simu Hz 1-channel 433 MHz handheld transmitter

Can be used with a product equipped with a Simu Hz receiver or Simu tubular motor with integrated HZ receiver.

- 1-channel remote control
- frequency 433.42 MHz
- handheld transmitter has a rolling code
- easy to program
- handheld transmitter is supplied with a white cover frame as standard
- cover frame in anthracite, taupe, red, blue or aluminum can be ordered separately
- supplied with battery as standard
- three keys (up-stop-down)
- supplied with a handy magnetic mounting plate

Setting up a new Simu Hz transmitter with integrated receiver using an already functioning transmitter
1. Take an already programmed Simu HZ transmitter
2. Press the programming button on the back until the roller shutter responds with a short movement.
3. Take the new Simu HZ transmitter
4. Briefly press the programming button on the back until the roller shutter responds with a short movement.
5. the new Simu HZ transmitter is set

Replacing a lost Simu HZ transmitter
only a single motor may be energized
1. Turn off the power for 2 seconds
2. Turn on the power for 8 seconds
3. Turn off the power again for 2 seconds
4. Switch the power on again, the motor responds with a short movement
5. Briefly press the programming button on the transmitter, the motor responds with a short movement
6. the new channel is set
