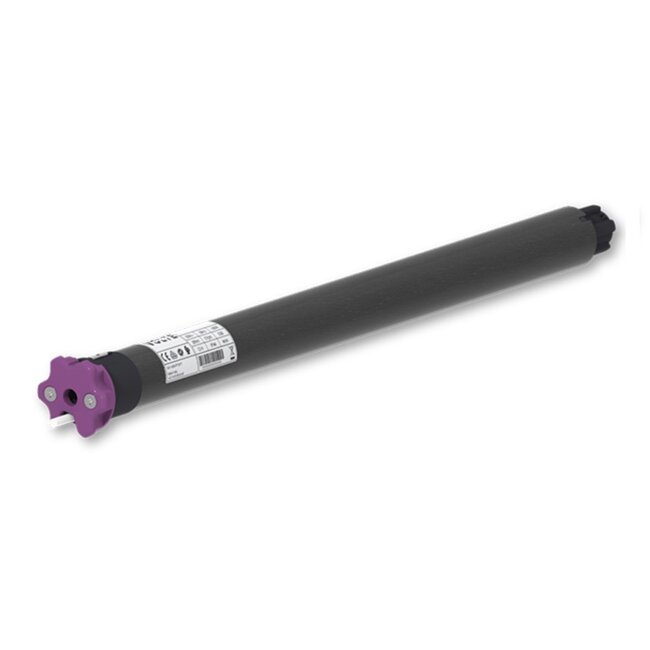

Volte 50 ET-PP plug & play roller shutter motor

Fully plug and play tubular motor for roller shutters, the roller shutter always opens and closes perfectly when the end positions are set automatically The automatic maintenance cycle means the end positions are taught in every month

- fully automatic electrionic adjustment
- only applicable with rigid joints
- end adjustments also possible manually via Switch
- obstacle detection in both up and down direction
- tube motor stops in the event of an obstacle or freezing
- parallel switching of tubular motors possible
- available in 6, 10 and 20 Nm
- speed 17 rpm
- supply voltage 230 Volt
- noise level 47 to 57 DB
- 2.5 mtr 4-wire white motor cable
- double insulation according to class II and therefore not equipped with an earth wire
- protection class IP44

Volte 50 ET-PP tube motor is available in the following versions
- Volte 50 ET-PP 6/17 - 6 Nm - 17 rpm - 46 DB - 100 Watt - 593 mm - 2.18 kg
- Volte 50 ET-PP 10/17 - 10 Nm - 17 rpm - 47 DB - 120 Watt - 593 mm - 1.94 kg
- Volte 50 ET-PP 20/17 - 20 Nm - 17 rpm - 53 DB - 190 Watt - 628 mm - 2.12 kg
