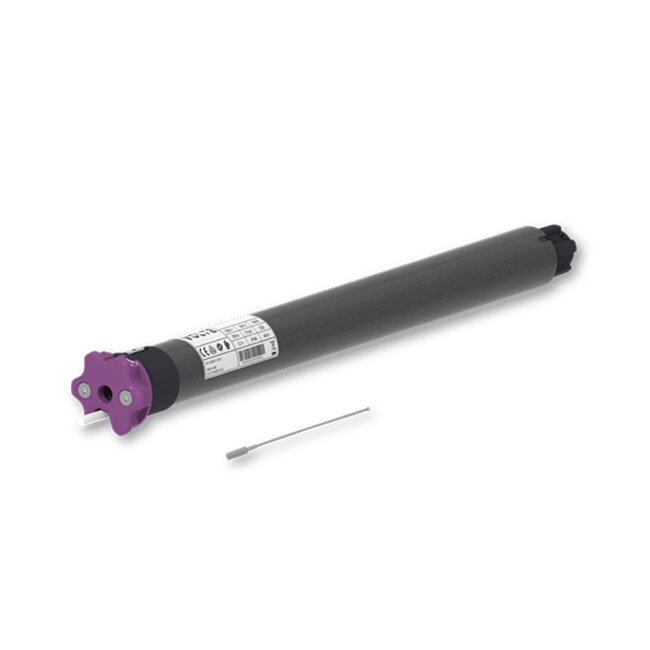

Volte 50 mm tubular motor with mechanical adjustment

- mechanical adjustment with pivot pins
- available in 6 to 50 Nm
- speed depending on force 17 or 12 rpm
- supply voltage 230 V
- noise level 47 to 57 DB
- 2.5 mtr 3-wire white motor cable
- double insulation according to class II and therefore not equipped with an earth wire
- protection class IP44

Volte 50 mm WT tubular motor is available in the following versions
- Volte 50 WT 6/17 - 6 Nm - 17 rpm - 100 Watt - length 526 mm - 47 DB - weight 1.68 kg
- Volte 50 WT 10/17 - 10 Nm - 17 rpm - 120 Watt - length 526 mm - 47 DB - weight 1,72 kg
- Volte 50 WT 20/17 - 20 Nm - 17 rpm - 190 W - length 576 mm - 53 DB - weight 1,89 kg
- Volte 50 WT 30/17 - 30 Nm - 17 rpm - 240 W - length 576 mm - 55 DB - weight 1.98 kg
- Volte 50 WT 40/17 - 40 Nm - 17 rpm - 240 Watt - length 576 mm - 57 DB - weight 1.98 kg
- Volte 50 WT 50/12 - 50 Nm - 12 rpm - 240 Watt - length 576 mm - 57 DB - weight 1.98 kg
