Cherubini adaption set Ø 70 mm Axle/Shaft - 45 mm series

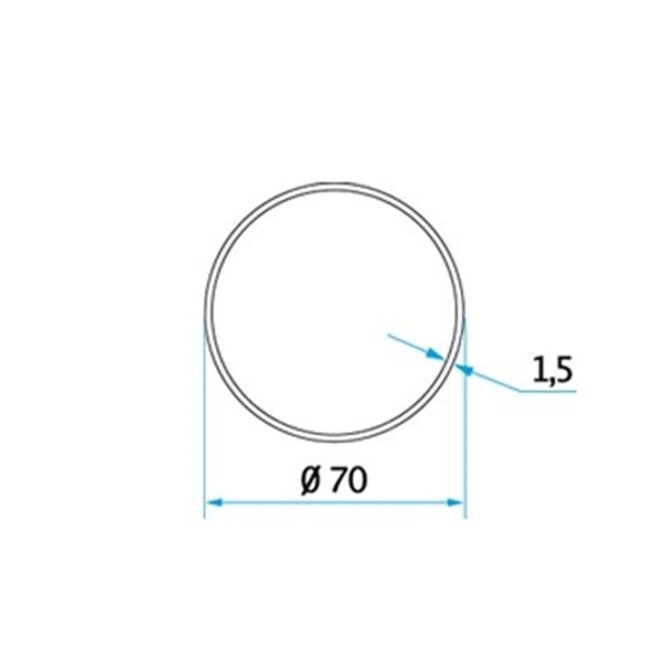

The adapter set for a Ø 70 mm tube, suitable for the Cherubini Ø 45 tube motor, the adapter set makes it possible to adapt a Cherubini Ø 45 tube motor to a Ø 70 mm tube with cloth slot with an outer diameter of 70 mm and a wall thickness of 1.5 mm.

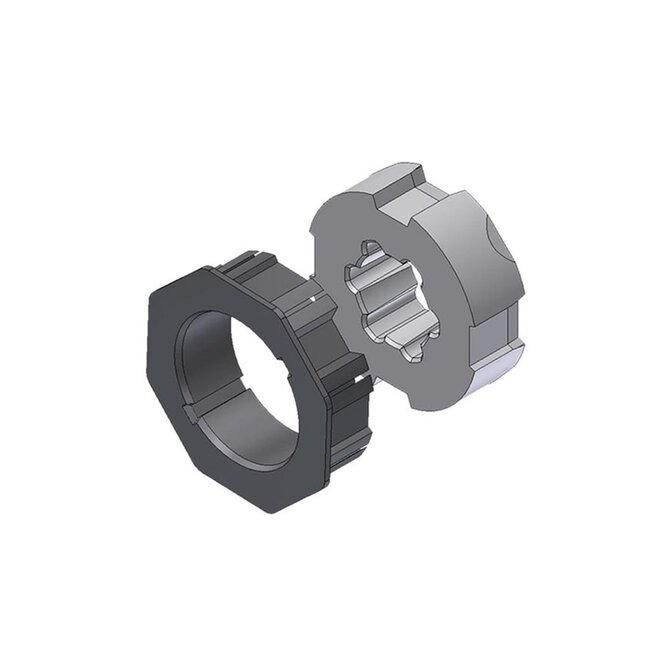

An adapter set for the Cherubini Ø 45 tubular motor consists of an adapter and carriage.
The adapter is the part on the motor wire side, which ensures that the spindle of the motor adjustment runs on motors with mechanical adjustment.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.

This adapter set for a Ø 70 mm Axle/Shaft is suitable for all 45 mm Cherubini tubular motors.
