Cherubini adaptation set Ø 78 mm Axle/Shaft with cloth slot- 45 mm series Read more.

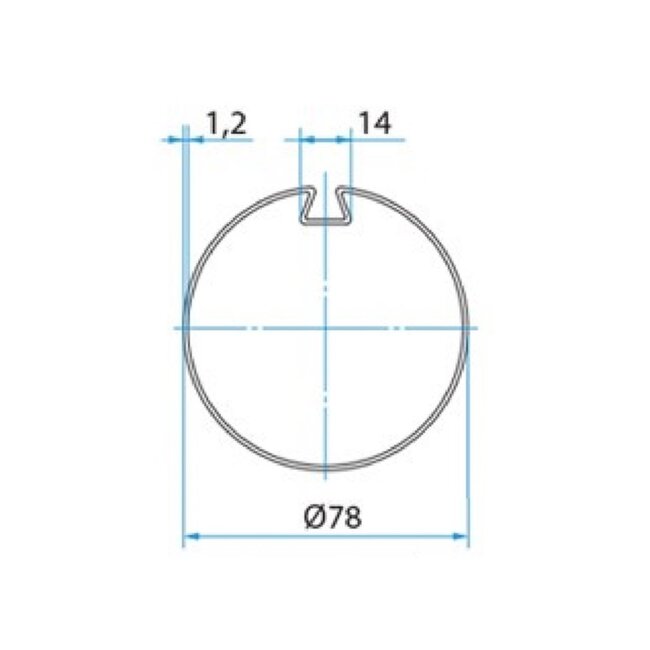

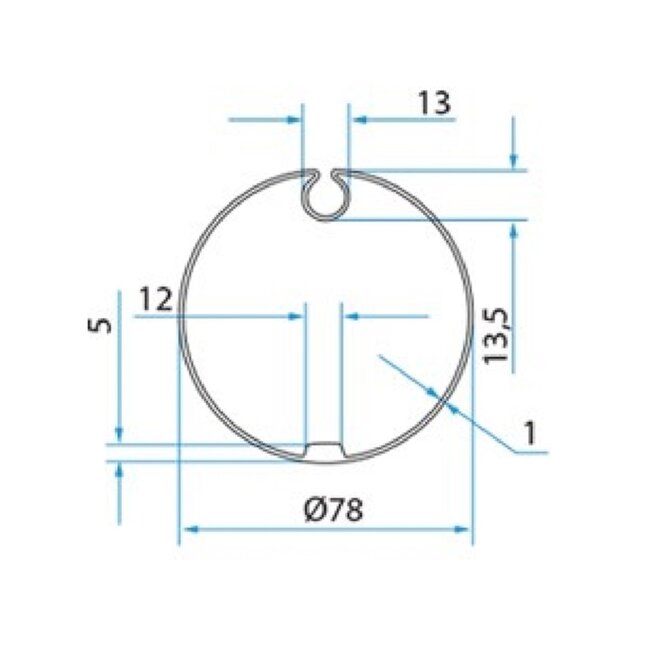

The adapter set for an Ogive Ø 78 mm Axle/Shaft with cloth slot often used for articulated blinds, suitable for the Cherubini Ø 45 tubular motor, the adapter set makes it possible to adapt a Cherubini Ø 45 awning motor to this Ø 78 mm tubular motor with cloth slot with an outer diameter of 78 mm and a wall thickness of ± 1 - 1.2 mm.

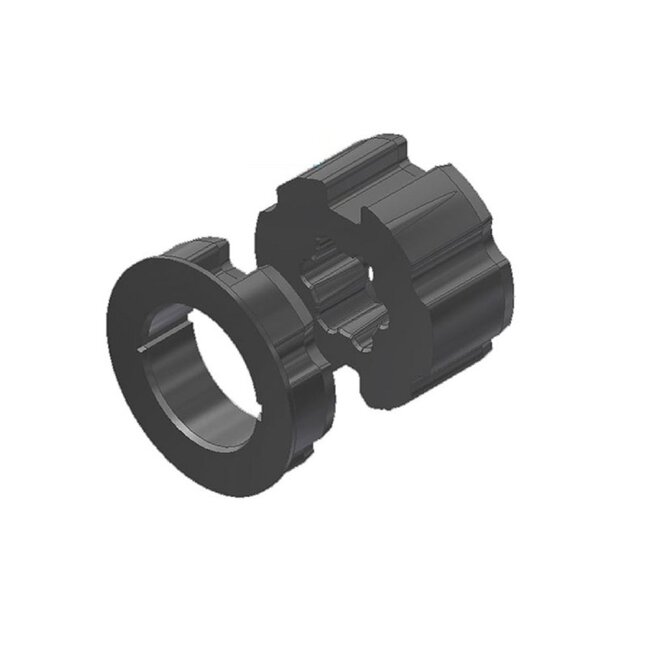

An adapter set for the Cherubini Ø 45 tube motor consists of an adapter and carriage.
The adapter is the part on the motor wire side, which ensures that the spindle of the motor adjustment runs on motors with a mechanical adjustment.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.
This adapter set for an Ogive Ø 78 mm with cloth slot is suitable for all 45 mm tubular motors by Cherubini
