Volte adapter set for Ø 78 axle/Shaft with cloth slot

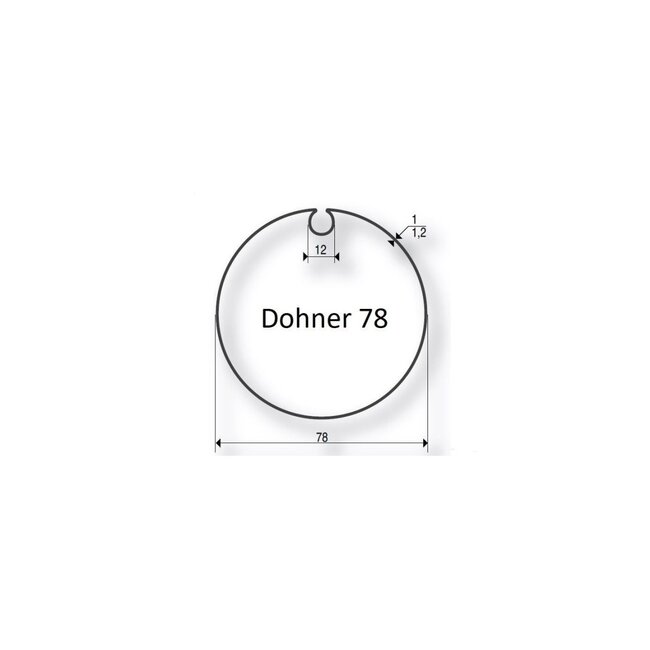

The adapter set for a Ø 78 tube with cloth slot, suitable for the Volte Ø 60 mm tubular motors, the adapter set makes it possible to make these tubular motors suitable for a Ø 78 mm Axle/Shaft. The Axle/Shaft has an outer diameter of 78 mm and a wall thickness of ± 1 mm, commonly used for an articulated screen.

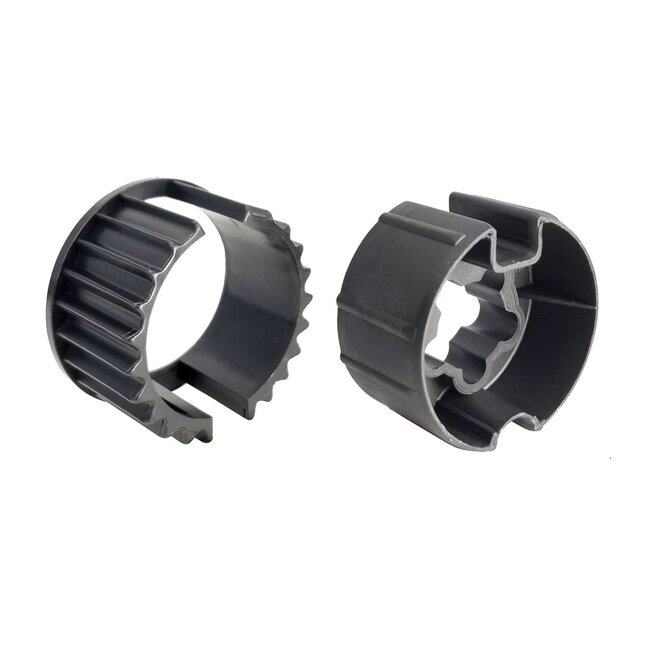

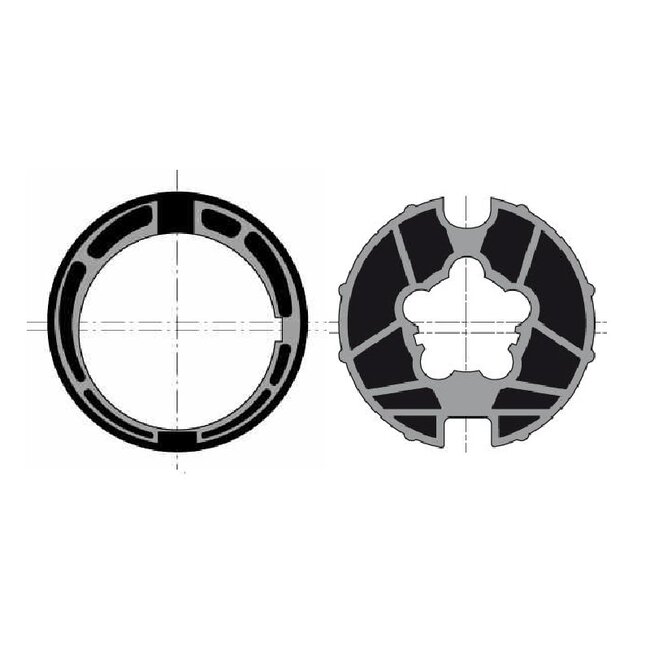

An adapter set for a tubular motor always consists of an adapter and carrier. The adapter is the part on the motor wire side that makes the spindle of the motor adjustment run on motors with a mechanical adjustment. The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.
