Cherubini adaptation set Ø 78 with cloth slot - 58 mm series

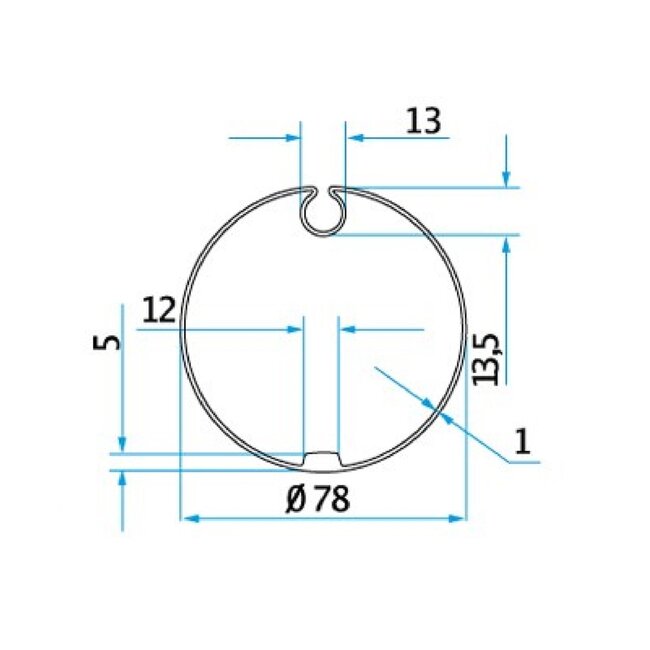

The adapter set for a Ø 78 tube with cloth groove, suitable for your Cherubini 28 mm tubular motors, the adapter set makes it possible to adapt a Cherubini 58 mm awning motor to a Ø 78 tube with cloth groove with an outer diameter of 78 mm and a wall thickness of ± 1 mm, commonly used Axle/Shaft for an articulated blind.

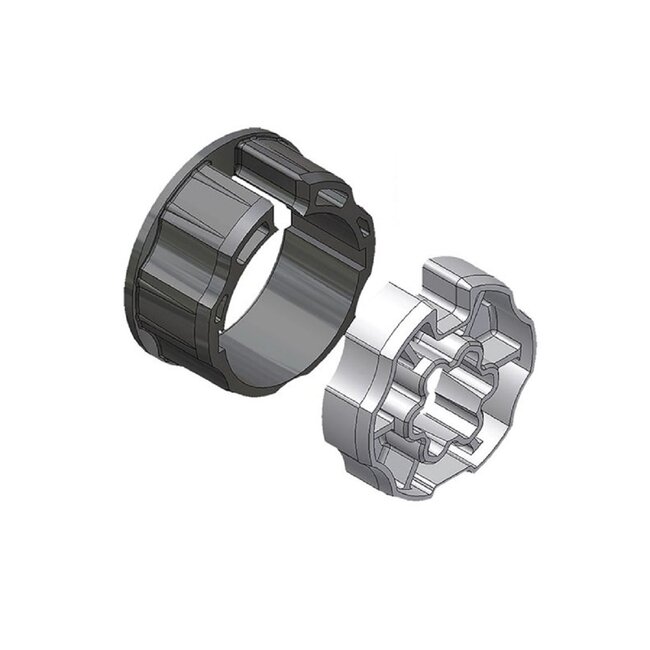

An adapter set for Cherubini 58 mm tubular motors consists of an adapter and carrier.
The adapter is the part on the motor wire side which, in motors with a mechanical adjustment, ensures that the spindle of the motor adjustment runs.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.

This adapter set Ø 78 with cloth slot is suitable for all Cherubini 58 mm tubular motors.
