Faac adaption set Ø 78 with cloth slot - TM2 58 series

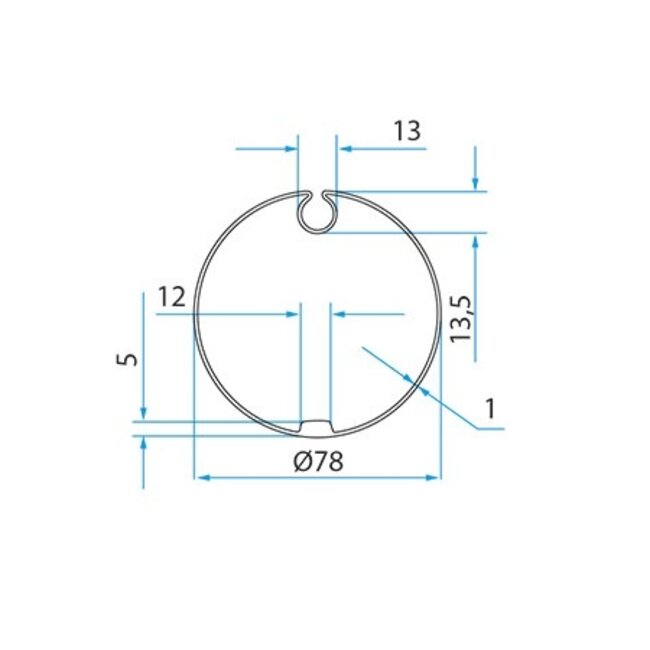

The adapter set for a Ø 78 tube with cloth groove, suitable for the Faac TM2 58 and TM2 58 M tubular motors, the adapter set makes it possible to adapt a Faac TM2 58 awning motor to a Ø 78 tube with cloth groove with an outer diameter of 78 mm and a wall thickness of ± 1 mm, Axle/Shaft often used for an articulated sunshade.

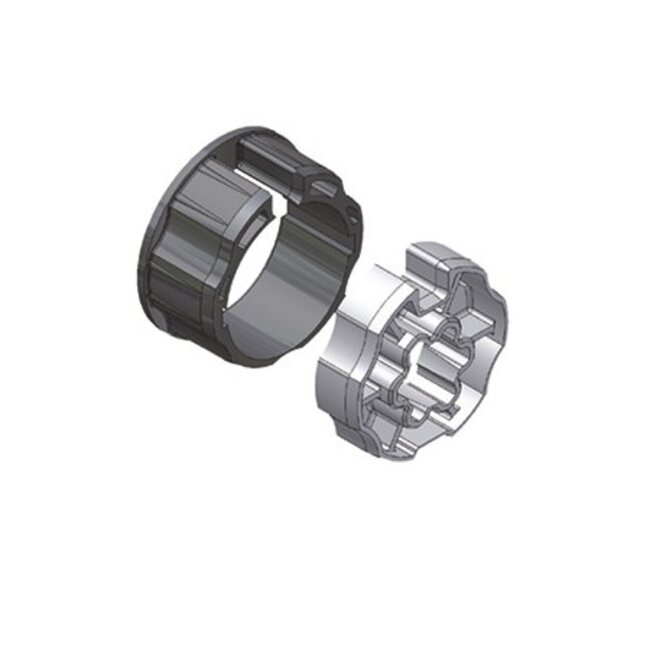

An adapter set for the Faac TM2 58 tubular motors consists of an adapter and carrier.
The adapter is the part on the motor wire side that makes the spindle of the motor adjustment run on motors with a mechanical adjustment.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.

This adapter set Ø 78 with cloth slot is suitable for all TM2 58 tubular motors from Faac
