Adaption set for tube 8 side 102 suitable for the Faac TM2 58 tube motor Read more.

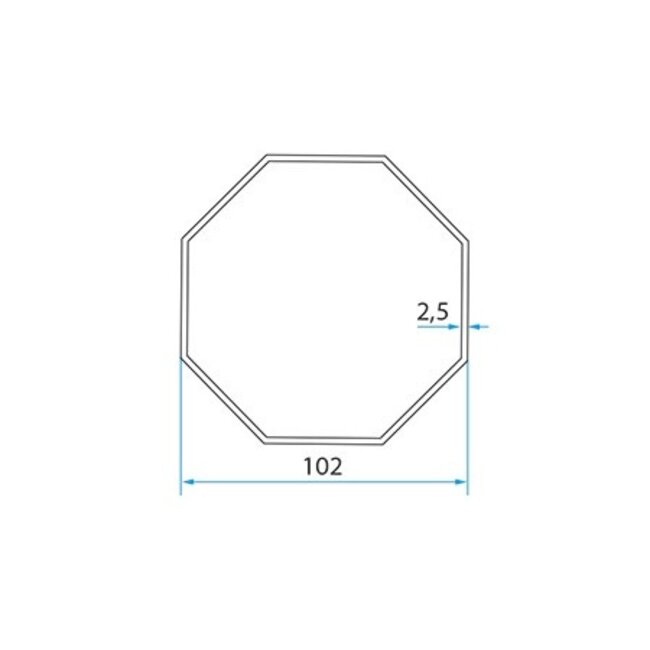

Adapter set for an octagonal 102 mm, suitable for the Faac TM2 58 and TM2 58 M tube motors, the adapter set makes it possible to adapt a Faac TM2 58 roller shutter motor to an 8-sided tube with an outer diameter of 102 mm (measured from flat side to flat side) and a wall thickness of ± 2.5 mm.

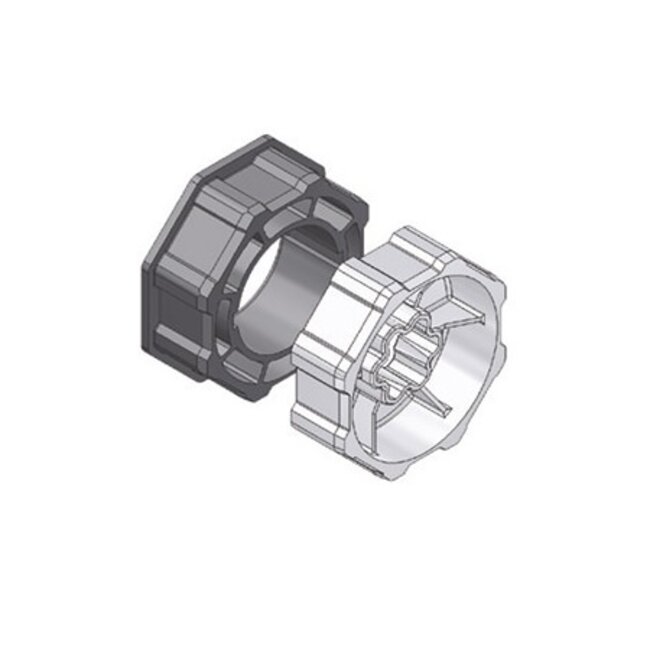

An adapter set for the Faac TM2 58 tube motors consists of an adapter and carriage.
The adapter is the part on the motor wire side that makes the spindle of the motor adjustment run on motors with a mechanical adjustment.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.
This adapter set 8 side 102 mm is suitable for all TM2 58 tubular motors by Faac
