Volte Adaption set 8 side 60

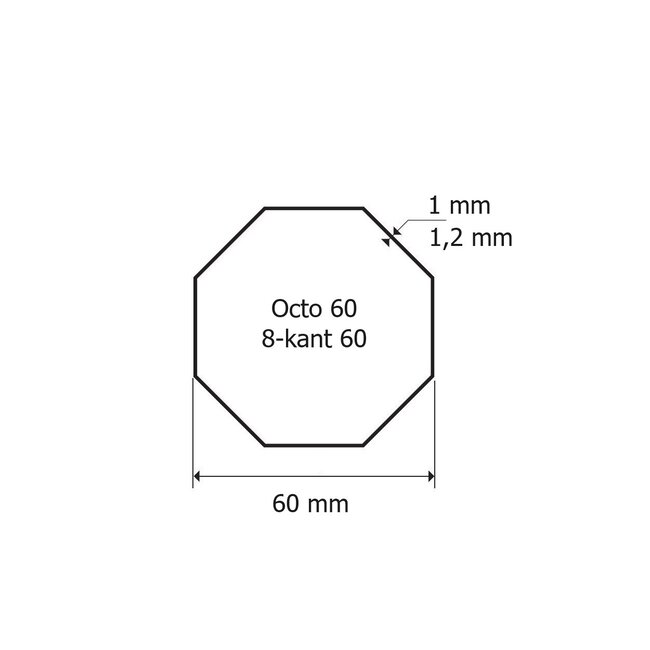

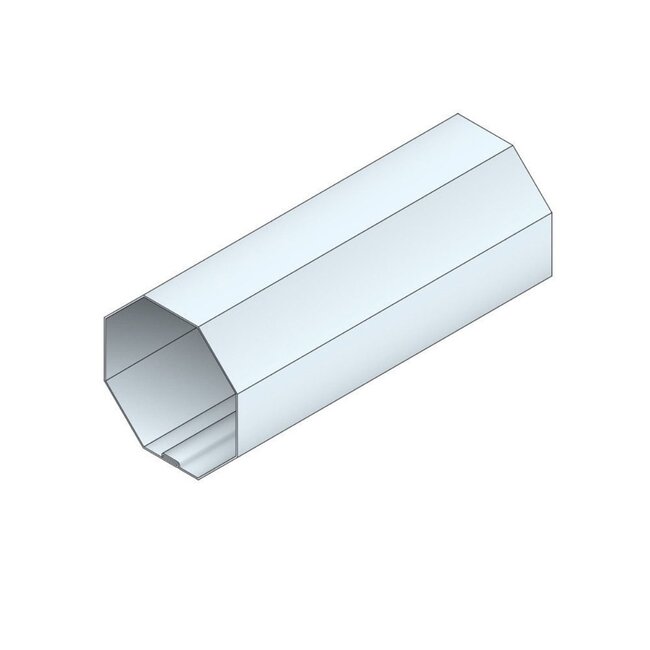

The adapter set for an octagonal 60 mm Axle/Shaft, suitable for the Volte tube motors of the Ø 50 mm series, the adapter set makes it possible to adapt the Volte Ø 50 mm tube motors to an 8-sided tube with an outer diameter of 60 mm (measured from flat side to flat side) and a wall thickness of 0.8 to 1.20 mm.

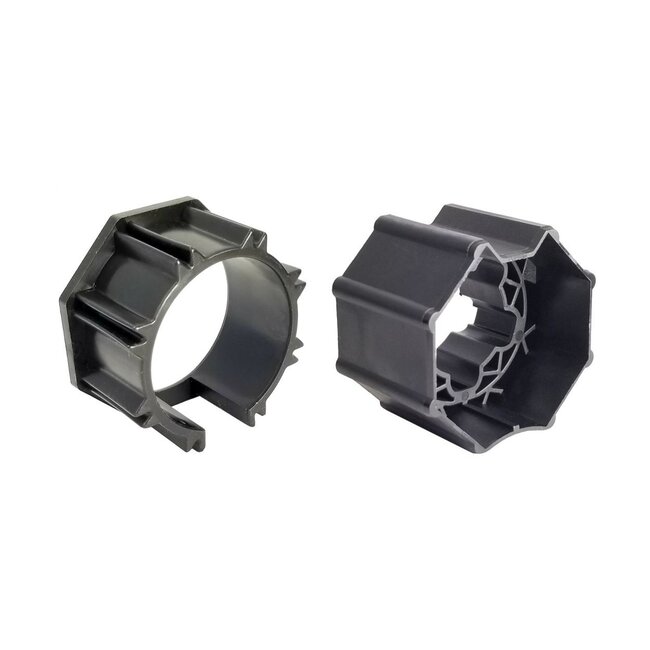

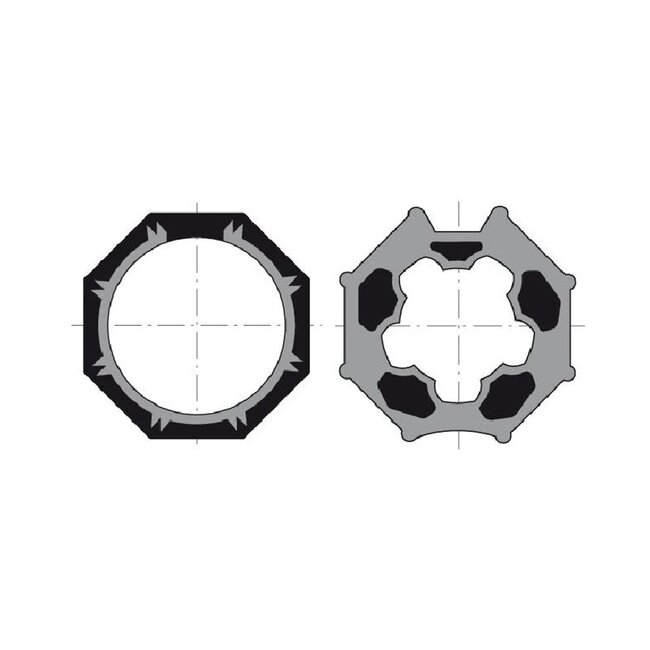

An adapter set consists of an adapter and carriage. The adaptor is the part on the motor wire side that makes the motor adjustment spindle run on motors with mechanical adjustment. The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.
