Volte Adaption set 8 side 70

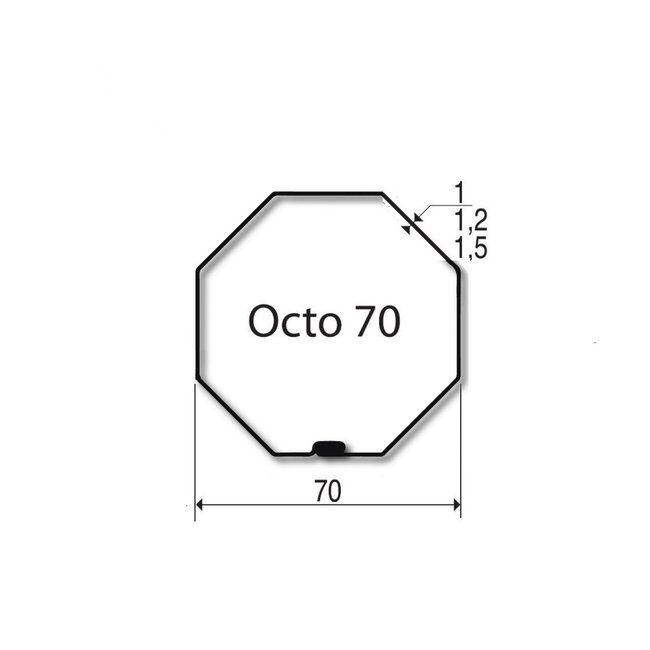

The adapter set for an octagonal 70 mm Roller Shutter Axle/Shaft, suitable for the Volte tube motors of the Ø 60 mm series, in combination with a shim also suitable for the Volte Ø 50 mm series tube motors, the adapter set makes it possible to adapt the Volte Ø 60 mm tube motors to an 8-sided tube with an outer diameter of 70 mm (measured from flat side to flat side) and a wall thickness of ± 1.20 mm.

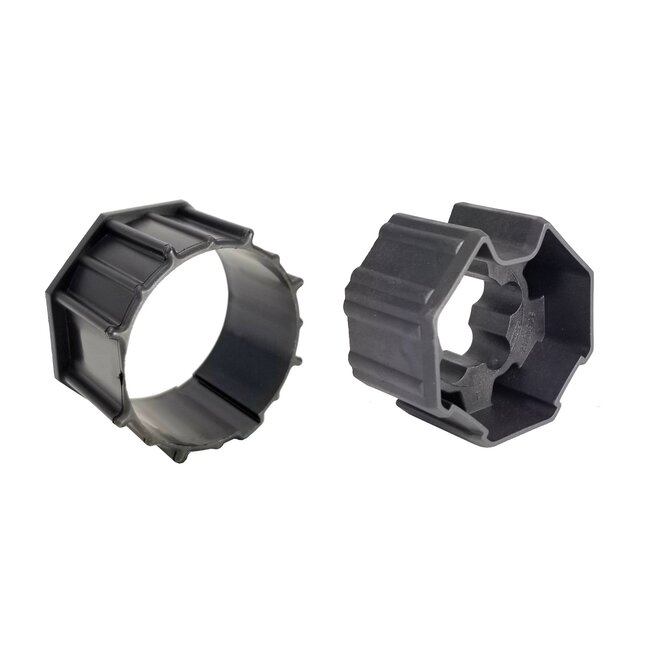

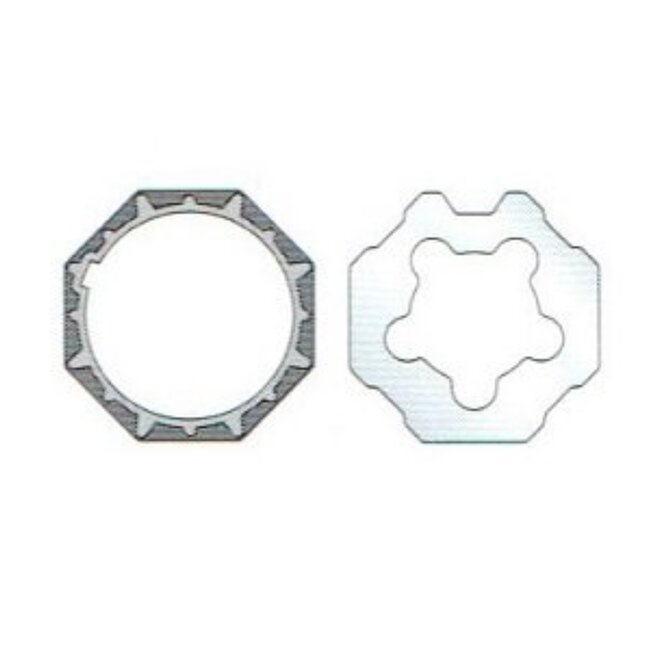

An adapter set consists of an adapter and carriage. The adaptor is the part on the motor wire side that makes the motor adjustment spindle run on motors with mechanical adjustment. The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.
