Faac adapter set 8 side 70 - TM2 58 series

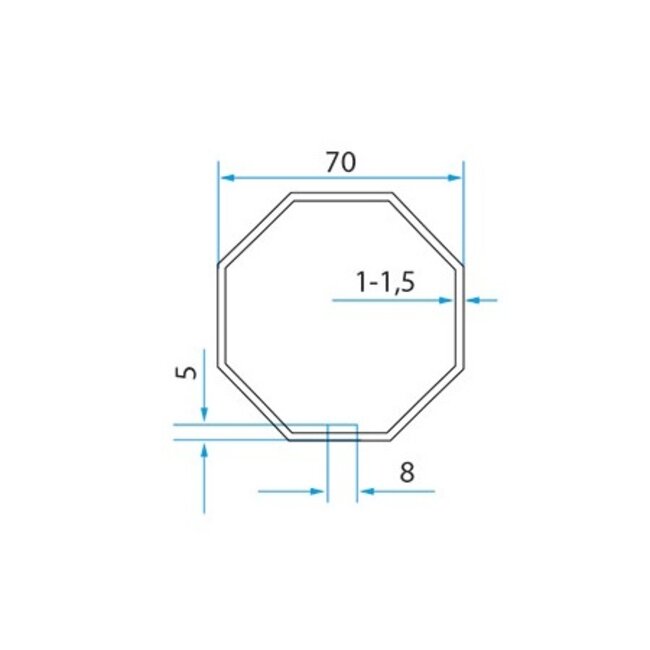

The adapter set for an octagonal 70 mm, suitable for the Faac TM2 58 and TM2 58 M tube motors, the adapter set makes it possible to adapt a Faac TM2 58 roller shutter motor to an 8-sided tube with an outer diameter of 70 mm (measured from flat side to flat side) and a wall thickness of 1 to 1.15 mm.

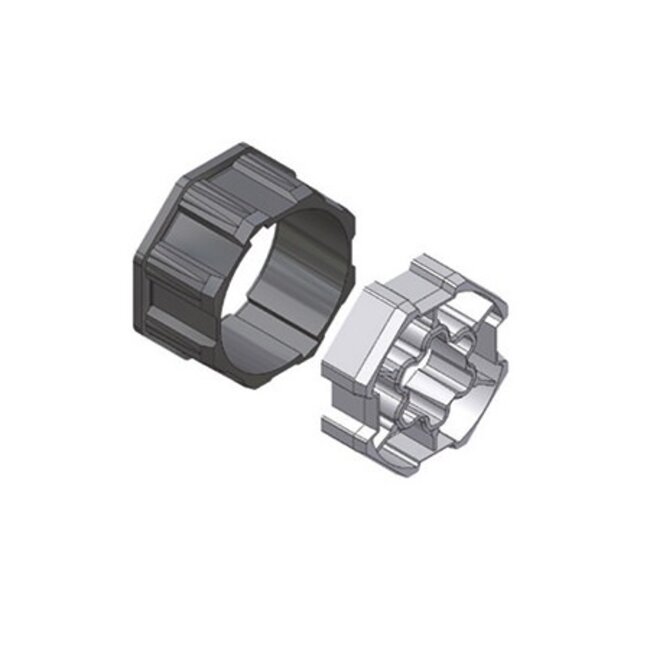

An adapter set for the Faac TM2 58 tube motors consists of an adapter and carriage.
The adapter is the part on the motor wire side that makes the motor adjustment spindle run on motors with mechanical adjustment.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.

This adapter set 8 side 70 mm is suitable for all TM2 58 tubular motors from Faac
