Volte adapter set for an Imbac axle/Shaft Ø 85 mm with cloth slot

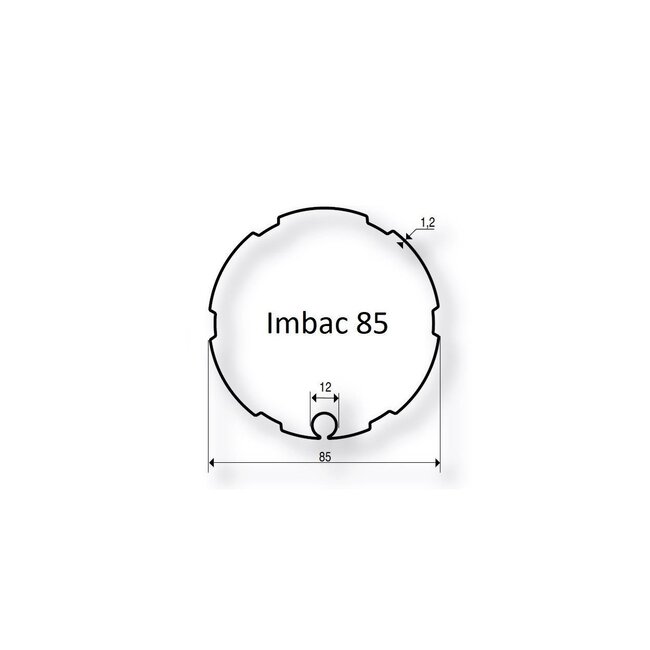

The adapter set for an Imbac Axle/Shaft Ø 85 mm with cloth slot, suitable for the Volte Ø 60 mm series of tube motors, in combination with a shim also suitable for the Volte Ø 50 mm series of tube motors, makes it possible to adapt this tube motor to a round tube with an outer diameter of 85 mm and a wall thickness of 1.2 mm.

An adapter set consists of an adapter and carriage. The adapter is the part on the motor wire side that makes the spindle run on motors with a mechanical adjustment. The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.
