Cherubini adaption set Ø 89 Deprat - 58 mm series

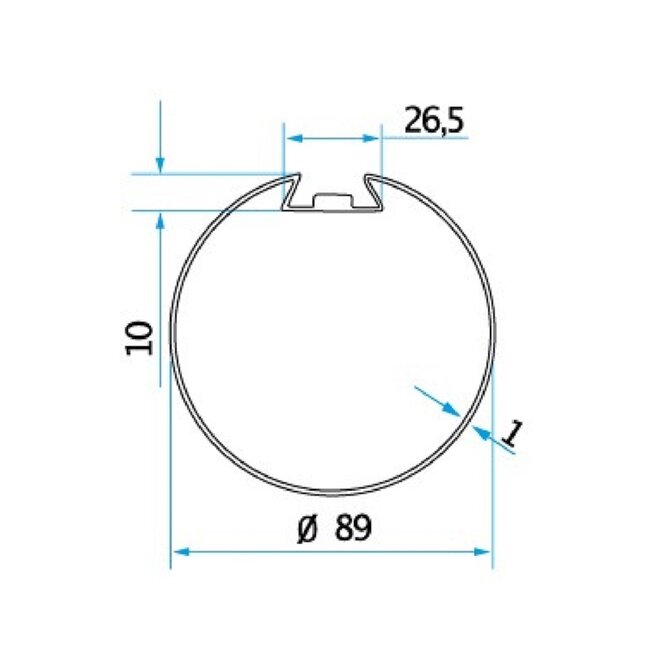

Adapter set for a Ø 89 tube with cloth slot, suitable for the Cherubini 58 mm tube motors, the adapter set makes it possible to adapt a Cherubini 58 mm tube motor to a Ø 89 tube with an outer diameter of 89 mm and a wall thickness of ± 1 mm.

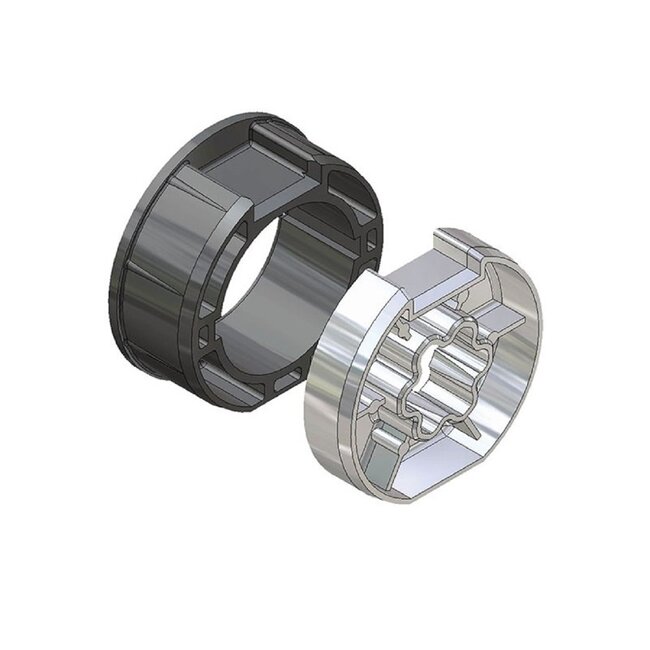

An adapter set for Cherubini tube motors consists of an adapter and carrier.
The adapter is the part on the motor wire side which, in motors with mechanical adjustment, ensures that the spindle of the motor adjustment runs.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.

This adapter set Ø 89 with cloth slot is suitable for all Cherubini 58 mm tubular motors.
