Cherubini adaptation set - carriage Ø 50 mm Axle/Shaft - 45 mm series Read more.

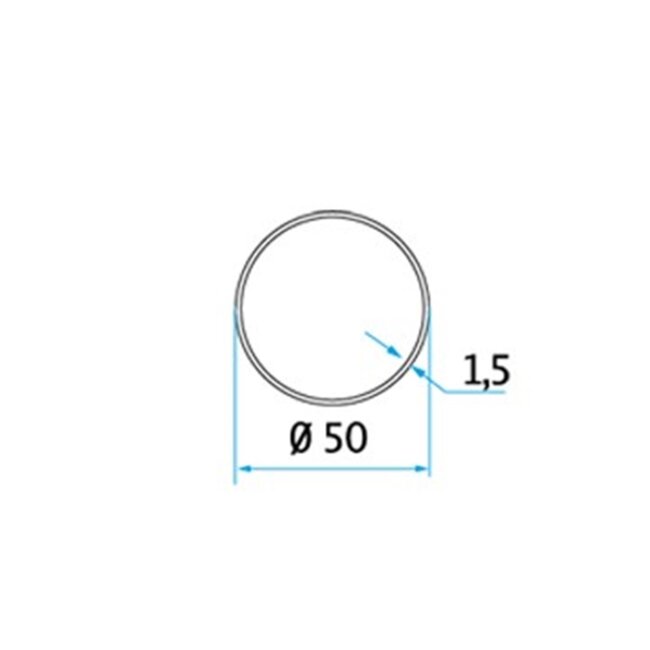

This adapter set makes it easy to fit your Cherubini Ø 45 roller shutter motor into a round 50 mm tube (without cloth slot) for Roller shutters and blinds with an outer diameter of 50 mm and a wall thickness of 1.5 mm.

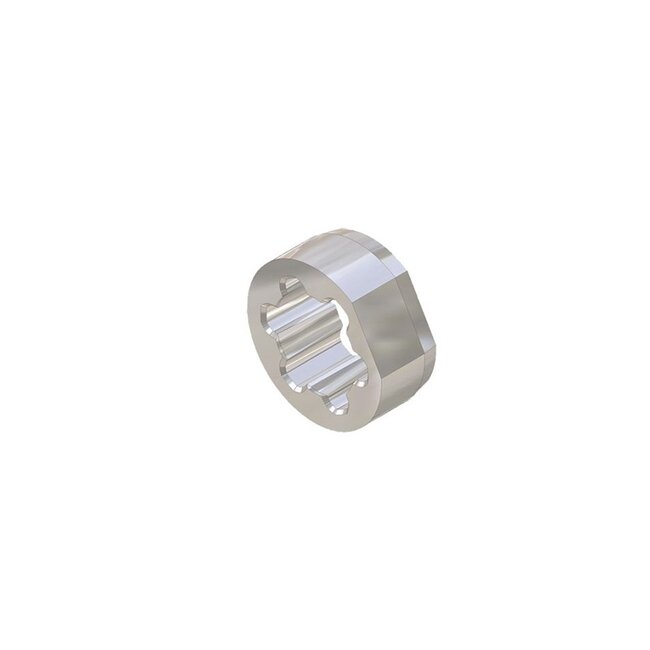

Normally, an adapter set consists of two parts, the adapter and the carriage. The adapter is located on the motor wire side and ensures that the tube motor adjustment functions. On the head side of the tubular motor you will find the carrier, which is responsible for the solid connection between the Axle/Shaft and the tubular motor. Since a Ø 50 mm tube has no room for an adapter of a 45 mm tube motor, the counting ring is directly the adapter and this "adapter set" only consists of the carriage.
This specific attachment for 50 mm diameter round tubes is compatible with all Ø 45 mm Cherubini motors. With this carriage, you are guaranteed a seamless integration of your Cherubini 45 tube motor into a tube with the desired specifications. Make it easy on yourself and rely on the quality of our adapter set to make your project run smoothly.
