Volte adapter set for Axle/Shaft 8k40

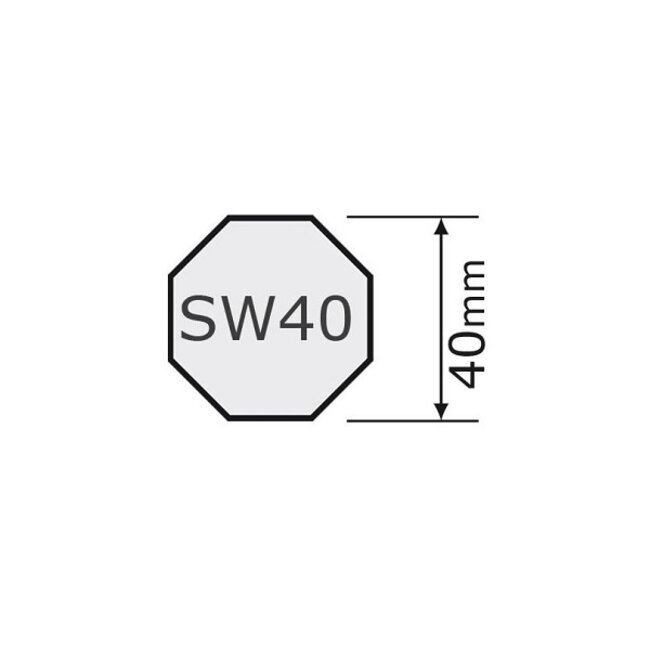

The adapter set for octagonal 40 mm, for the Volte Ø 40 mm tube motor, makes it possible to adapt a Volte Ø 40 mm tube motor to an octagonal tube with an outer diameter of 40 mm (measured from flat side to flat side) and a wall thickness of 0.6 to 0.8 mm.

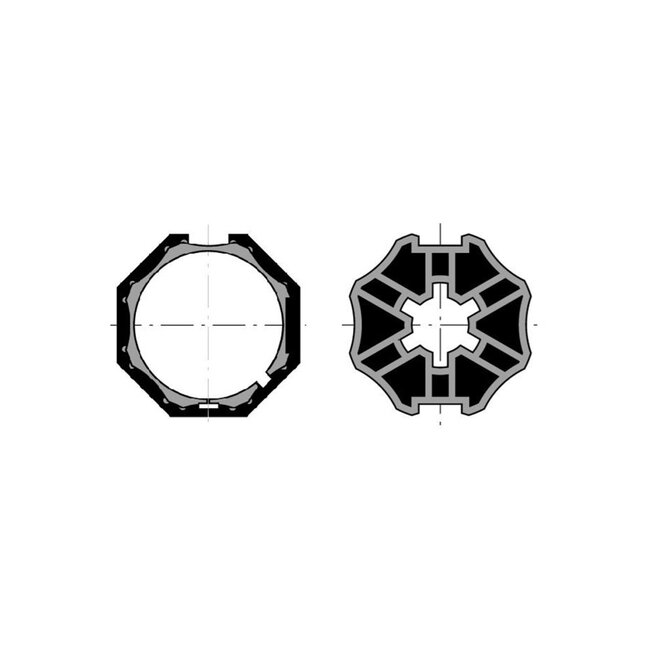

An adapter set consists of an adapter and carriage. The adaptor is the part on the motor wire side that makes the motor adjustment spindle run on motors with mechanical adjustment. The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.
