House brand adapter set 8 side 60

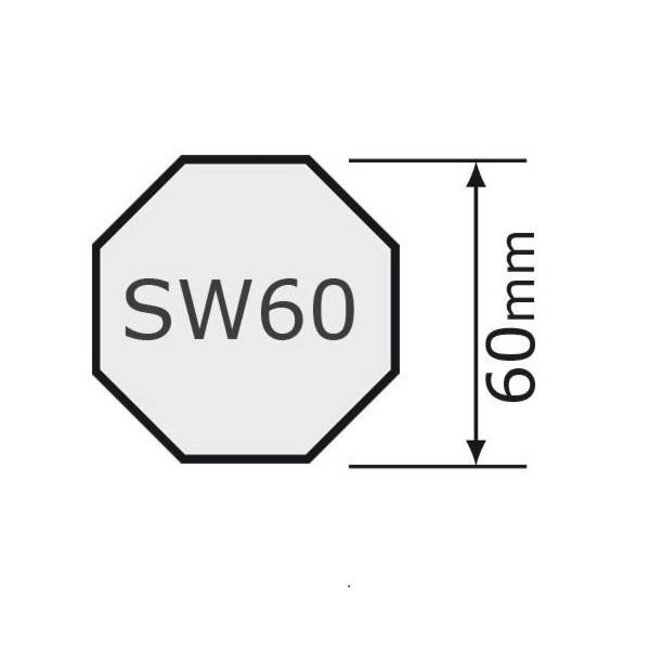

The adapter set for an Axle/Shaft 60, suitable for the house brand tube motors, makes it possible to adapt our roller shutter motors to an 8-sided tube with an outer diameter of 60 mm (measured from flat side to flat side) and a wall thickness of 0.6 mm.

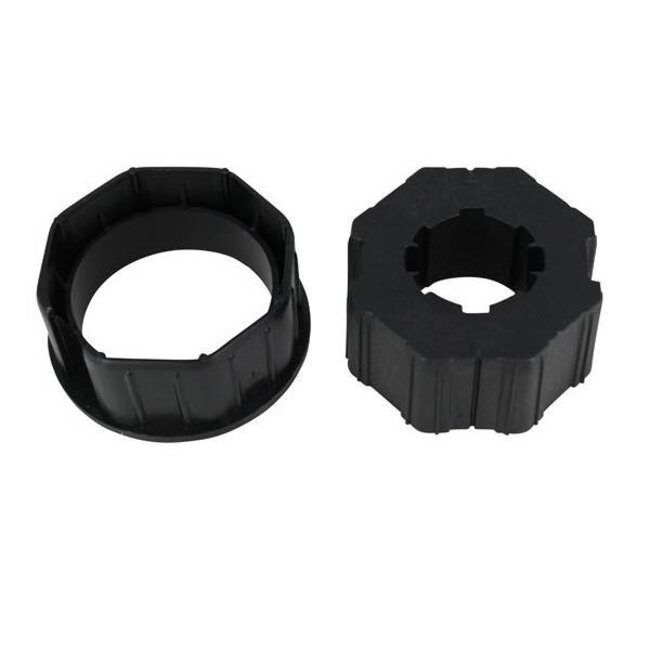

An adapter set for house brand tube motors consists of an adapter and carriage.
The adapter is the part on the motor wire side that makes the spindle run on motors with a mechanical adjustment.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.

This adapter set 8 side 60 mm is suitable for, among others, the following house brand tube motors:

- House brand TTGO TG M
- House brand TTGO TG ME
