With this adapter set, you can easily make your Cherubini Ø 58 roller shutter motor suitable for fitting in a Heroal SW125 roller shutter tube Read more.
The adapter set for an octagonal 125 mm, suitable for the Cherubini 58 mm tube motors, the adapter set makes it possible to adapt a Cherubini 58 mm roller shutter motor to an octagonal tube with an outer diameter of 125 mm (normally measured from flat side to flat side, only in the case of the Heroals SW125 we measure from corner to corner, see picture).

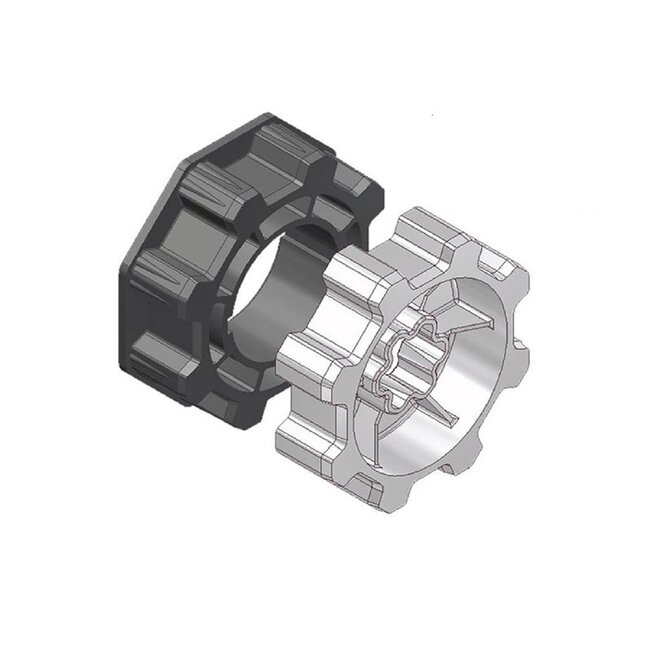

An adapter set for Cherubini 58 mm tube motors consists of an adapter and carriage.
The adapter is the part on the motor wire side, which on motors with a mechanical adjustment ensures that the spindle of the motor adjustment runs.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.
This adapter set Heroal SW125 is suitable for all Cherubini 58 mm tubular motors.
