The adapter set for an Ogive 85, for the Nice Era M and MH series, allows a Nice tube motor to be adapted to an Ogive 85 tube. This Ogivce 85 tube has an outer diameter of 85 mm, wall thickness of 1.3 mm and round cloth slot of ± Ø 13 mm. Read more.

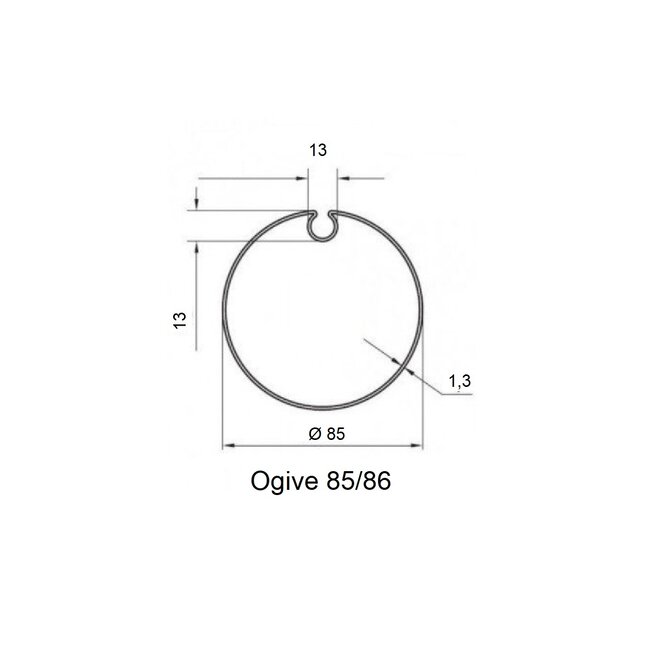

The adapter set for an Ogive 85, suitable for the Nice Era M and MH series, make it possible to adapt a Nice roller shutter motor to an Ogive 85 tube. This Ogivce 85 tube has an outer diameter of 85 mm, a wall thickness of 1.3 mm and a round cloth slot of ± Ø 13 mm.

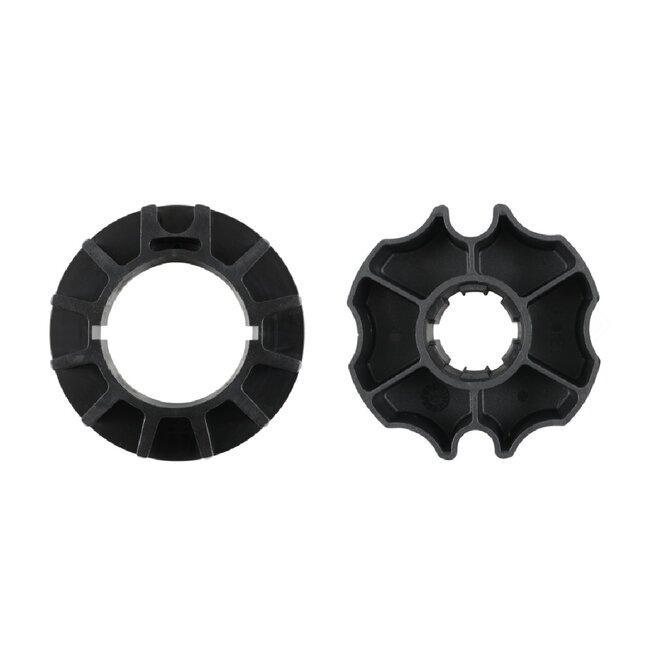

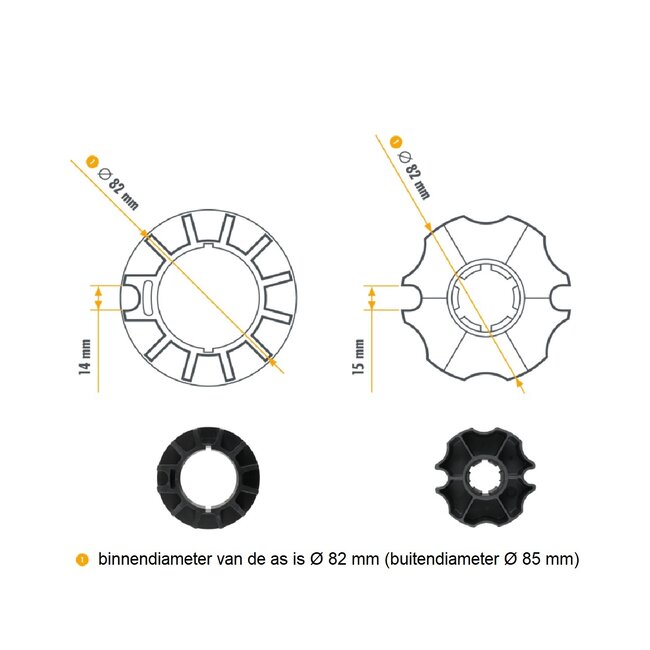

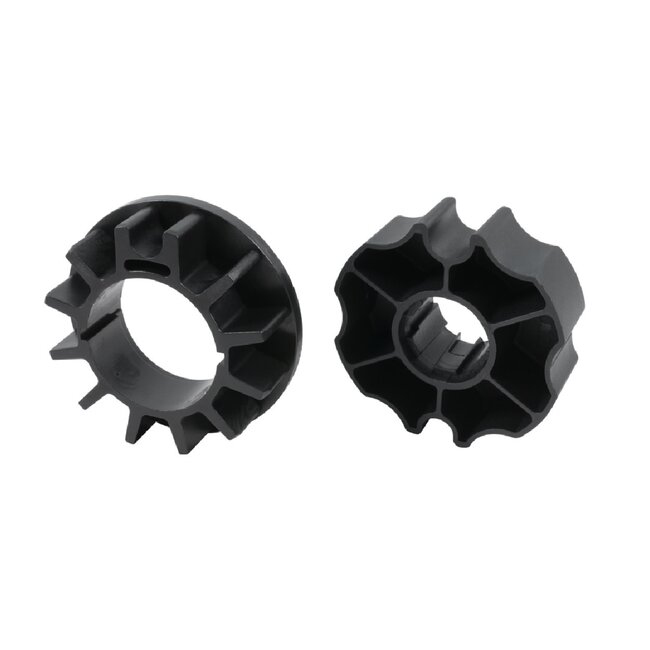

An adapter set for Nice Era M and MH tube motors consists of an adapter and carriage.
The adapter is the part on the motor wire side that makes the spindle run on motors with a mechanical adjustment.
The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.
This adapter set Ogive 85 is suitable for the Nice tube motors below, among others:
- Nice Era M
- Nice Era Quick M
- Nice Era Fit M
- Nice Era Plus M
- Nice Era Mat MA
- Nice Era Matt MT
