Elero adaptation set Ø 85 mm with cloth slot

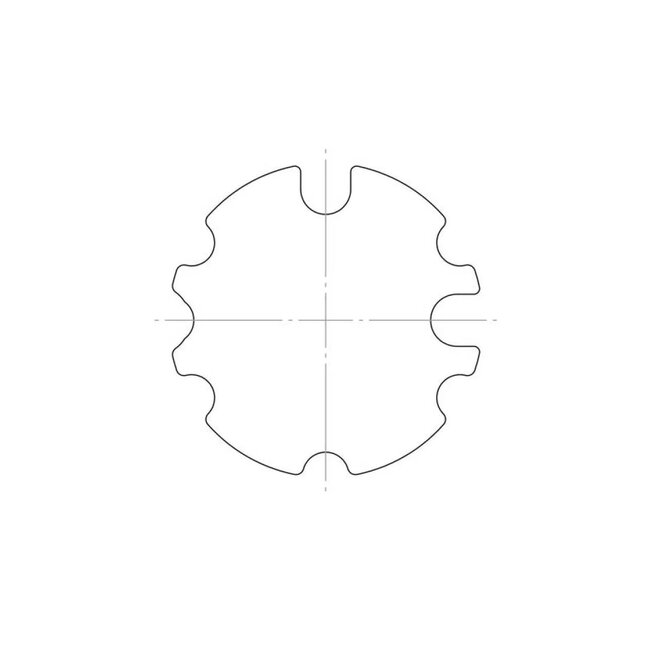

The adaptation set for a tube Ø 85 with cloth slot, suitable for the Elero type L tubular motors, the adaptation set makes it possible to adapt one of these Elero tubular motors to a tube Ø 85 with cloth slot with an outer diameter of 85 mm and a wall thickness of ± 1.2 mm, often used axle for a folding arm awning.

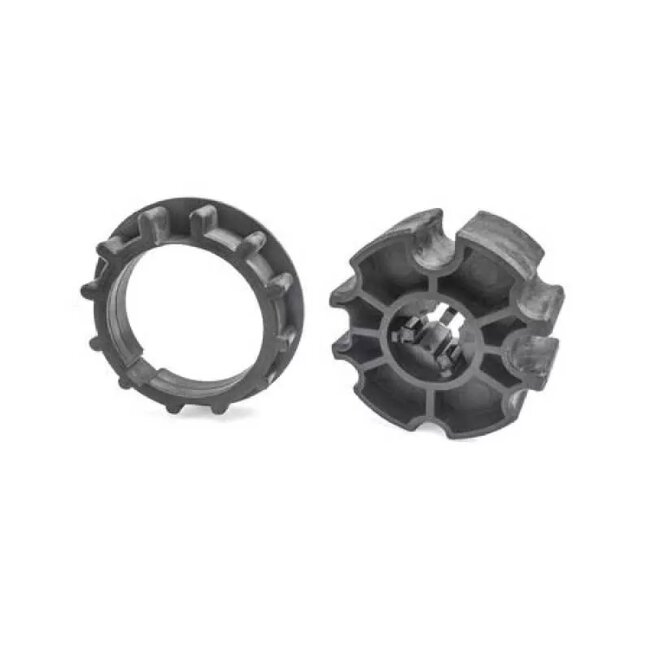

An Elero adaptation set consists of an adapter and carrier. The adapter is the part on the side of the motor thread, which ensures that the motor adjustment spindle runs on motors with a mechanical adjustment. The driver is the part on the front side of the tubular motor that forms the connection between the shaft and the tubular motor.

- Elero RolMotion L
- Elero RolSolar L
- Elero RolTop L
- Elero SunTop L
