Elero adapter set Ø 78 mm with cloth slot

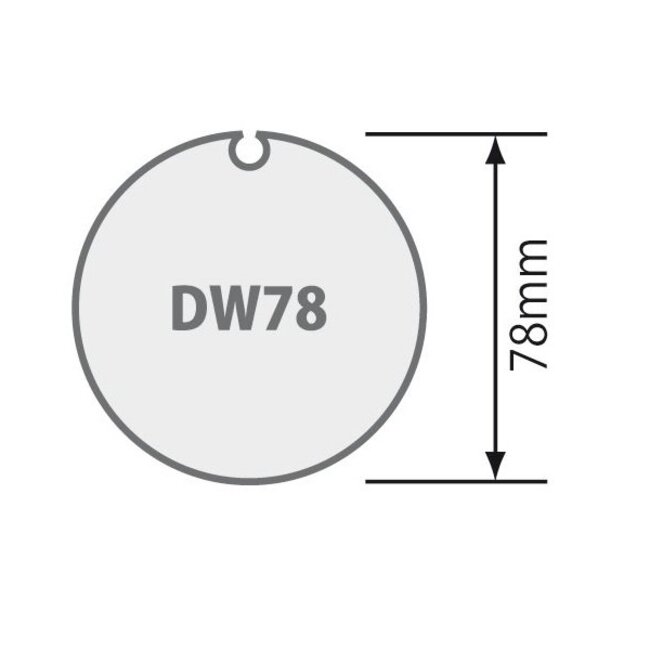

The adapter set for a Ø 78 tube with cloth groove, suitable for the Elero RolSolar, SunTop and RolTop tube motors, the adapter set makes it possible to adapt one of these Elero tube motors to a Ø 78 tube with cloth groove with an outer diameter of 78 mm and a wall thickness of ± 1 mm, the Axle/Shaft often used for an articulated sunshade.

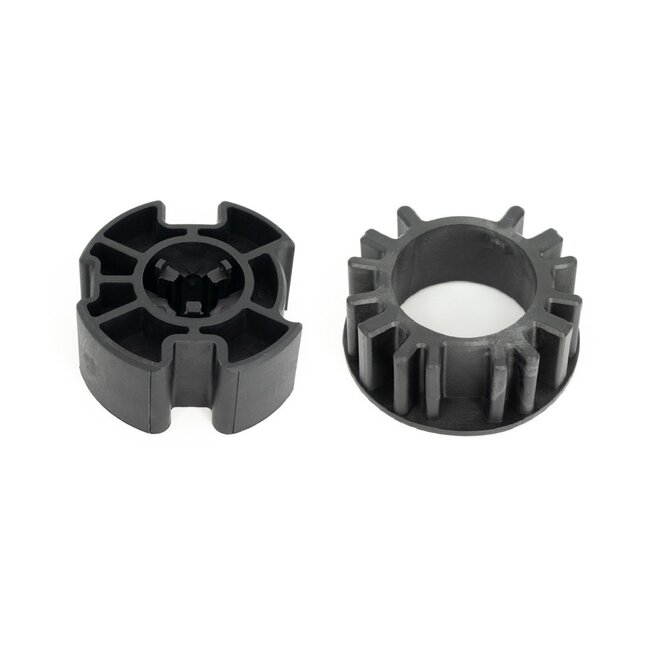

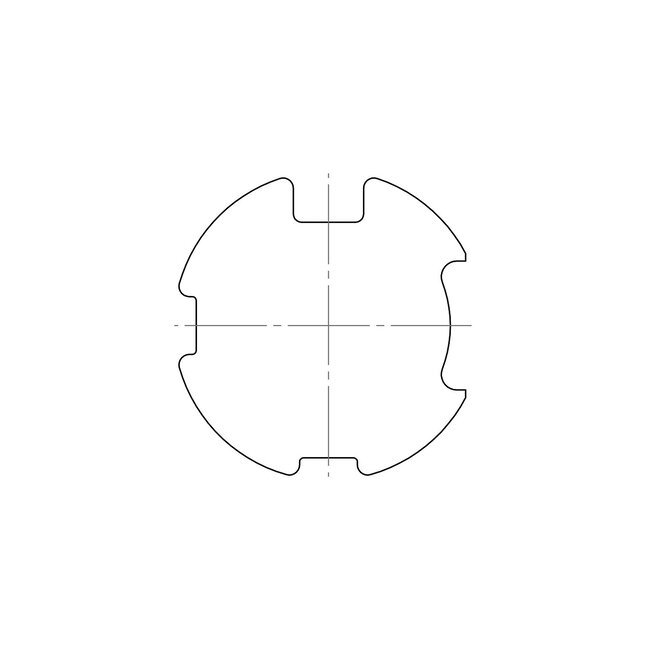

An Elero adapter set consists of an adapter and carrier. The adapter is the part on the motor wire side that makes the motor adjustment spindle run on motors with mechanical adjustment. The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.

- Elero RolMotion
- Elero RolSolar
- Elero RolTop
- Elero SunTop
