Elero adapter set 8 side 70

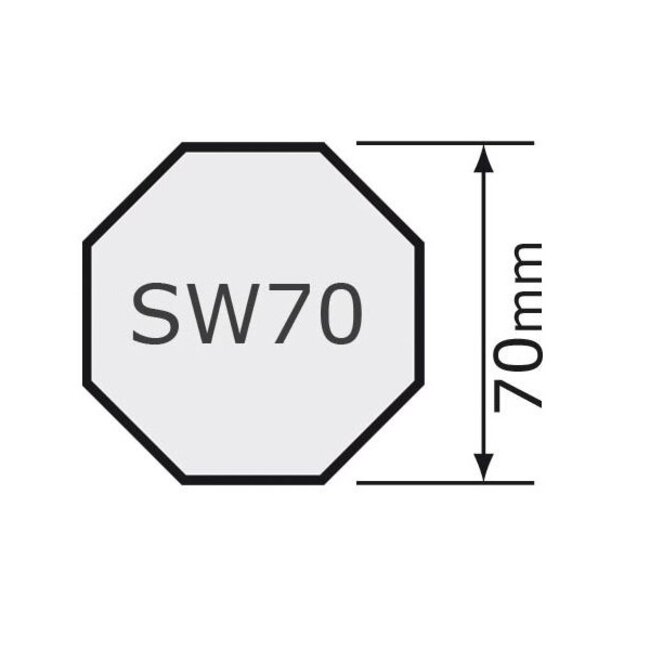

The adapter set for an octagonal 70 mm, suitable for the Elero RolMotion, RolSolar, SunTop and RolTop tube motors, the adapter set allows one of these Elero tube motors to be adapted to an 8-sided tube with an outer diameter of 70 mm (measured from flat side to flat side) and a wall thickness of 1 to 1.15 mm.

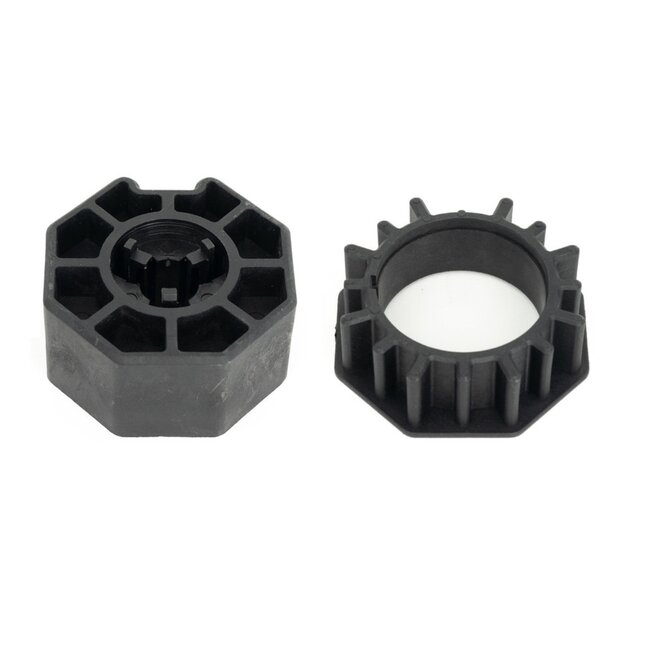

An Elero adapter set consists of an adapter and carriage. The adapter is the part on the motor wire side, which makes the motor adjustment spindle run on motors with mechanical adjustment. The carriage is the part at the head of the tubular motor that forms the connection between the Axle/Shaft and the tubular motor.

- Elero RolMotion
- Elero RolSolar
- Elero RolTop
- Elero SunTop
