Adaption set for ZF Ø 45 mm tube suitable for Cherubini 35 mm series tubular motors Read more.

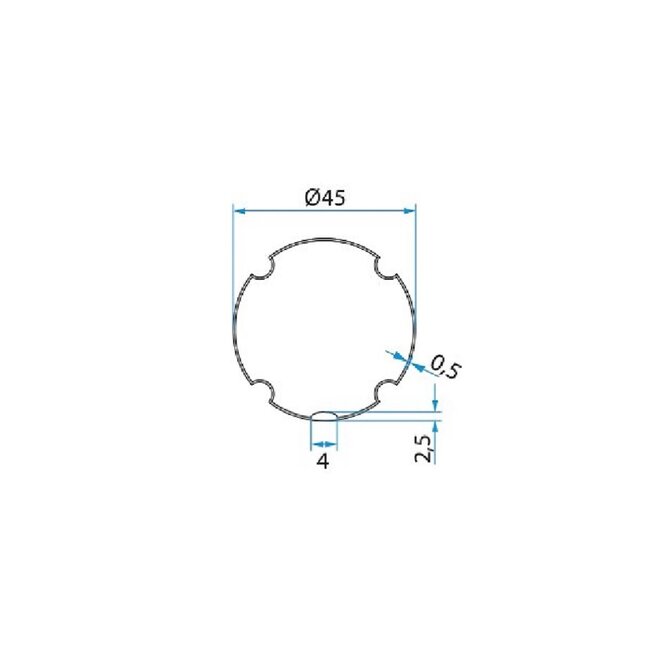

With this adapter set, you can easily make your Cherubini Ø 35 tubular motor suitable for fitting in a round 45 mm Axle/Shaft from ZF (the diameter is measured on the outside of the steel shaft) and a wall thickness of 0.5 mm.

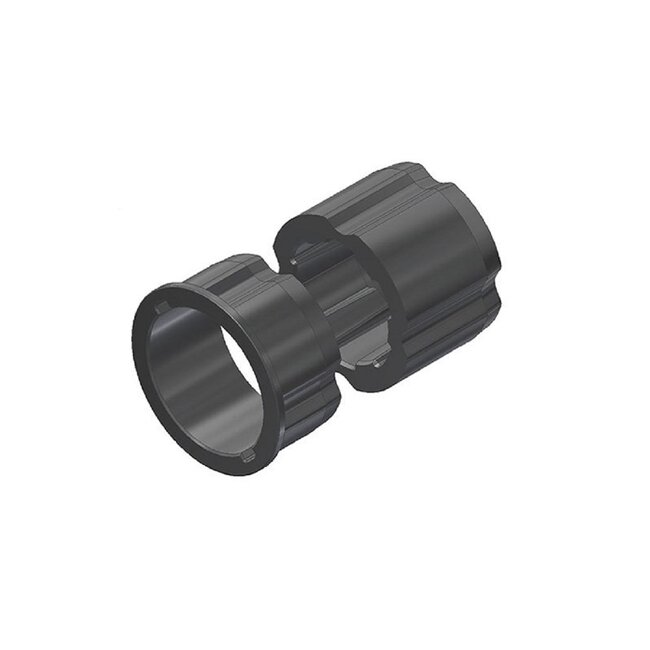

The adapter set consists of two essential components: the adapter and the carriage. The adapter is located on the motor wire side and plays a crucial role in a tubular motor because it ensures that the tubular motor's adjustment functions. On the head side of the tubular motor you will find the carrier, which is responsible for the solid connection between the Axle/Shaft and the tubular motor.
This specific adapter set for ZF Ø 45 mm Axle/Shafts is compatible with all Ø 35 mm motors from Cherubini. With this adapter set, you are guaranteed a seamless integration of your Cherubini 35 tube motor in a tube with the desired specifications. Make yourself comfortable and rely on the quality of our adapter set to make your project run smoothly.
