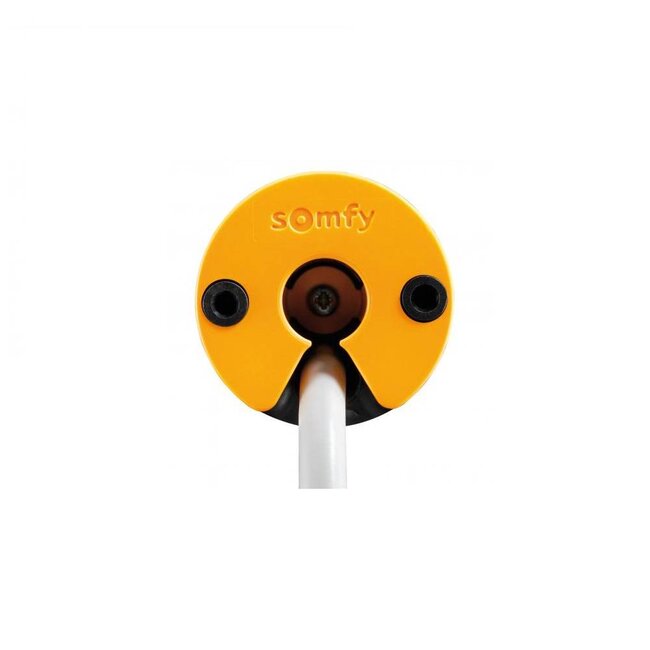

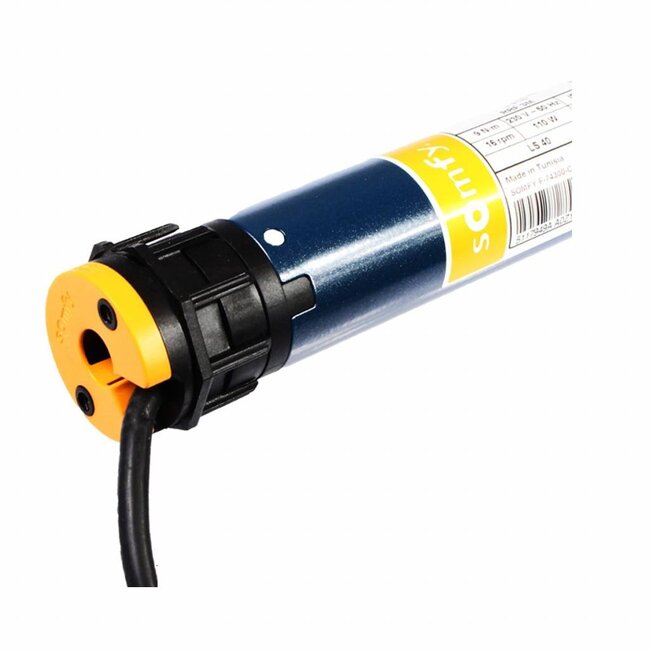

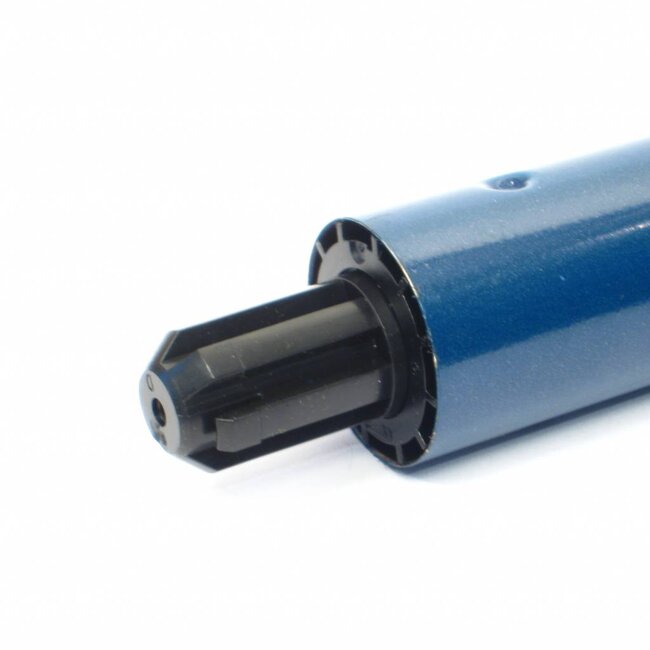

Somfy Altus 40 RTS tubular motor for Roller shutters and blinds
- Supplied without motor support and adapter set
- Tubular motor 230 V/50 Hz, with built-in high-frequency receiver
- available in 3 Nm to 13 Nm
- speed of 10, 16 and 30 rpm, speed depends on force
- receiving range: 20 metres through 2 concrete walls
- simple wireless adjustment using Telis remote control
- setting of fixed upper and lower end position
- adjustable automatic intermediate position possible
- no automatic corrections to set start and end positions

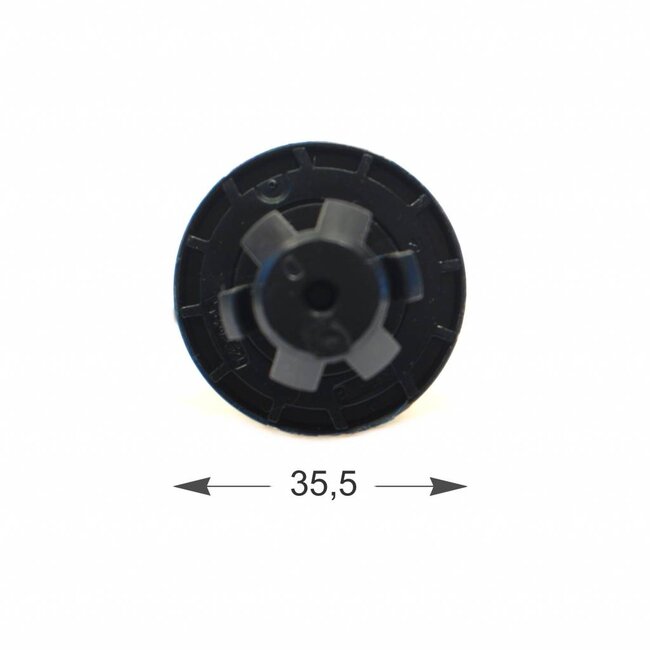

- fits in a tube with a minimum inner diameter of 37 mm
- 1 Altus RTS tubular motor can be operated wirelessly with a maximum of 12 wireless
control points and a maximum of 3 Sensors RTS
- cannot be used with relay boxes, standard switches and standard controllers
- not suitable for continuous use
- final adjustment capacity: 500 revolutions, operating time limited to 4 min.
- supplied as standard with 5 metres, 2-wire, white VVF
- double insulated according to class II and therefore not provided with an earth wire
Somfy Altus 40 RTS tubular motor is available in the following versions
- Altus 40 RTS 3/30 - 3 Nm - 30 rpm - length 520 mm
- Altus 40 RTS 4/16 - 4 Nm - 16 rpm - length 485 mm
- Altus 40 RTS 9/16 - 9 Nm - 16 rpm - length 520 mm
- Altus 40 RTS 13/10 - 13 Nm - 10 rpm - length 520 mm
Download your manuals for Somfy Altus RTS here
- adjusting and programming
- adding an extra Somfy RTS Transmitter
- adjusting end positions
- returning tube motor to factory settings
Somfy RTS tubular motors
All the advantages of wired tube motors plus the benefits of innovative RTS technology. These are the Somfy RTS tubular motors: Altus RTS, Orea RTS and Oximo RTS. Thanks to an integrated
high-frequency receiver, these motors can be controlled with remote controls and wireless wall switches, among others.
Frequency and safety
Somfy RTS applications communicate via the transmission/reception frequency 433.42 MHz. For safety reasons, Somfy transmitter/receiver technology has 16 million varying codes. Up to 12 wireless control points can be set on an RTS tubular motor. No data loss occurs during any power failure.
Flexible
One Remote control for several tubular motors? One Switch per tubular motor? Or several Remote controls and Switches for one tubular motor? With Somfy RTS technology, almost any combination between wireless control points and receiver(s) is possible. With a Telis remote control, all settings can be changed continuously, without dismantling the tubular motors.
Intermediate position
A favourite intermediate position can be set on all RTS tube motors. One push on the middle button of the remote control, for example, is then sufficient to reach this position automatically. Think of setting a 'half shade position' for sun blinds or the 'daylight opening' for Roller shutters.
Automatic operation
RTS tubular motors can also be operated automatically, for example via the 'wireless' automatic sun and wind controller Soliris Sensor RTS (for sun blinds) and via the wireless timer Telis 1 or 6 Chronis RTS (for roller shutters). An automatic sun and wind sensor opens and closes the blinds based on fully automatic sun and wind measurement and your personal preferences. With the timer, you program in advance the times you want the roller shutters to open and close. A light function is also possible here - as an extra option.
