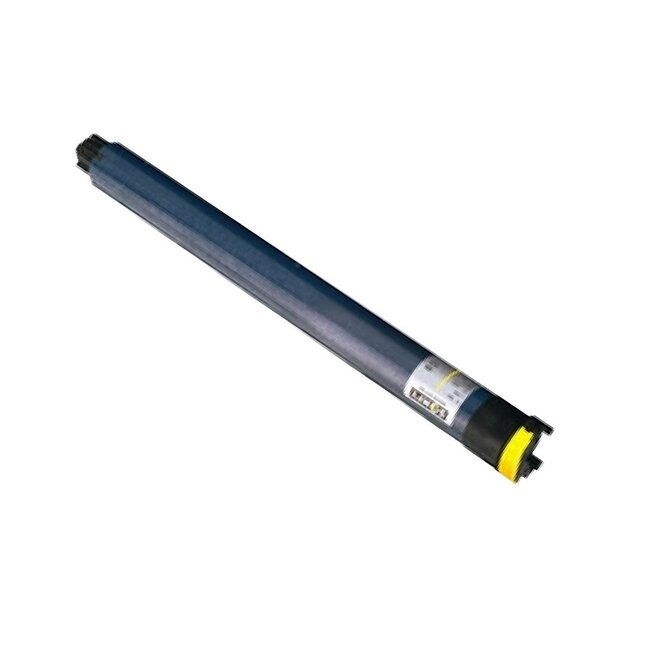

Somfy Altus 50 RoundHead RTS tubular motor for sun blinds
Somfy Altus 50 RoundHead RTS tubular motor with 17 or 32 rpm, a tubular motor with built-in RTS receiver for blinds with insufficient mechanical stop. Altus RTS works with preset positions and does not make automatic corrections to them.
- Supplied without motor support and adapter set
- Tubular motor 230 V/50 Hz, with built-in high-frequency receiver
- available in 6 Nm, 15 Nm and 25 Nm with a speed of 17 rpm
- available in 6 Nm and 15 Nm with a speed of 32 rpm
- setting of fixed upper and lower end position
- no automatic corrections to set start and end positions

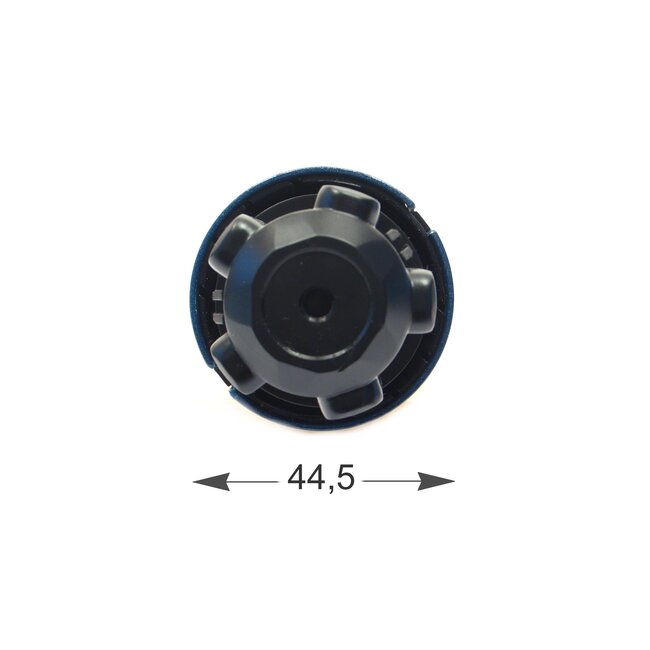

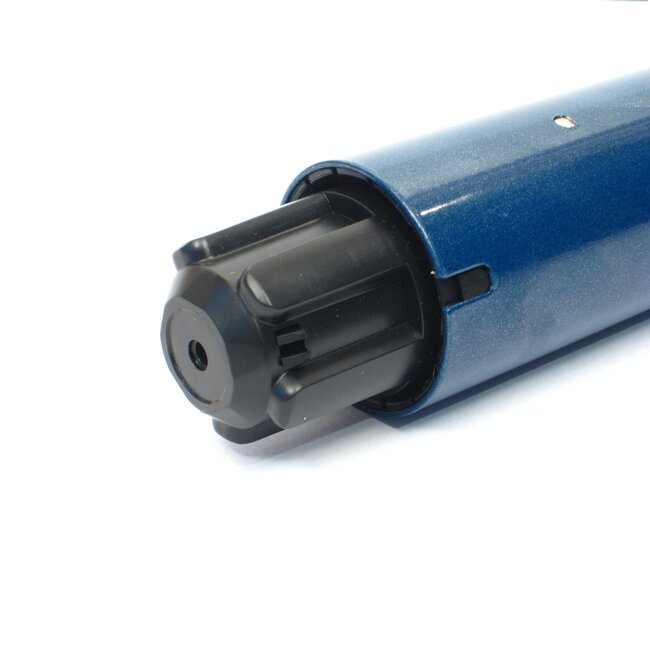

- round rather than star-shaped motor head
- quick and easy adjustment and operation with wireless RTS control
- fits in a tube with a minimum inner diameter of 47 mm
- final adjustment capacity: 250 revolutions, operating time limited to 4 min.

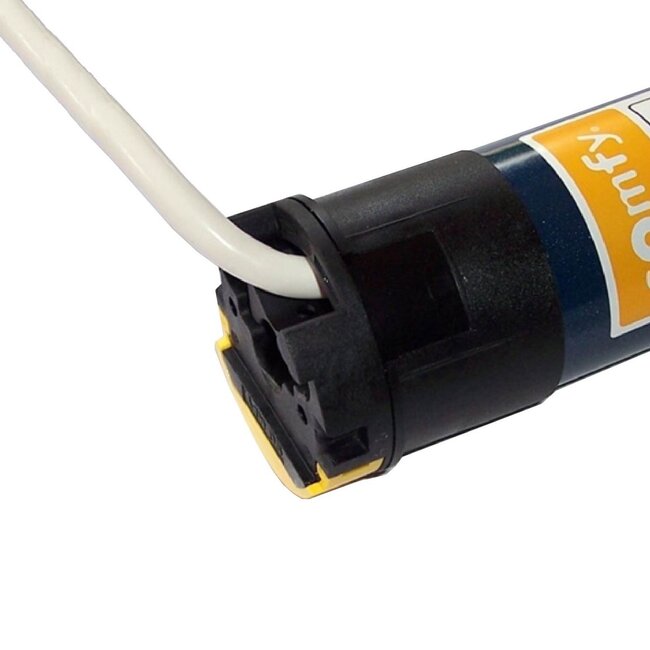

- supplied as standard with 2.5-metre, 3-wire, white VVF (the 50 Nm Motor has 5-metre cable)
- wireless sun and wind sensor Soliris Sensor RTS (sun protection)
- radio timer Chronis Comfort RTS with/without light sensor (roller shutters)
- stand-alone sun sensor Sunis WireFree Sensor RTS (sun blinds and roller shutters)
- Stand-alone wind protection Eolis 3D WireFree sensor RTS (sun blinds)
- autonomous sun sensor Sunis Indoor WireFree RTS
- autonomous sun and temperature sensor Thermosunis WireFree RTS
Somfy Altus RTS RoundHead RH is available in the following versions
- Altus RTS RH 6/17 - 6 Nm - 17 rpm - length 610 mm
- Altus RTS RH 6/32 - 6 Nm - 32 rpm - length 660 mm
- Altus RTS RH 15/17 - 15 Nm - 17 rpm - length 660 mm
- Altus RTS RH 15/32 - 15 Nm - 32 rpm - length 680 mm
- Altus RTS RH 25/17 - 25 Nm - 17 rpm - length 660 mm
Download your manuals Somfy Altus RTS here
- adjusting and programming
- adding an extra Somfy RTS Transmitter
- adjusting end position
- returning tube motor to the factory setting
Somfy RTS tubular motors
All the advantages of wired tube motors plus the benefits of innovative RTS technology. Those are the Somfy RTS tubular motors: Altus RTS, Orea RTS and Oximo RTS. Thanks to an integrated
high-frequency receiver, these motors can be controlled with remote controls and wireless wall switches, among others.
Frequency and safety
Somfy RTS applications communicate via the transmission/reception frequency 433.42 MHz. For safety reasons, Somfy transmitter/receiver technology has 16 million varying codes. Up to 12 wireless control points can be set on an RTS tubular motor. No data loss occurs during any power failure.
Flexible
One Remote control for several tubular motors? One Switch per tubular motor? Or several Remote controls and Switches for one tubular motor? With Somfy RTS technology, almost any combination between wireless control points and receiver(s) is possible. With a Telis remote control, all settings can be changed continuously, without dismantling the tubular motors.
Intermediate position
A favourite intermediate position can be set on all RTS tube motors. One push on the middle button of the remote control, for example, is then sufficient to reach this position automatically. Think of setting a 'half shade position' for sun blinds or the 'daylight opening' for Roller shutters.
Automatic operation
RTS tubular motors can also be operated automatically, for example via the 'wireless' automatic sun and wind controller Soliris Sensor RTS (for sun blinds) and via the wireless timer Telis 1 or 6 Chronis RTS (for roller shutters). An automatic sun and wind sensor opens and closes the blinds based on fully automatic sun and wind measurement and your personal preferences. With the timer, you program in advance the times you want the roller shutters to open and close. A light function is also available as an optional extra.
