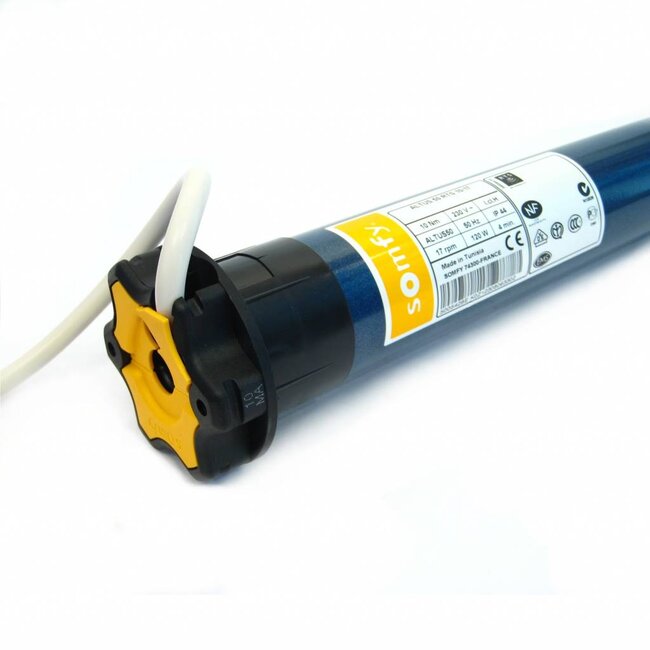

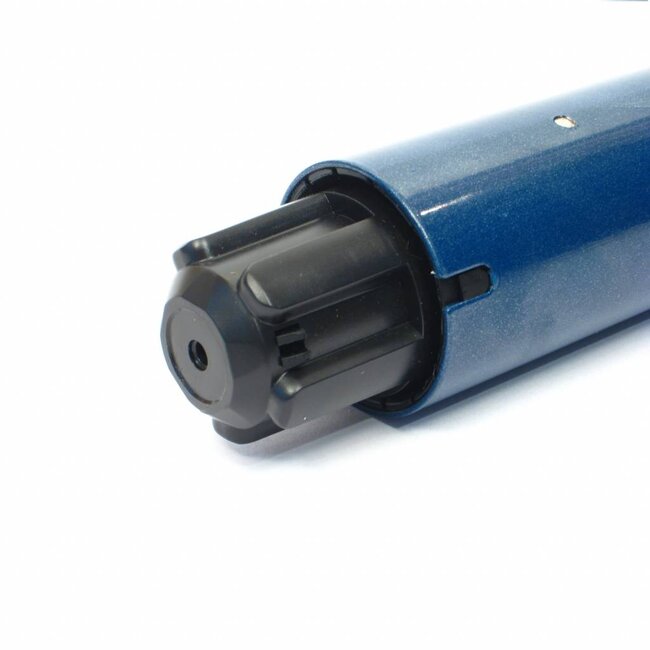

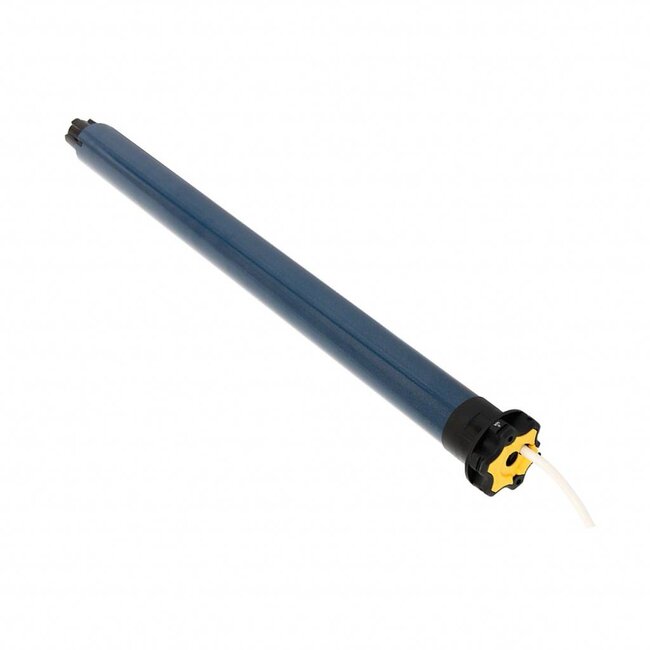

Somfy Altus 50 RTS tubular motor for roller shutters and awnings

The Somfy Altus RTS is a tubular motor that is being phased out by Somfy Netherlands. Certain power options may no longer be available. If you do not see the "add to cart" button, it means that the combination of power and speed for the Somfy Altus 50 RTS tube motor is no longer available. In that case, you can always choose a force that is higher.

Somfy Altus 50 RTS tubular motor with 12, 17 or 32 rpm, a tubular motor with built-in RTS receiver for blinds and roller shutters with insufficient mechanical stop. Altus RTS works with preset positions and does not make automatic corrections to them.

- Supplied without motor support and adapter set
- Tubular motor 230 V/50 Hz, with built-in high-frequency receiver
- available in 6 Nm to 50 Nm with a speed of 12 rpm
- available in 6 Nm to 40 Nm with a speed of 17 rpm
- available in 6 Nm, 10 and 15 Nm with a speed of 32 rpm
- motors with 32 rpm are only available per 4 on order and cannot be returned
- setting of fixed upper and lower end position
- no automatic corrections to set start and end positions
- quick and easy adjustment and operation with wireless RTS control point, e.g. Telis remote control
- one Altus RTS tubular motor can be operated wirelessly with max. 12 RTS transmitters and max. 3 RTS sensors

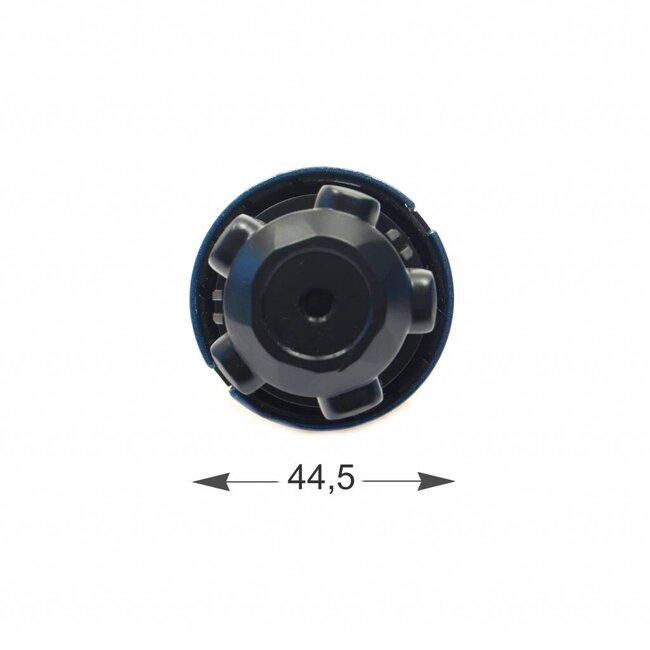

- fits in a tube with a minimum inner diameter of 47 mm
- final adjustment capacity: 250 revolutions, operating time limited to 4 min.
- supplied as standard with 2.5-metre, 3-wire, white VVF (the 50 Nm Motor has 5-metre cable)
- wireless sun and wind sensor Soliris Sensor RTS (sun protection)
- radio timer Chronis Comfort RTS with/without light sensor (roller shutters)
- stand-alone sun sensor Sunis WireFree Sensor RTS (sun blinds and roller shutters)
- Stand-alone wind protection Eolis 3D WireFree sensor RTS (sun blinds)
- autonomous sun sensor Sunis Indoor WireFree RTS
- autonomous sun and temperature sensor Thermosunis WireFree RTS

Somfy Altus 50 RTS tubular motor is available in the following versions
- Altus 50 RTS 6/12 - 6 Nm - 12 rpm - 90 Watt - length 613 mm
- Altus 50 RTS 6/17 - 6 Nm - 17 rpm - 90 Watt - length 613 mm
- Altus 50 RTS 6/32 - 6 Nm - 32 rpm - 120 Watt - length 663 mm
- Altus 50 RTS 10/12 - 10 Nm - 12 rpm - 120 Watt - length 613 mm
- Altus 50 RTS 10/17 - 10 Nm - 17 rpm - 120 Watt - length 663 mm
- Altus 50 RTS 10/32 - 10 Nm - 32 rpm - 160 W - length 663 mm
- Altus 50 RTS 15/17 - 15 Nm - 17 rpm - 140 W - length 663 mm
- Altus 50 RTS 20/12 - 20 Nm - 12 rpm - 160 W - length 663 mm
- Altus 50 RTS 20/17 - 20 Nm - 17 rpm - 160 W - length 663 mm
- Altus 50 RTS 25/17 - 25 Nm - 17 rpm - 170 W - length 663 mm
- Altus 50 RTS 30/12 - 30 Nm - 12 rpm - 240 W - length 663 mm
- Altus 50 RTS 30/17 - 30 Nm - 17 rpm - 240 W - length 683 mm
- Altus 50 RTS 35/17 - 35 Nm - 17 rpm - 240 Watt - length 683 mm
- Altus 50 RTS 40/12 - 40 Nm - 12 rpm - 270 Watt - length 683 mm
- Altus 50 RTS 40/17 - 40 Nm - 17 rpm - 270 Watt - length 753 mm
- Altus 50 RTS 50/12 - 50 Nm - 12 rpm - 270 Watt - length 683 mm

Download your manuals Somfy Altus RTS here
- adjusting and programming
- adding an extra Somfy RTS Transmitter
- adjusting end position
- returning tube motor to the factory setting

Somfy RTS tubular motors
All the advantages of wired tube motors plus the benefits of innovative RTS technology. Those are the Somfy RTS tubular motors: Altus RTS, Orea RTS and Oximo RTS. Thanks to an integrated
high-frequency receiver, these motors can be controlled by remote controls and wireless wall switches, among others.

Frequency and safety
Somfy RTS applications communicate via the transmission/reception frequency 433.42 MHz. For safety reasons, Somfy transmitter/receiver technology has 16 million varying codes. Up to 12 wireless control points can be set on an RTS tubular motor. No data loss occurs during any power failure.

Flexible
One Remote control for several tubular motors? One Switch per tubular motor? Or several Remote controls and Switches for one tubular motor? With Somfy RTS technology, almost any combination between wireless control points and receiver(s) is possible. With a Telis remote control, all settings can be changed continuously, without dismantling the tubular motors.

Intermediate position
A favourite intermediate position can be set on all RTS tube motors. One push on the middle button of the remote control, for example, is then sufficient to reach this position automatically. Think of setting a 'half shade position' for sun blinds or the 'daylight opening' for Roller shutters.

Automatic operation
RTS tubular motors can also be operated automatically, for example via the 'wireless' automatic sun and wind controller Soliris Sensor RTS (for sun blinds) and via the wireless timer Telis 1 or 6 Chronis RTS (for roller shutters). An automatic sun and wind sensor opens and closes the blinds based on fully automatic sun and wind measurement and your personal preferences. With the timer, you program in advance the times you want the roller shutters to open and close. A light function is also possible here - as an extra option.

Back to all Somfy RTS motors
