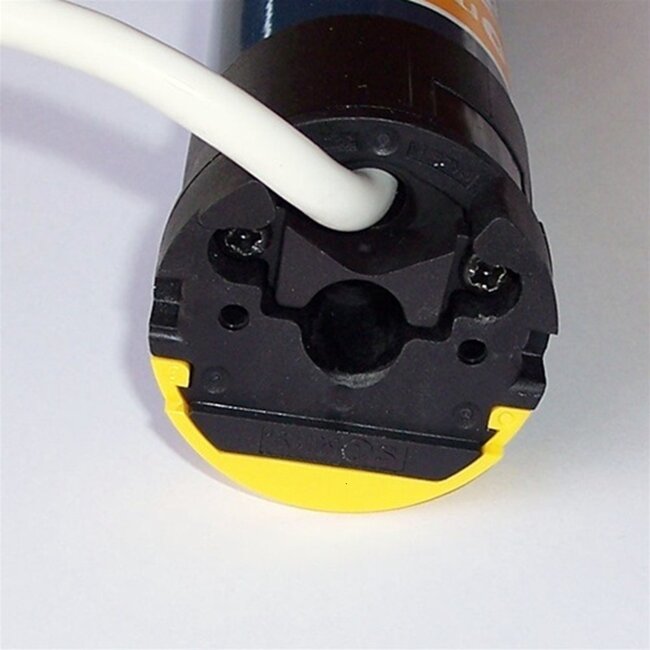

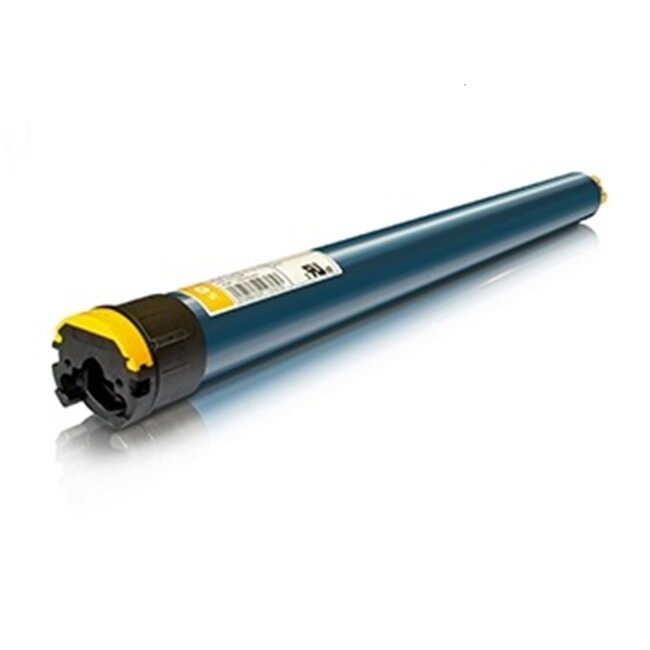

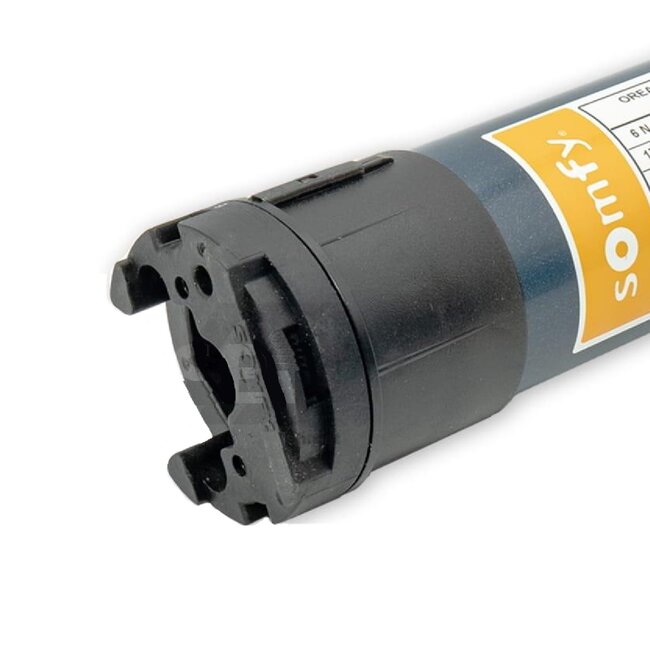

Somfy Altus 50 WT RH

The Somfy Altus 50 WT RoundHead is a corded tubular motor for screens without a mechanical stop. This shading motor has an electronic final adjustment that can be set using a Somfy adjustment cable. With the RoundHead motor head, the screen fabric can be rolled up smoothly over the motor head, providing a seamless experience.

Available in both 6 Nm, 15 Nm and 25 Nm variants, the Somfy Altus 50 WT RH offers the perfect level of power and performance for various applications. Choose this motor and experience the ultimate synergy between technology and design, powering your screens effortlessly and stylishly.

- Motor support and adapter kit not included.

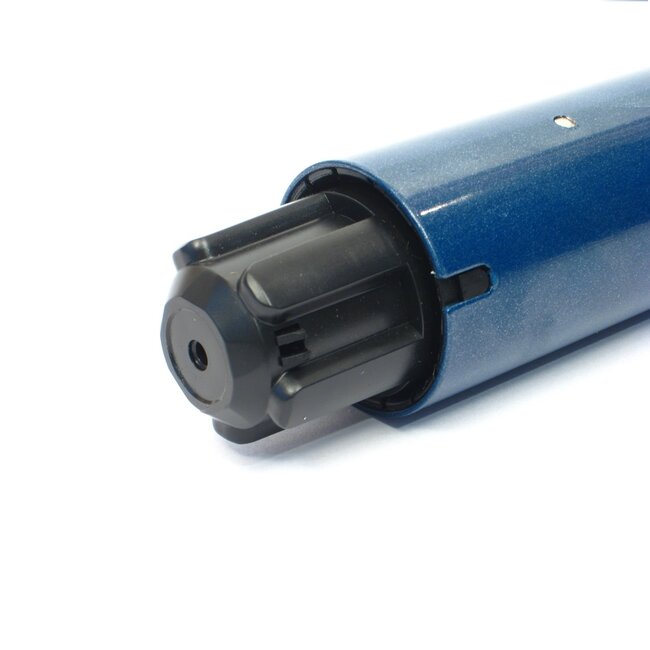

- no star-shaped "Somfy head", but with a round motor head
- available in 6, 15 and 25 Nm
- speed depending on force 32 or 17 rpm
- power supply 230 V/50 Hz
- perfect motor for screens without mechanical stops
- adjustment without access to the motor head, using Somfy universal adjustment cable
- parallel connection of several motors possible

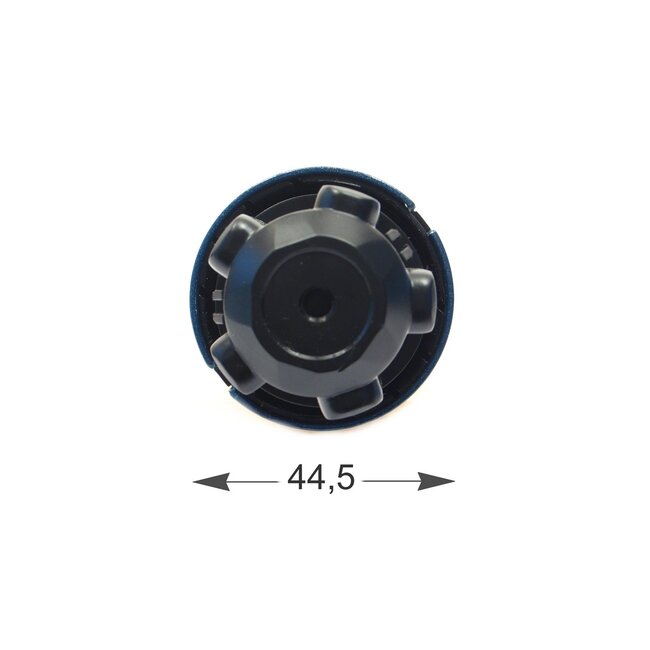

- Altus 50 series fits into a tube with a minimum inner diameter of 47 mm
- final adjustment capacity: 250 revolutions
- running time limited to 4 minutes
- not suitable for continuous operation
- supplied as standard with a white 4-wire (VVF) cable, length 3 metres
- removable cable, makes installation easier

Type Somfy Altus 50 WT RH tubular motors
- Somfy Altus 50 WT RH 6/32 - 6 Nm - 32 rpm - length 660 mm
- Somfy Altus 50 WT RH 15/32 - 15 Nm - 32 rpm - length 680 mm
- Somfy Altus 50 WT RH 25/17 - 25 Nm - 17 rpm - length 660 mm
