Somfy Altus 60 RTS tubular motor for Roller shutters and blinds
- Motor support and adapter set not included in delivery
- power supply 230 Volt
- tube motor with integrated RTS receiver
- available in 55 Nm to 120 Nm
- setting of fixed upper and lower end position
- no automatic corrections to set start and end position
- quick and easy adjustment and operation with an RTS remote control, such as Situo RTS

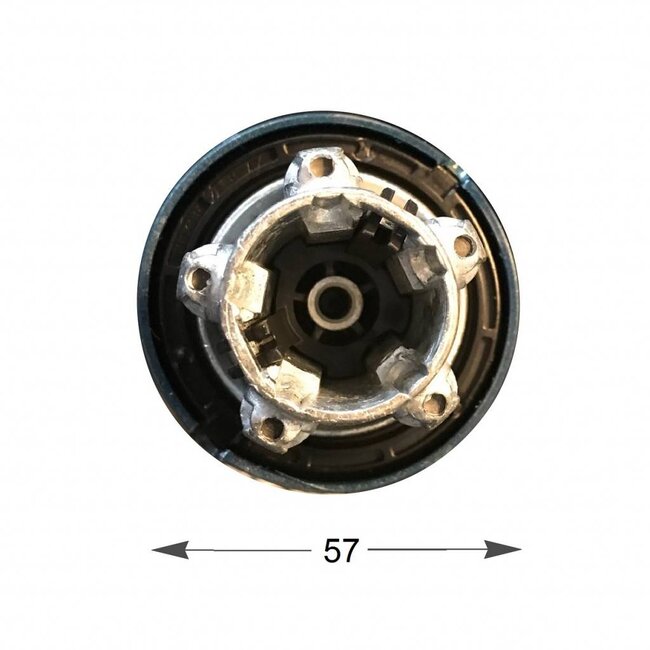

- fits in a tube with a minimum inner diameter of 60 mm
- end adjustment capacity: 200 revolutions, operating time limited to 4 min.
- supplied as standard with a white 3-wire (VVF) cable, length 5 m
- recommended RTS controllers:
- wireless sun and wind controller Soliris Sensor RTS (sun blinds)
- radio timer Chronis Comfort RTS with/without light sensor (roller shutters)
- autonomous sun sensor Sunis WireFree Sensor RTS (sun blinds and roller shutters)
- Stand-alone wind protection Eolis 3D WireFree sensor RTS (sun blinds)
- autonomous sun sensor Sunis Indoor WireFree RTS
- autonomous sun and temperature sensor Thermosunis WireFree RTS
Somfy Altus 60 RTS tubular motor is available in the following models
- Altus 60 RTS 55/17 - 55 Nm - 17 rpm - length 740 mm
- Altus 60 RTS 70/17 - 70 Nm - 17 rpm - length 740 mm
- Altus 60 RTS 85/17 - 85 Nm - 17 rpm - length 740 mm
- Altus 60 RTS 100/12 - 100 Nm - 12 rpm - length 740 mm
- Altus 60 RTS 120/12 - 120 Nm - 12 rpm - length 740 mm
Download your manuals for Somfy Altus RTS here
- adjusting and programming
- adding an extra Somfy RTS Transmitter
- adjusting end positions
- returning tube motor to factory settings
Somfy RTS tubular motors
All the advantages of wired tube motors plus the benefits of innovative RTS technology. These are the Somfy RTS tubular motors: Altus RTS, Orea RTS and Oximo RTS. Thanks to an integrated
high-frequency receiver, these motors can be controlled with remote controls and wireless wall switches, among others.
Frequency and safety
Somfy RTS applications communicate via the transmission/reception frequency 433.42 MHz. For safety reasons, Somfy transmitter/receiver technology has 16 million varying codes. Up to 12 wireless control points can be set on an RTS tubular motor. No data loss occurs during any power failure.
Flexible
One remote control for several tubular motors? One Switch per tubular motor? Or several Remote controls and Switches for one tubular motor? With Somfy RTS technology, almost any combination between wireless control points and receiver(s) is possible. With a Telis remote control, all settings can be changed continuously, without dismantling the tubular motors.
Intermediate position
A favourite intermediate position can be set on all RTS tube motors. One push on the middle button of the remote control, for example, is then sufficient to reach this position automatically. Think of setting a 'half shade position' for sun blinds or the 'daylight opening' for Roller shutters.
Automatic operation
RTS tubular motors can also be operated automatically, for example via the 'wireless' automatic sun and wind controller Soliris Sensor RTS (for sun blinds) and via the wireless timer Telis 1 or 6 Chronis RTS (for roller shutters). An automatic sun and wind sensor opens and closes the blinds based on fully automatic sun and wind measurement and your personal preferences. With the timer, you program in advance the times you want the roller shutters to open and close. A light function is also available as an optional extra.
