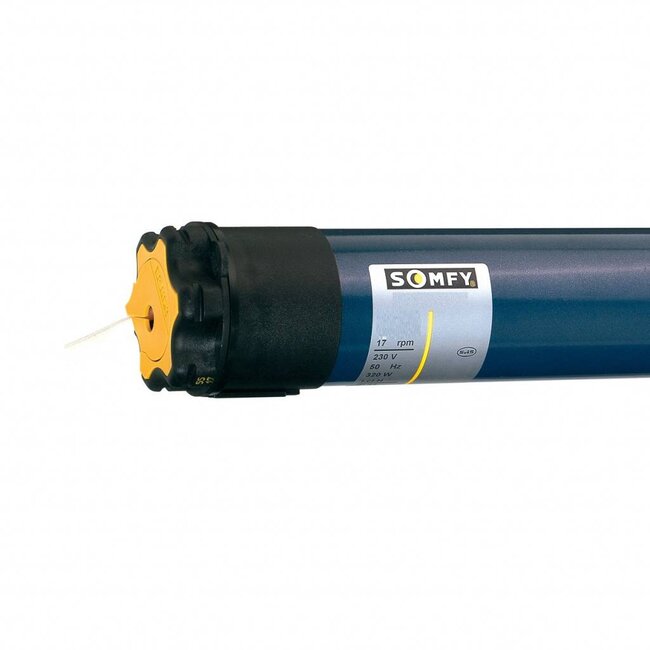

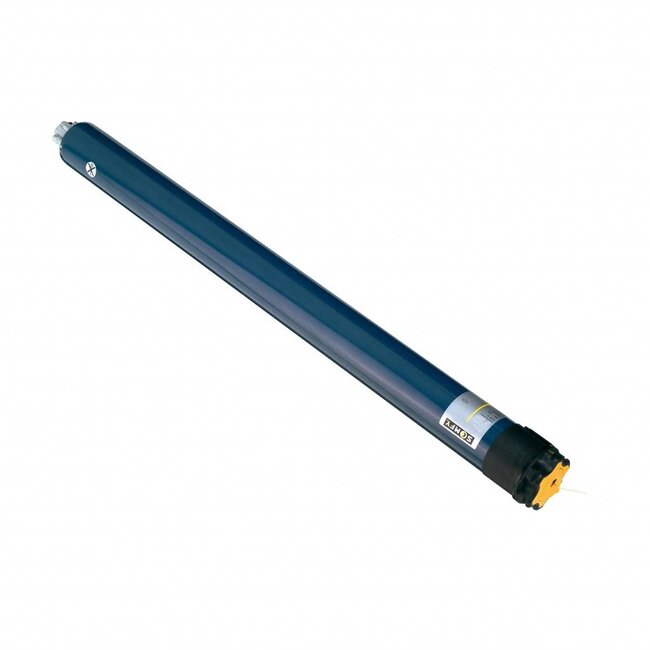

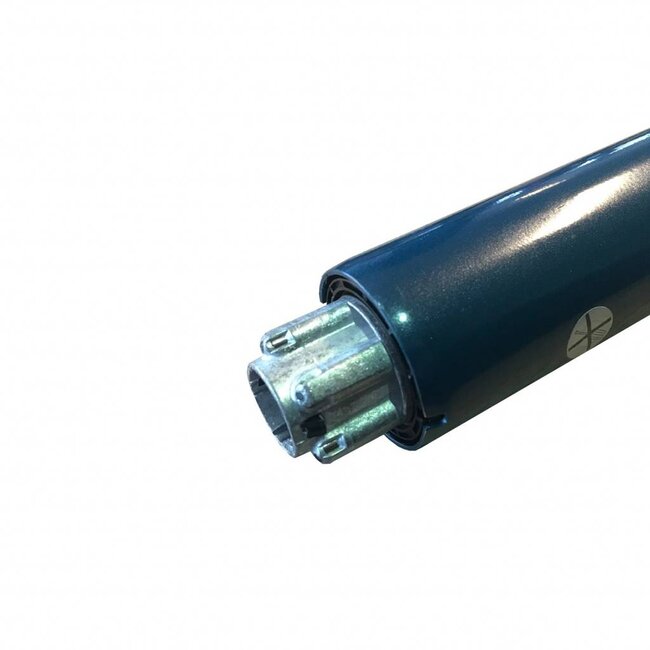

Somfy Altus RS 60 io tubular motor for Roller shutters
Somfy Altus RS 60 io is the standard Motor with integrated receiver for Roller shutters with insufficient mechanical stop. The Somfy Altus RS io works with preset positions and makes no corrections to them.
- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz, with built-in high-frequency Somfy io receiver
- available in 55 to 120 Nm

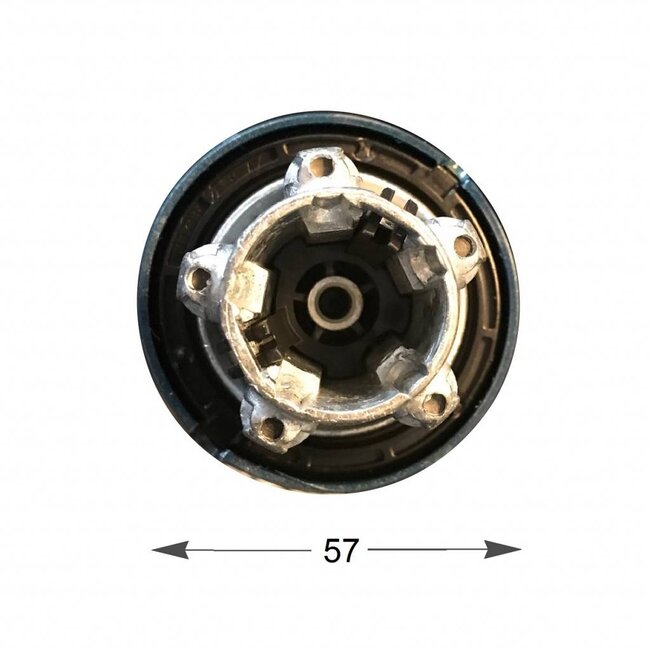

- Altus RS 60 io series fits in a tube with a minimum inner diameter of 60 mm
- speed 17 rpm for 55, 70 and 85 Nm
- speed 12 rpm for 100 and 120 Nm
- total motor length 740 mm
- receiving range: 20 metres through 2 concrete walls, can be doubled by using a
repeater
- simple wireless adjustment using remote control or Set&Go io
- possibility of combination with wireless timer (Chronis io or Nina Timer io)
- adjustable automatic intermediate position possible
- one Altus RS io tubular motor can be controlled wirelessly with up to 9 local controls
(1-way) and an infinite number of group controls (2-way).
- not applicable with relay boxes, standard switches and standard controllers
- controllable with all Somfy io-commandments and io-controllers
- not suitable for continuous use and in combination with free-wheel systems (ABS)
- capacity of final adjustment, operating time limited to 3 min

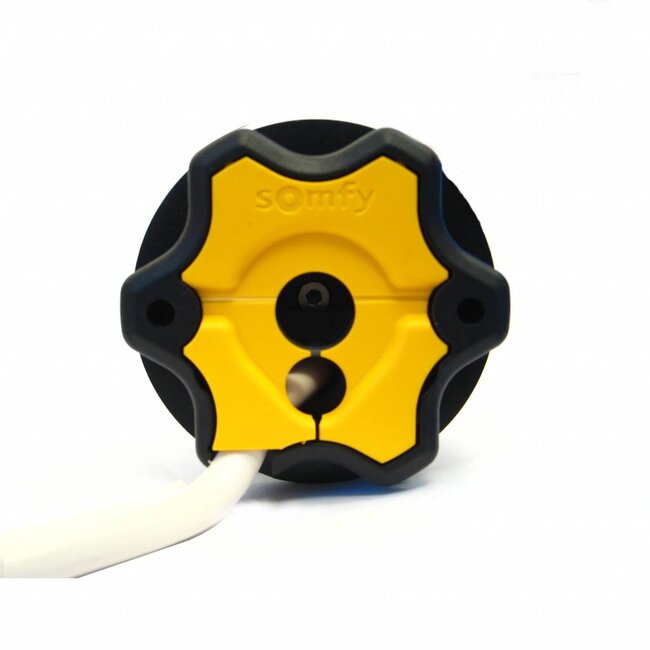

- supplied as standard with a white 3-wire (VVF) cable, length 5 m. Axial and radial
cord output
Somfy Altus RS 60 io tubular motor is available in the following versions
- Altus RS 60 io 55/17 - 55 Nm - 17 rpm - length 740 mm
- Altus RS 60 io 70/17 - 70 Nm - 17 rpm - length 740 mm
- Altus RS 60 io 85/17 - 85 Nm - 17 rpm - length 740 mm
- Altus RS 60 io 100/12 - 100 Nm - 12 rpm - length 740 mm
- Altus RS 60 io 120/12 - 120 Nm - 12 rpm - length 740 mm
io-homecontrol® - the intelligent solution for maximum home comfort
io-homecontrol® controls the entire house, i.e. not only Roller shutters, blinds and garage doors but also the front door, skylights, windows, heating, lighting and ventilation. The 2-way radio technology informs the user, is operationally reliable and becomes the new standard on the market.
Somfy io-homecontrol® tubular motors
These motors have all the advantages of existing RTS motors + the benefits offered by io-homecontrol. An extensive range of motors will be available in 2017. These motors can be controlled by any io-homecontrol® 1-way or 2-way control. We recommend programming a local control (1-way) per motor. On the 2-way remote controls or in the app, the consumer receives feedback on whether the requested command was executed or other information that makes it easy for him to understand the operation.
Frequency and safety
2-way io-homecontrol® products can communicate on 3 different frequencies between 868 and 870 MHz. If the frequency used is not free, it is automatically switched to another frequency. The 1-way products only communicate on the 868 MHz frequency. Power failure does not affect stored data.
Flexibility
The 1-way remote controls are designed to control one Motor. The 2-way controls are group or central controls where the consumer receives feedback via an LED, via pictograms, via text or via sound. Sun and wind sensors operate the products automatically. Automatic operation can easily be blocked using the Smoove 1 A/M io, a Situo 5 VAR A/M io or in the app.
