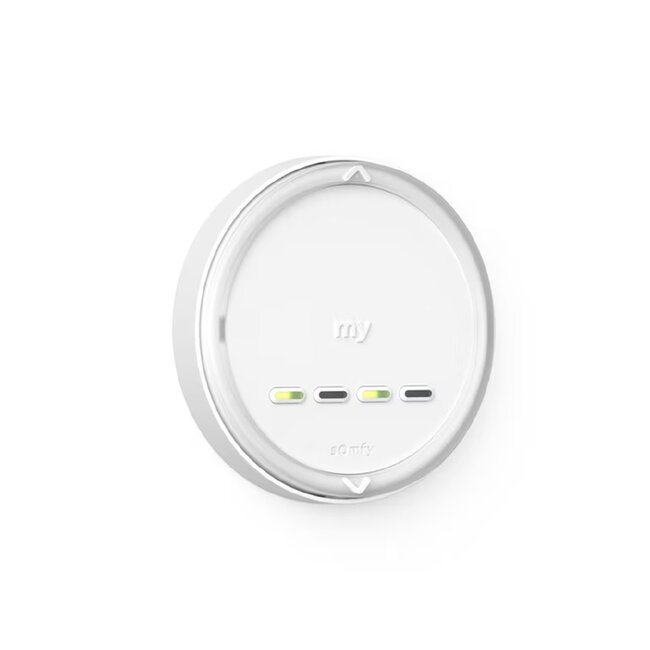

Somfy Amy 4 modes io round

Newly designed 4-channel wall switch for controlling four blinds or product groups. One versatile model in stock, suitable for various applications. With four adjustable modes that can be adapted to the specific application, such as Roller shutters, heating or lighting.

- Somfy io-homecontrol® technology
- frequency 868 - 870 MHz
- number of channels 4
- fixing with 2 screws (not included) or with the 2 supplied adhesive strips
- colour white - Pure
- wireless range in open field ± 100 m
- protection class IP 20
- dimensions Ø 71 mm
- weight 46 g
- battery included
- 3 Volt CR 2032 battery
- battery life 5 years at 2 up/down cycles per day
- operating temperature 0 °C - 48 °C
- storage temperature -20 °C - 60 °C

The difference between standard Amy and Amy mode, with the "Modes" function adjusts the control of the Switch to the type of product connected:

• Mode 1: For operating Roller shutters, Screens, windows, garage doors and gates (opening/closing with a short press).
• Mode 2: To control lighting and heating (adjust intensity with a long press, switch on/off with a short press).
• Mode 3: For operating exterior blinds (BSO) (tilting slats with a long press, opening/closing with a short press).
• Mode 4: For operating blinds with tilting slats (tilting slats with a long press, opening/closing with a short press).

To select the desired mode, press the MODE button on the back of the wireless Switch several times in quick succession.
