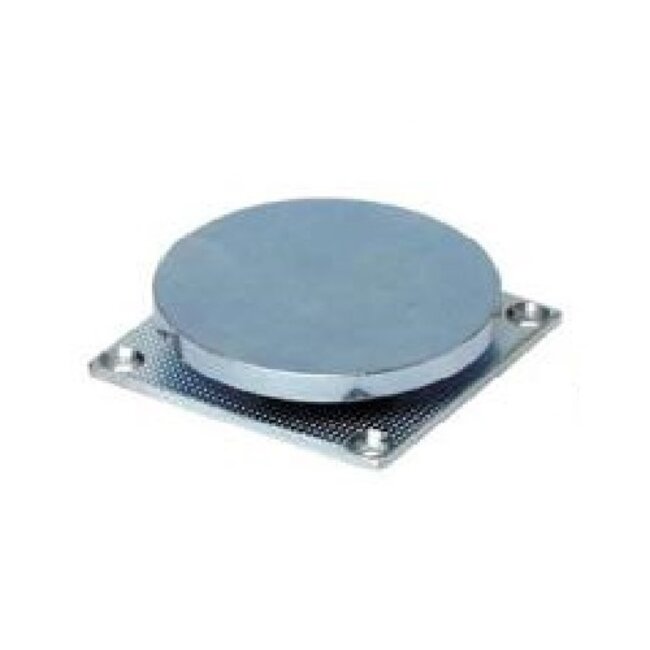

GT60R005 anchor plate with steel mounting plate

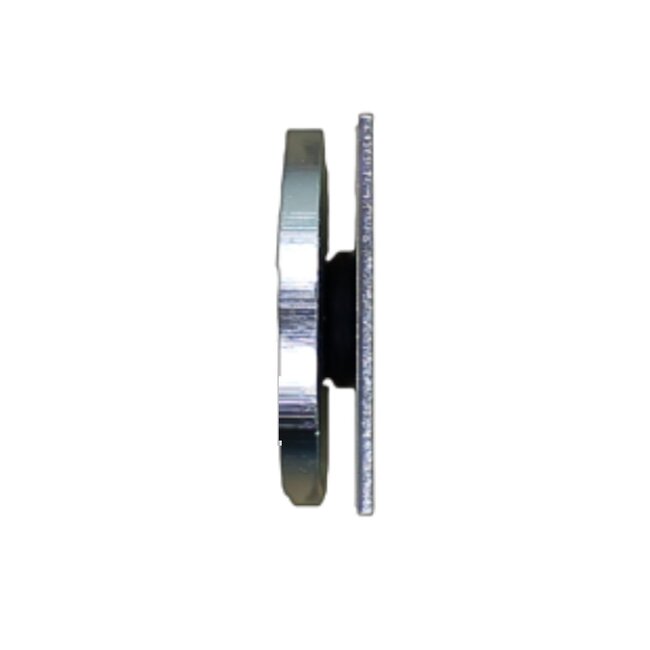

The anchor plate, mounted on the door, provides an electro magnetic connection between the magnet and the door. The connection between the mounting flange and the anchor plate consists of a ball joint, allowing the anchor plate to align itself on all sides at an angle of up to 5 degrees to the pole surface of the magnet

- steel mounting plate
- anchor plate diameter Ø 65 mm
- anchor plate height 20 mm
- anchor plate dimensions 55 x 55 mm
- adjustable by a maximum of 5 degrees
