Article number
4066
EAN Code
7432257592527
SKU
678854

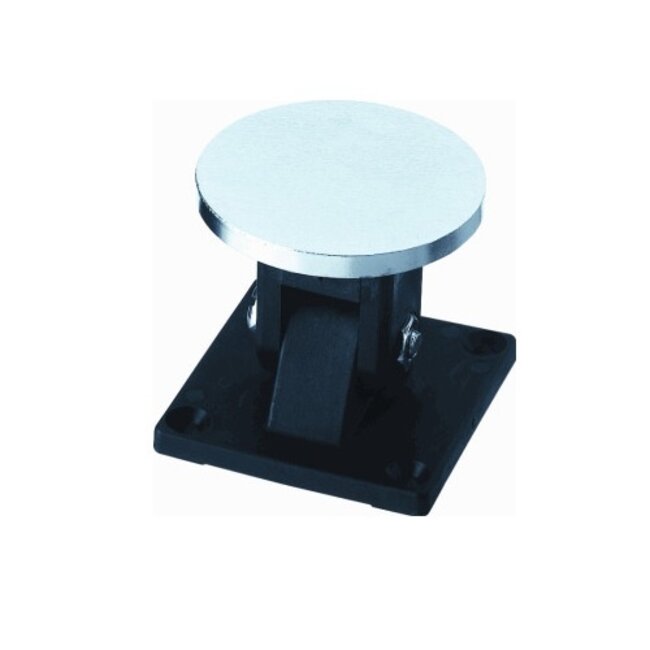

Anchor plate flexible GT70R006 with a diameter of Ø 75 mm and an adjustable base of up to 60 degrees Read more.
The anchor plate, mounted on the door, provides an electro magnetic connection between the magnet and the door. The connection between the mounting flange and the anchor plate consists of an adjustable ball joint, allowing the anchor plate to align itself on all sides at an angle of up to 60 degrees to the pole surface of the magnet.
- anchor plate diameter Ø 75 mm
- height of flexible foot 56 mm
- plastic mounting plate 75x75 mm
- adjustable angle of 60 degrees
