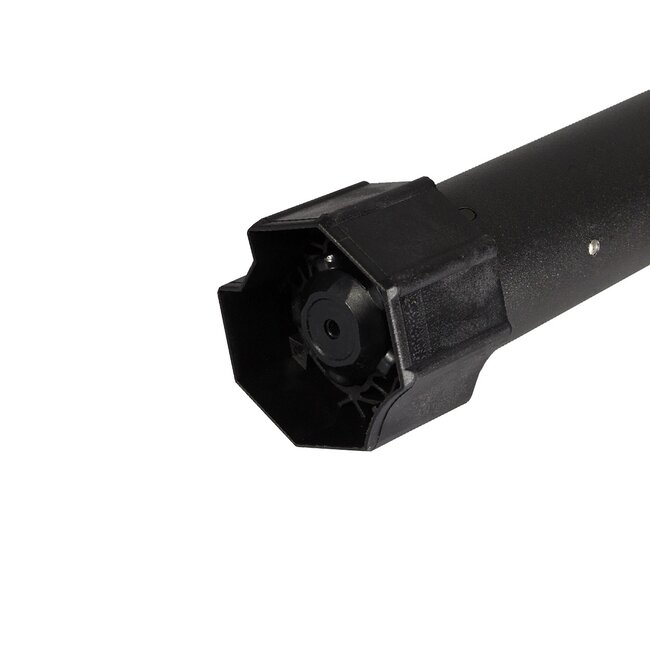

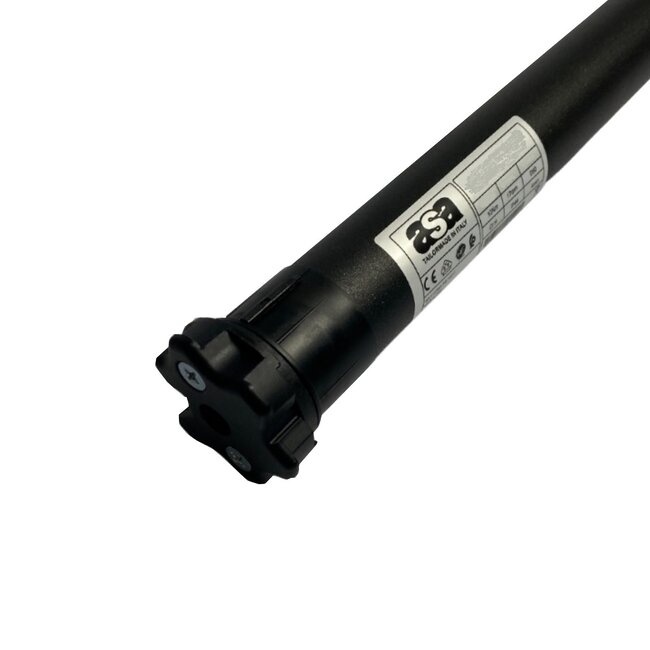

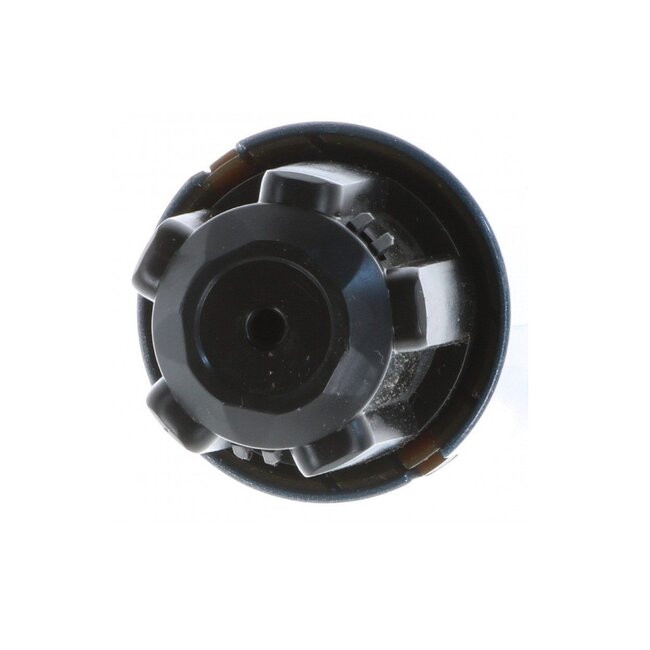

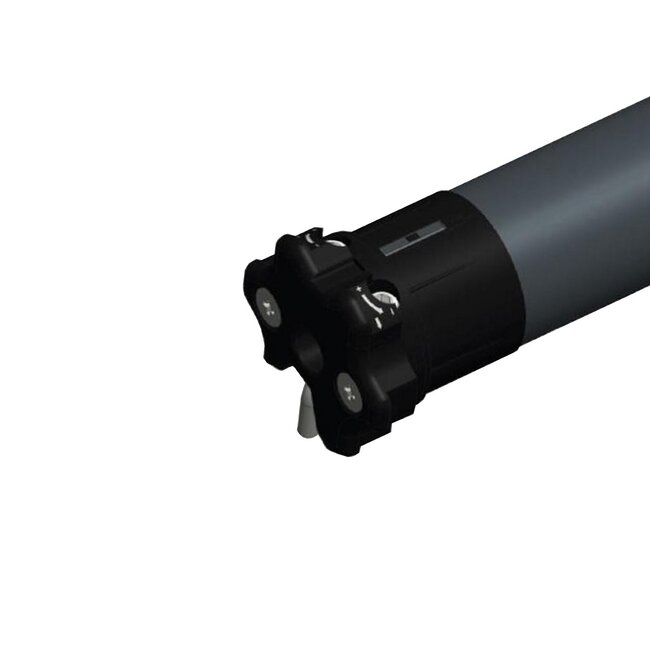

Asa Da Vinci 50 ST tubular motor
Asa
Asa

Asa Da Vinci 50 ST tubular motor

ASA Da Vinci 50 ST tubular motor Ø50 with mechanical limit switch suitable for roller shutters, screens and awnings, successor to Asa CD40 and CD45 tubular motors Read more.

  • Affiliated to Home shopping guarantee
  • Fast delivery Delivery within 2 working days
  • Free shipping when spending €100 (in NL)

Product description

Asa Da Vinci 50 ST tubular motor with mechanical limit switch

- suitable for blinds and roller shutters
- successor of the Asa CD40 and CD45 tubular motors
- will be delivered without motor support and adapter set
- not suitable for the adapters of the old Asa motors
- compatible with all Somfy adapters for the LT50 series
- tubular motor with a diameter of Ø 45
- mechanical end adjustment
- tubular motor 230 V/50 Hz
- speed 17 and 12 rpm
- available in 6 to 50 Nm
- 4-core white cable with a length of 2.5 metres
- tubular motor fits in tube with a minimum diameter of Ø 50 mm
- not suitable for continuous use.

Type Asa Da Vinci 50 ST tubular motors
- Asa Da Vinci 50 ST 6 Nm - 17 rpm, 100 Watt, length 523 mm
- Asa Da Vinci 50 ST 10 Nm - 17 rpm, 120 W, length 523 mm
- Asa Da Vinci 50 ST 15 Nm - 17 rpm, 150 W, length 523 mm
- Asa Da Vinci 50 ST 20 Nm - 17 rpm, 190 W, length 573 mm
- Asa Da Vinci 50 ST 25 Nm - 17 rpm, 200 W, length 573 mm
- Asa Da Vinci 50 ST 30 Nm - 17 rpm, 240 W, length 573 mm
- Asa Da Vinci 50 ST 40 Nm - 17 rpm, 240 W, length 573 mm
- Asa Da Vinci 50 ST 45 Nm - 12 rpm, 240 Watt, length 573 mm
- Asa Da Vinci 50 ST 50 Nm - 12 rpm, 240 Watt, length 573 mm

Specifications

Article number
3999
EAN Code
7432257585543
SKU
15 106 06-000
Motor series
Asa Da Vinci 50 ST
Cable
4-core white cable with a length of 2.5 metres
Supply voltage
230 V - 50 Hz
Maximum duration
10 cycles per day
Protection class
IP44
Ambient temperature
-10 °C to 40 °C and exceptionally -20 °C to 60 °C
Thermal protection
4 minutes
Revolutions
11 rpm and 24 rpm
Capacity final adjustment
46 revolutions
Emergency manual
