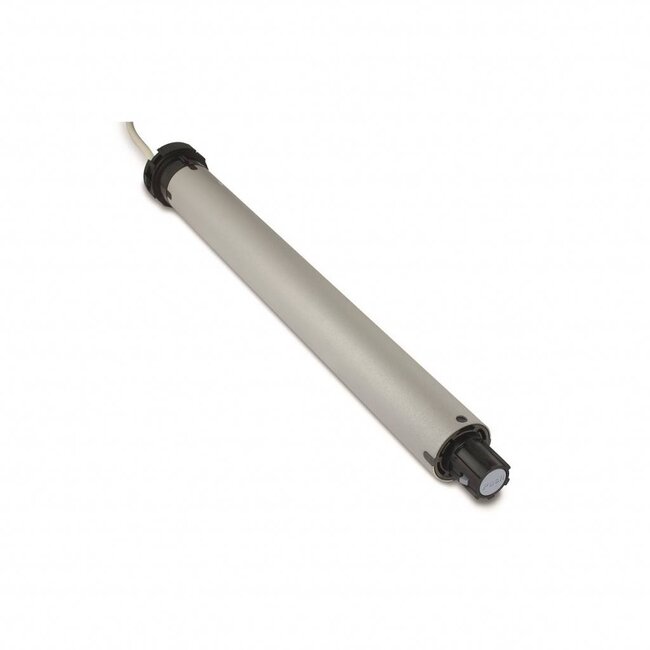

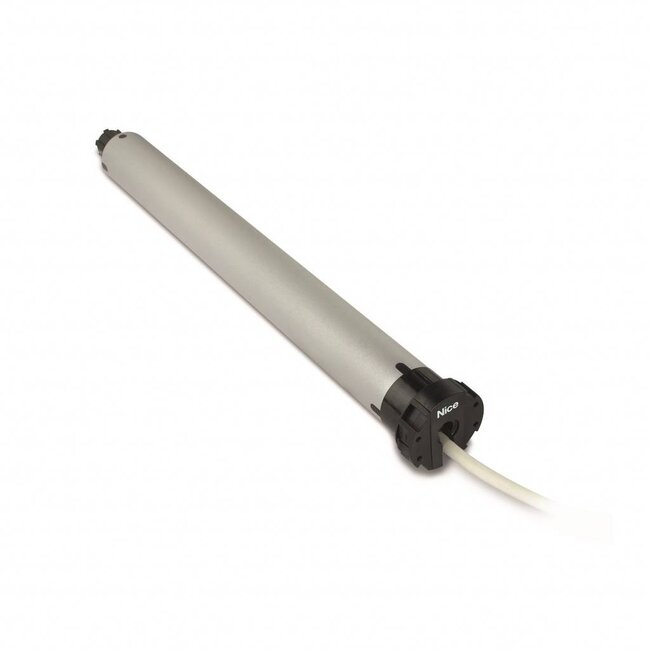

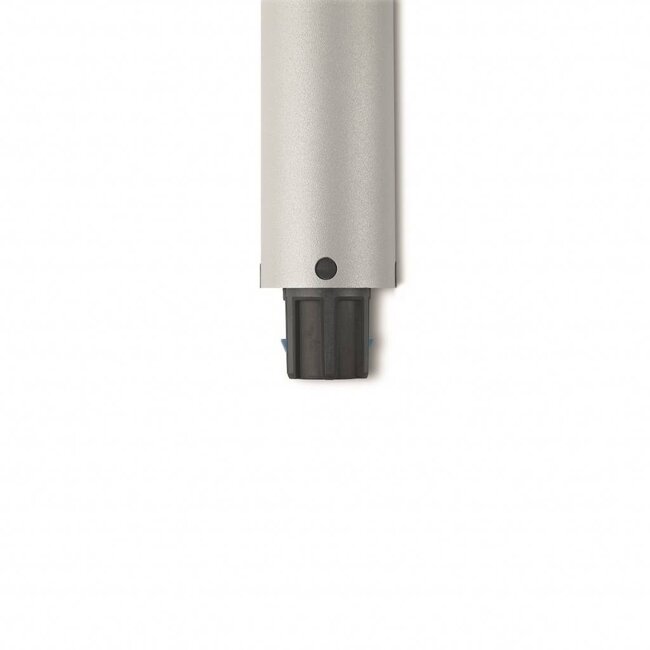

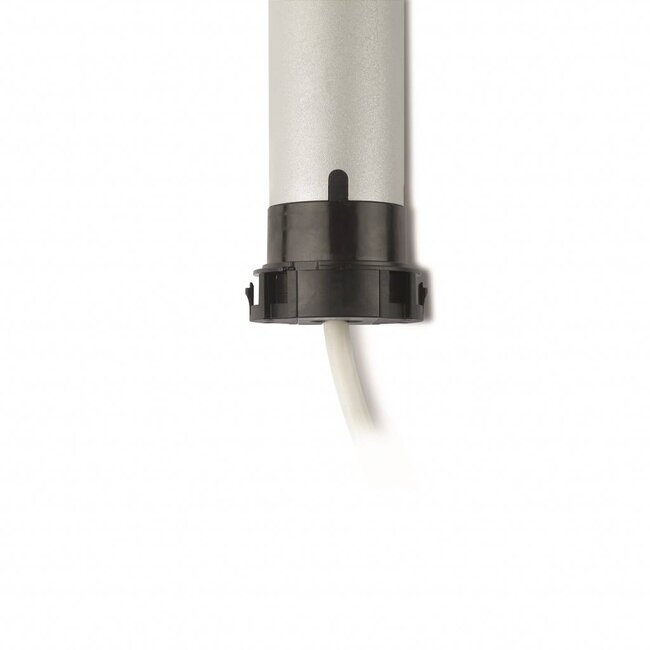

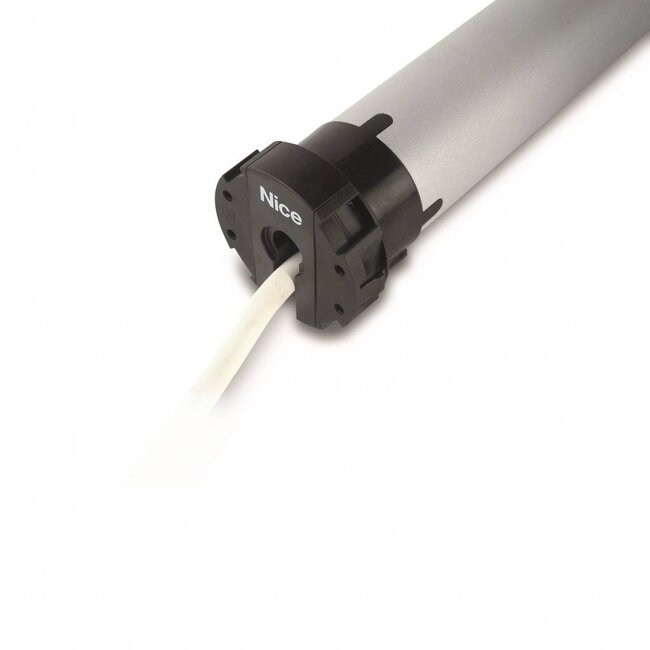

Nice Era Mat MT tubular motor with electronic limit switch adjustment, integrated receiver and TTBus technology

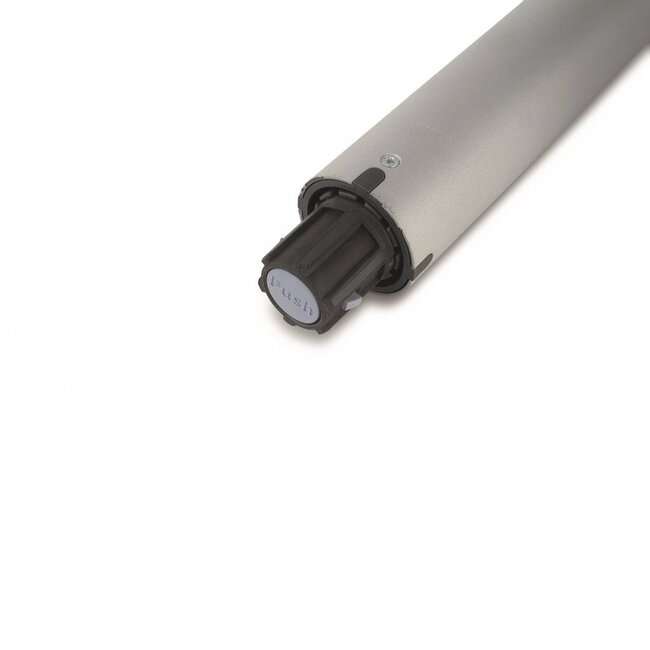

Easy adjustment of the limit switch using push-button adjustment and via the hand-held transmitter or the external programming units O-View TT and TTPRO
If an error is made during adjustment, programming starts again from the previous level without reprogramming all settings programmed up to that point.
Thanks to Nice TTBus 3-wire technology, the tubular motor can be controlled by low-voltage, simple and intuitive wired connection to climate sensors without an external control box or Handheld transmitter.
The built-in circuit board allows several motors to be connected in parallel and controlled from a single control point without the need for a control box.
Roller shutter motor particularly suitable for narrow and small roller shutters, motors from 8 Nm with a length of 426 mm, up to larger systems with the 50 Nm and 12 rpm.
FTC specific function for screens with blocking mechanism and automatic hook-up, this function allows setting two end positions for hook-up and unhooking procedures.
FTA specific function for screens with blocking mechanism and manual hooking. Guarantees correct fabric tension at one or more points where the manual locking mechanism is positioned.

- Successor to the ForMaxT and NeoMatMT series
- suitable for sunshades
- electronic final adjustment and integrated receiver
- tubular motor is equipped with TTBus technology
- simple setting of an intermediate position

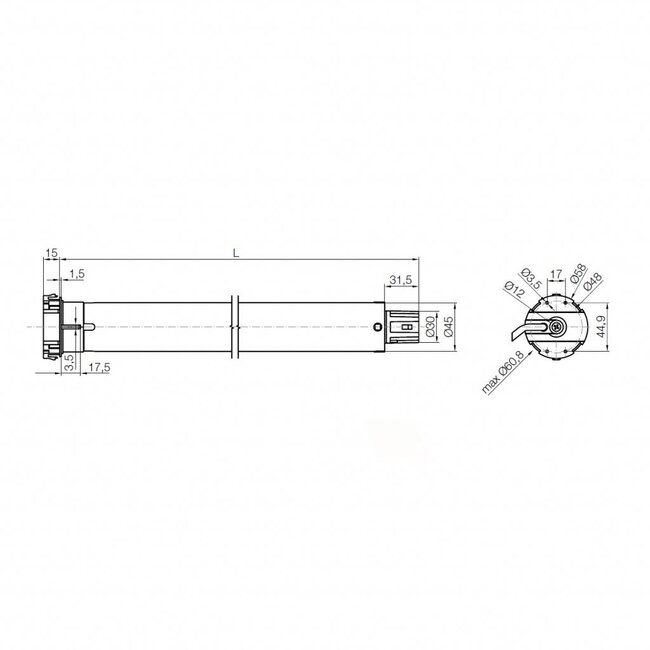

- Nice M series tubular motor with a diameter of Ø 45 mm
- supplied without motor support and adapter set
- tube motor 230 V/50 Hz
- speed 12 rpm and 17 rpm
- available in 8 to 50 Nm

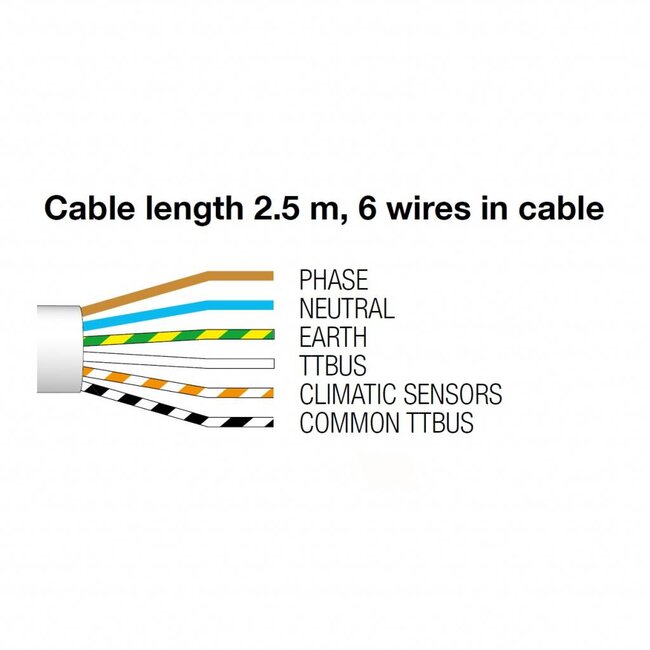

- 6-core white cable with a length of 2.5 metres
- tubular motor fits in tube with a minimum inner diameter of 50 mm
- not suitable for continuous use

Type Nice Era Mat MT tube motors
- Nice Era Mat MT 8 Nm - 17 rpm - length 426 mm
- Nice Era Mat MT 15 Nm - 17 rpm - length 451 mm
- Nice Era Mat MT 30 Nm - 17 rpm - length 486 mm
- Nice Era Mat MT 40 Nm - 12 rpm - length 486 mm
- Nice Era Mat MT 50 Nm - 12 rpm - length 486 mm

Need a new tubular motor for old type starting with XM and ending with 3T
- XM150003T - For Max T 8 --> Nice Era Mat MT 8/17
- XM280003T - For Max T 15 --> Nice Era Mat MT 15/17
- XM560003T - For Max T 30 --> Nice Era Mat MT 30/17
- XM750003T - For Max T 40 --> Nice Era Mat MT 40/12
- XM930003T - For Max T 50 --> Nice Era Mat MT 50/12
