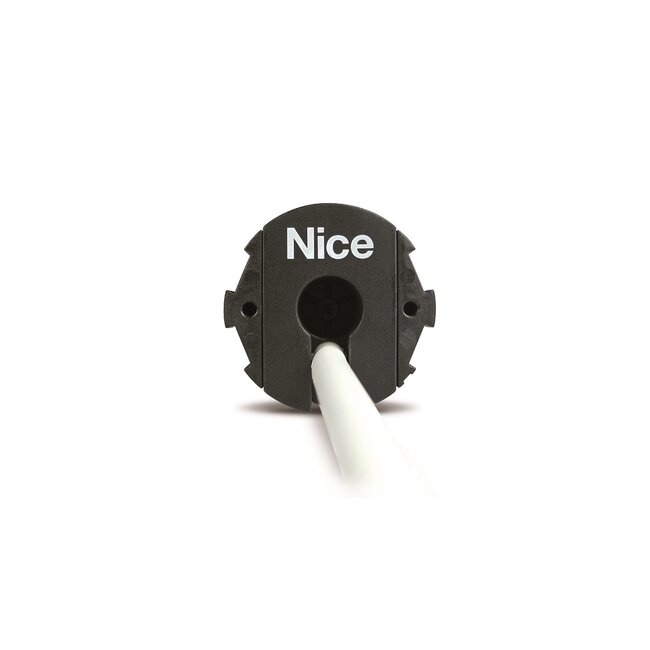

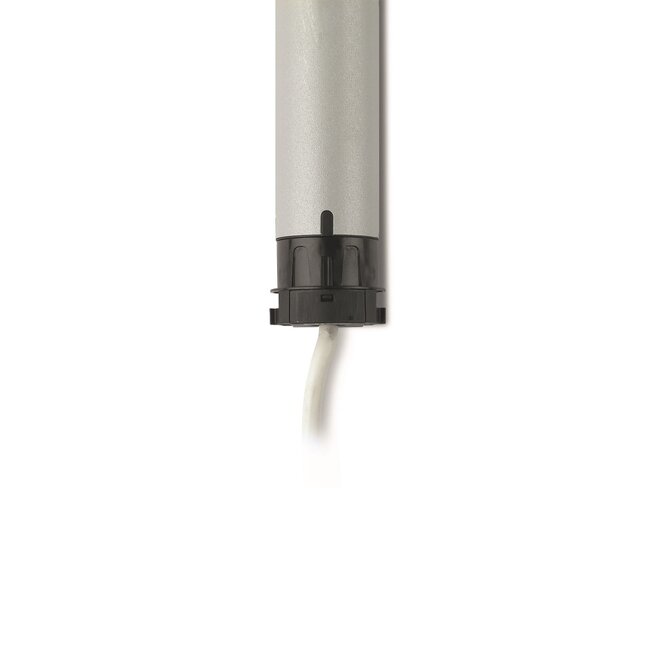

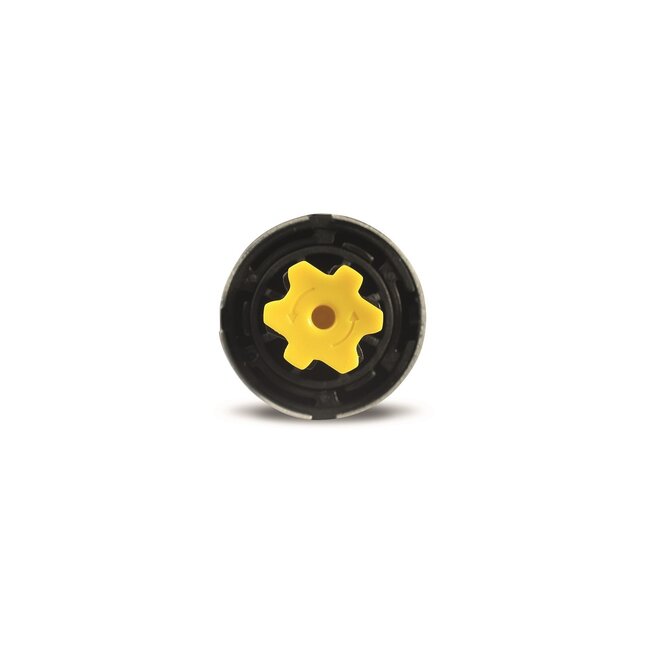

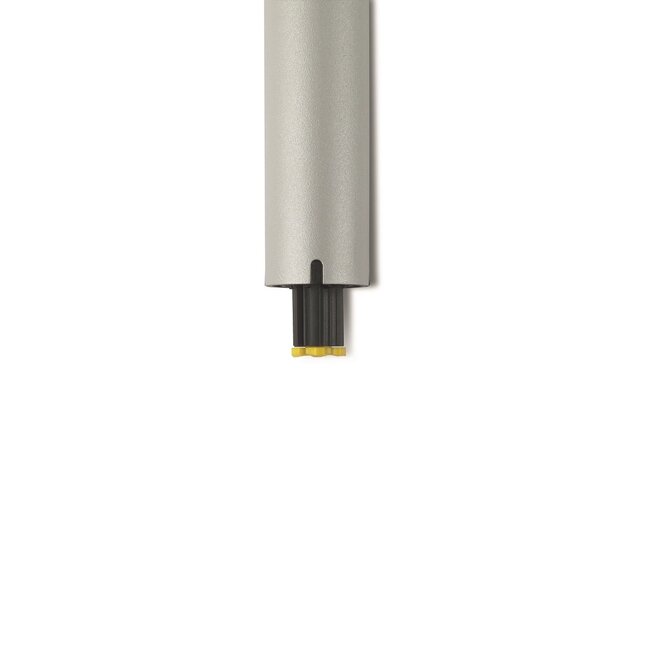

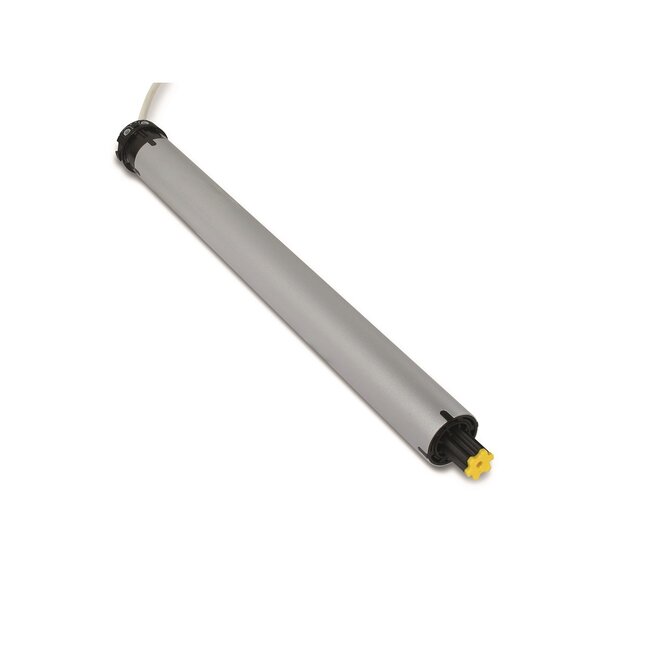

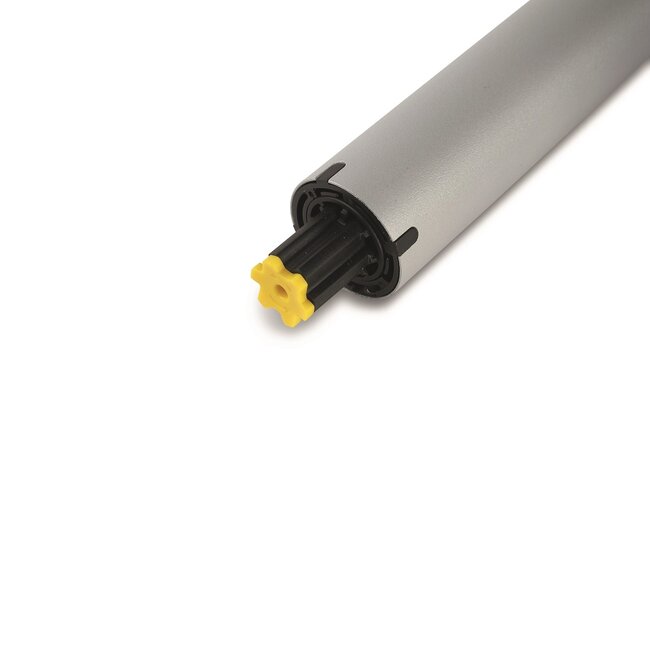

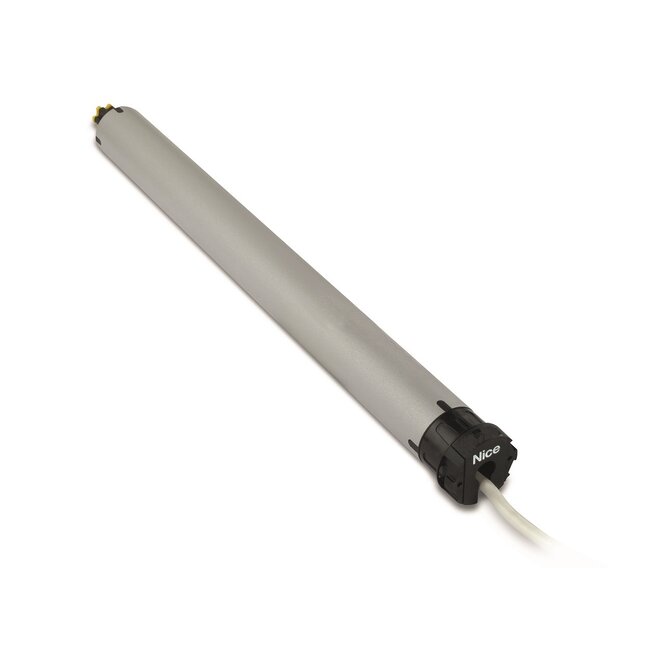

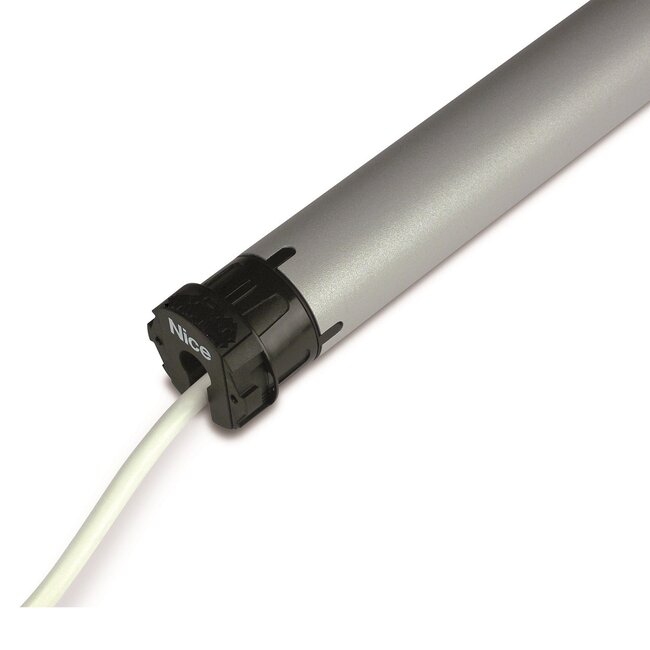

Nice Era Mat ST tubular motor with electronic limit switch adjustment, integrated receiver and TTBus technology

Easy adjustment of the limit switch using push-button adjustment and via the hand-held transmitter or the external programming units O-View TT and TTPRO
If an error is made during adjustment, programming starts again from the previous level without reprogramming all settings programmed up to that point.
Thanks to Nice TTBus 3-wire technology, the tubular motor can be controlled by low voltage, simple and intuitive wired connection to climate sensors without an external control box or Handheld transmitter.
The tube motor can be connected in parallel without an additional control box.
Maximum precision in the final adjustment in automatic and semi-automatic mode, allowing automatic adjustment of the final adjustment when the system stretches or contracts. This technology guarantees precise adjustment and constant optimal closing force, even at high temperatures.

- suitable for shading
- electronic final adjustment and integrated receiver
- simple setting of an intermediate position

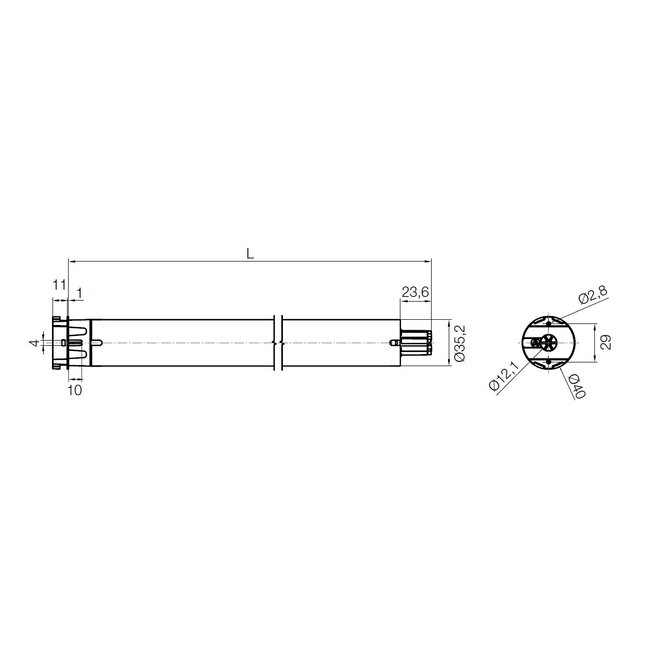

- Nice S series tubular motor with a diameter of Ø 35 mm
- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- speed 11 and 24 rpm
- available in 3, 5, 6 and 10 Nm
- 5-core white cable with a length of 2.5 metres
- tubular motor fits in tube with a minimum inner diameter of 40 mm
- not suitable for continuous use

Type Nice Era Mat ST tubular motors
- Nice Era Mat ST 3 Nm - 24 rpm
- Nice Era Mat ST 5 Nm - 24 rpm
- Nice Era Mat ST 6 Nm - 11 rpm
- Nice Era Mat ST 10 Nm - 11 rpm
