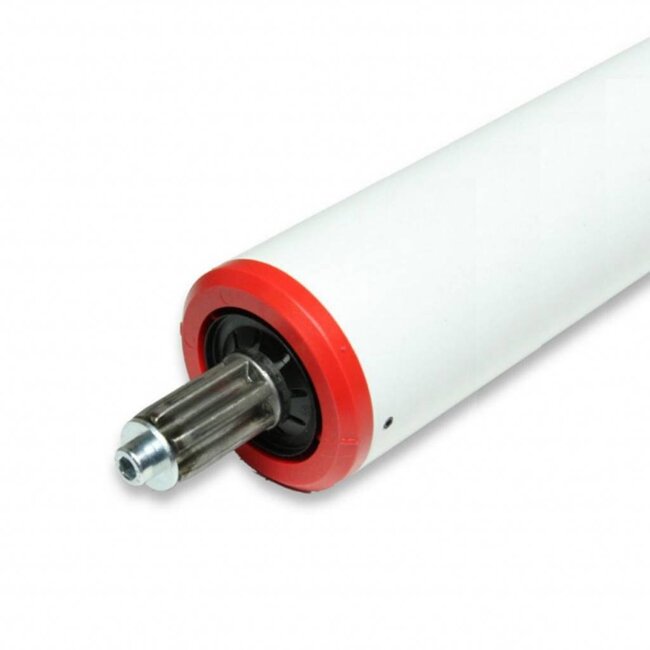

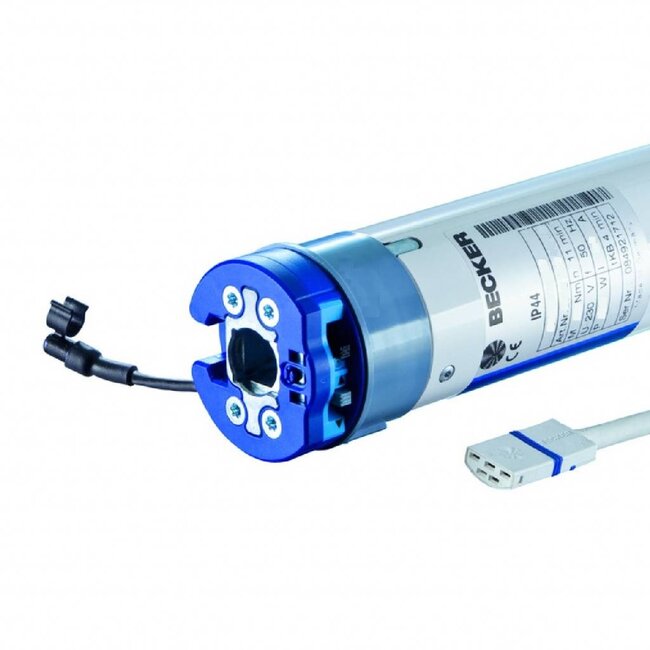

Becker awning motor L..-..-C12 with electronic limit switches and receiver

The classic Becker awning tube motor with integrated Centronic receiver for awnings and screens. Long range, wide control programme. Tried and tested for years, established in many buildings.

- Tubular motor of the Becker L..-..-C12 series
- supplied without motor support and adapter set
- suitable for drive shafts from Ø 63 mm
- replacement for the L..-..PSF(+) series
- available in 50 to 120 Nm
- speed 17 rpm at 50 Nm and 11 rpm at 60, 80 & 120 Nm
- electronic limit switch
- auto-install function
- integrated radio receiver compatible with Centronic control programme
- universal use in many sun protection applications with and without stopper
- blocking detection in UP and DOWN direction
- fabric relief switchable on/off
- automatic fabric length compensation
- increased closing force for cassette awnings
- programming of 2 freely selectable intermediate positions possible
- run-up to intermediate positions possible from any position
- individual, group and central control possible up to 16 transmitters
- soft stop at the top, optimum adjustment of closing force to protect the fabric
- motor head rewindable
