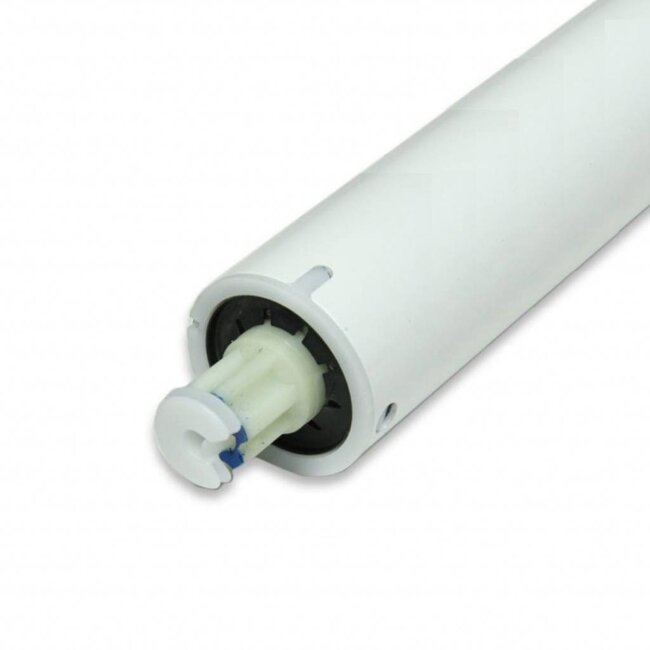

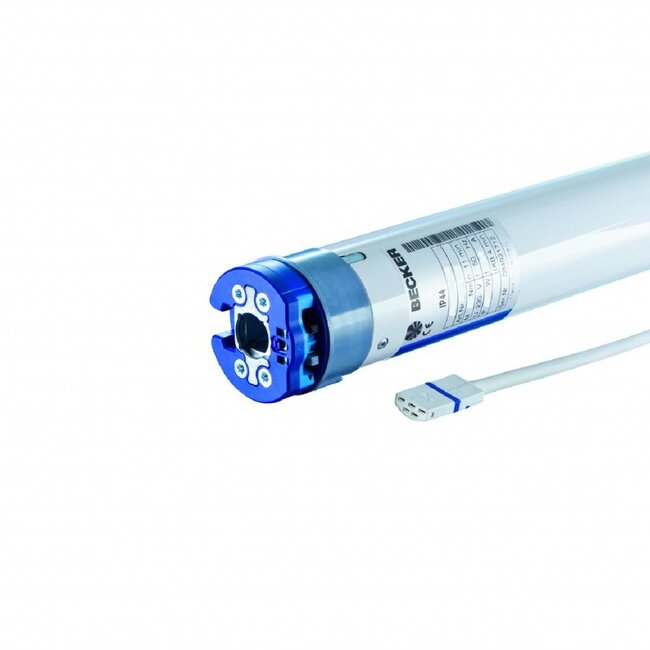

Becker awning motor R..-..-E12 with electronic limit switches

Universal sun protection motor with electronic limit switch. Perfectly matched to blinds and screens with many detailed functions.

- Tubular motor of the Becker R..-..-E12 series
- supplied without motor support and adapter set
- suitable for drive shafts from Ø 50 mm
- replacement of the series R..-..S(+), R..-..PS & R..-..C PS
- available in 8 to 50 Nm
- speed 17 rpm (50 Nm motor has 11 rpm)
- electronic limit switch
- end position setting via switch on motor head possible without special setting set
- blocking detection in UP and DOWN direction
- fabric relief switchable on/off
- automatic fabric length compensation
- increased closing force for cassette awnings
- Adjustment of end positions with conventional control element, e.g. rotary switch
- auto install function
- parallel switching without isolating relay
- soft stop at the top, optimum adjustment of closing force to protect the fabric
- motor head rewindable
