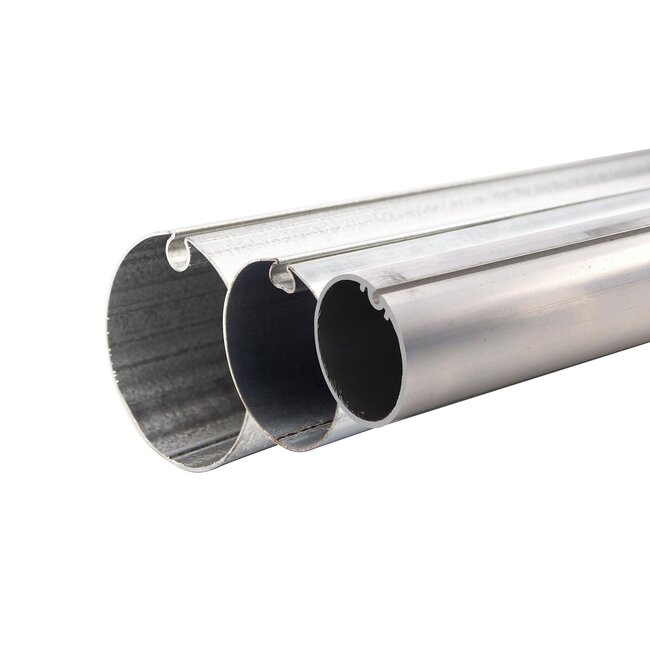

Awning shaft with cloth slot

- available in Ø 50 mm, Ø 63 mm and Ø 78 mm

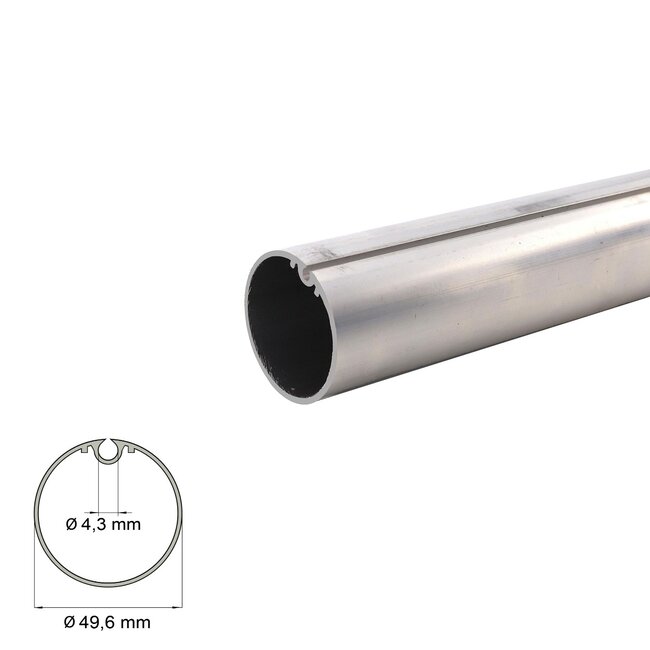

- Ø 50 mm, wall thickness 2 mm, made of aluminium
- the narrow cloth chamber of this tube makes it possible to fit a 40 mm tube motor
- because of the narrow fabric chamber, you will need a stainless steel 2 mm fabric string

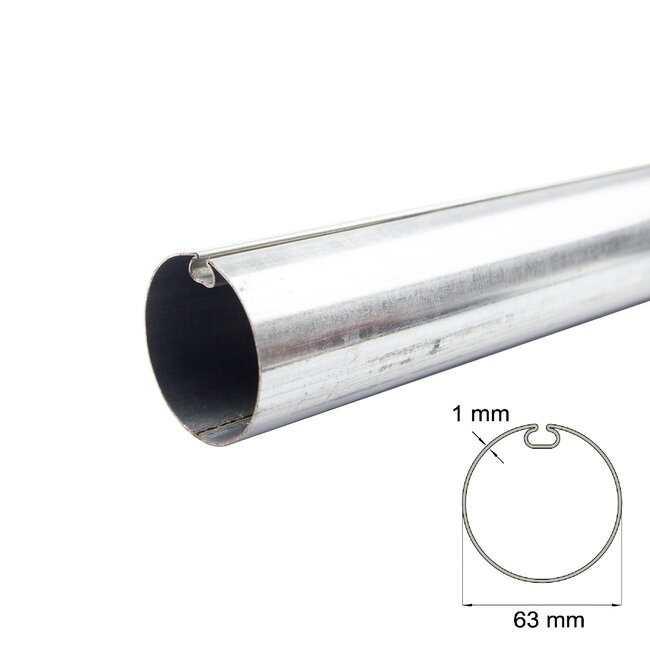

- Ø 63 mm, wall thickness 1 mm, finished in steel/galvanised

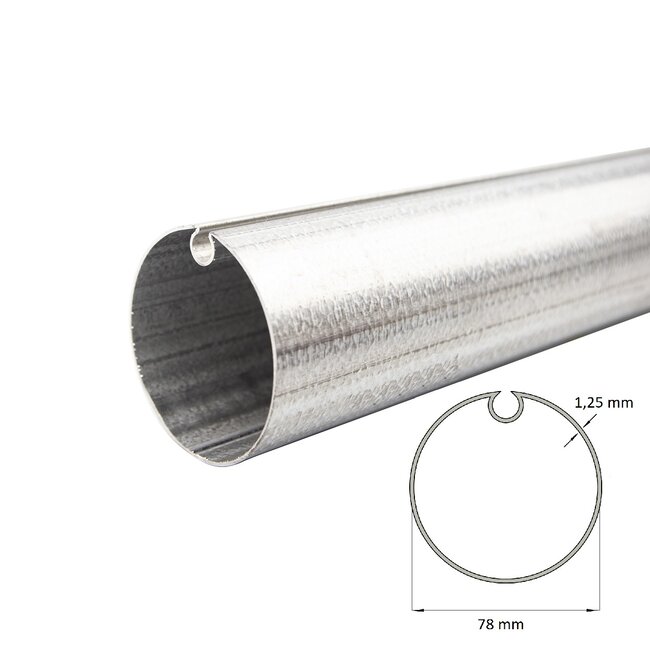

- Ø 78 mm, wall thickness 1.25 mm, finished in steel/galvanised
- available in lengths from 1000 to 6000 mm

As these Axle/Shafts are custom-made, they cannot be returned!

Please note, given the length of the Axle/Shafts, we have different shipping costs

- Netherlands
- up to 1500 mm - € 12.50
- 2000 - 4000 mm - € 55.00 own transport on route
- 4500 - 6000 mm - collection only or transport by arrangement

- Netherlands
- up to 1500 mm - € 22.50
- 2000 - 6000 mm - collection or transport only on request

- Other countries up to 1000 mm shipped
