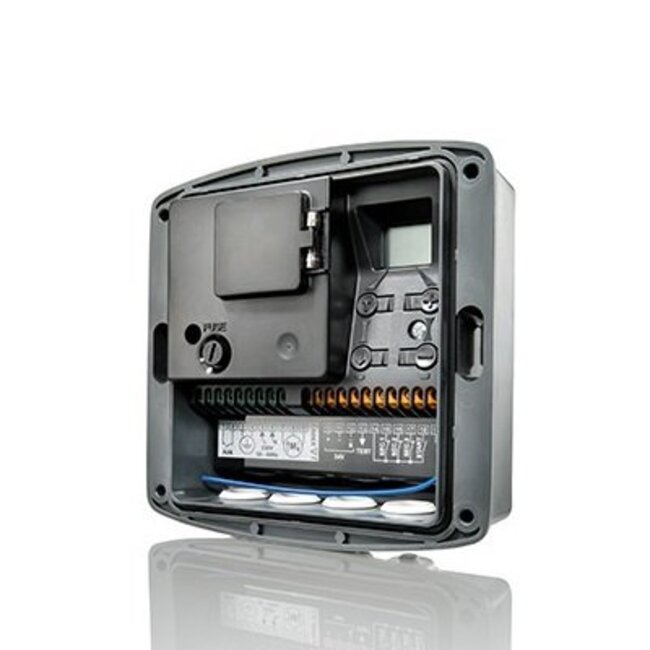

Somfy Axroll RTS control with integrated receiver

This control box is no longer available since November 2020, see the Somfy Rollixo Smart io as an alternative

- control 230V 1 phase tubular motor with integrated limit switches.
- suitable for all (wired) Somfy motors
- simple installation and programming thanks to LCD display
- set as standard in sequential mode
- parameters already set for 80% of the installation
- control of 3 security accessories: one or two photocells (indoor/outdoor) and
a bottom rail guard
- directly compatible with optical threshold protection
- integrated RTS receiver for Somfy RTS handheld transmitters
- frequency 433.42 MHz
- dimensions 150x150x40 mm
- protection category IP55
- quick and easy configuration via digital display and control and selection keypad

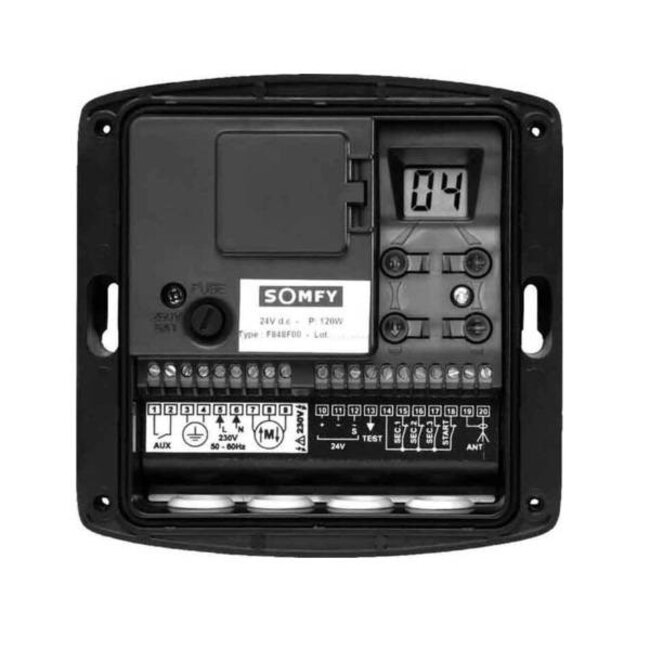

- simple cable connection on terminals, 4 cable outlets

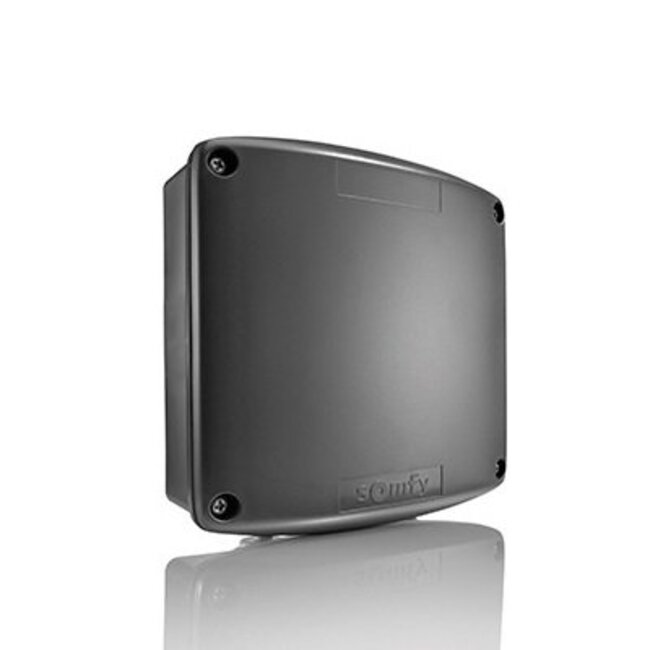

- robust housing
- built-in cycle counter
- control of a signal lamp and/or ambient lighting
