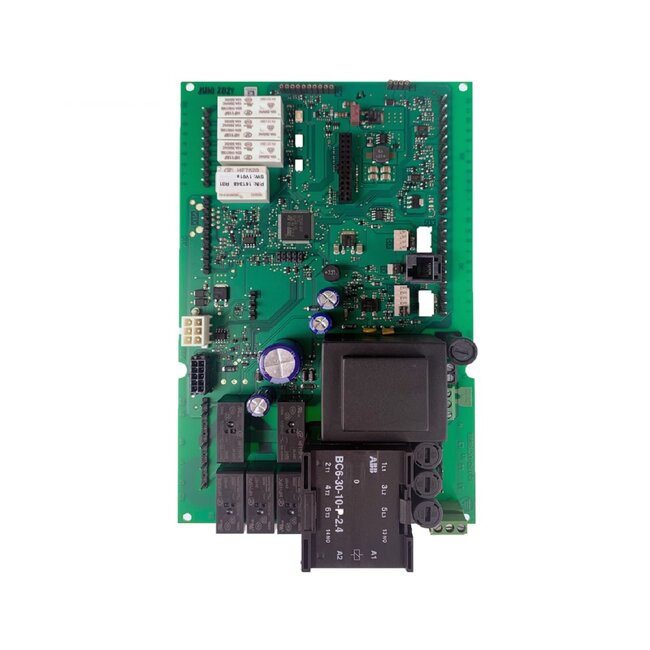

MFZ basic circuit board CS320 control box

We supply the CS320 board including the appropriate plastic cover so that the board can easily be used as a replacement for a CS300 and CS310 board.

The CS320 control box is a special development for roller, sectional and sliding gates, optimally tailored to the requirements for these. The fully developed microprocessor controller is based on the proven concept of the CS 300 and CS 310 and can be operated via an absolute encoder, control as well as mechanical limit switches. With a multitude of connection and expansion options, even complex options control tasks become child's play for the CS 320. For new installation, but also for the safe retrofitting of existing gate systems.

Functions
- 4 programmable relay outputs with 44 functions
- 2 programmable inputs with 27 functions
- change of winding direction via PCB button/display
- programmable intermediate position (only with AWG)
- adjustable force limit in upright position (only with AWG)
- direction monitoring and detection (only with AWG)
- integrated gate counter
- programmable maintenance alarm (PIN-protected)
- integrated error memory (reading of all error messages with specification frequency and cycle of last occurrence) only with LCD monitor

Final adjustment
- via mechanical limit switches or via absolute encoders
- setting via PCB button or plug-in LCD monitor

Control
- PCB buttons and LEDs for status reporting (standard)
- plug-in LCD monitor with text display (optional)
- navigation / status and diagnostic messages with 3 buttons

Construction and connection
- switchable transformer from 230V / 3 ~ to 400V / 3 ~
- short-circuit-proof low voltage
- power supply for external devices (24V DC / 500 mA and 230V-AC / 1A)
- connection for elements of the safety circuit
- connection for closing edge protection (Opto, 8.2 kΩ, pressure wave bar or leading light barrier) in direction CLOSE
- connection for closing edge protection (8.2 kΩ) in direction OPEN
- connection for two light barriers (2-wire, relay, NPN, PNP) with / without testing
- connection for wicket door sensor (8.2 kΩ) with testing
- Connection for two light curtain systems with/without testing
- Interface for connecting a frequency converter
- interface for connecting expansion modules
- slots for radio module and weekly timer
- slot for radio transmission system, 2-channel
- for wireless signal transmission of the closing edge system and/or safety circuit

Optional
- LCD monitor with text display
- MS BUS bi-directional traffic control module
- MS BUS expansion module, power protection
- integrated main switch
- individual cover foils
