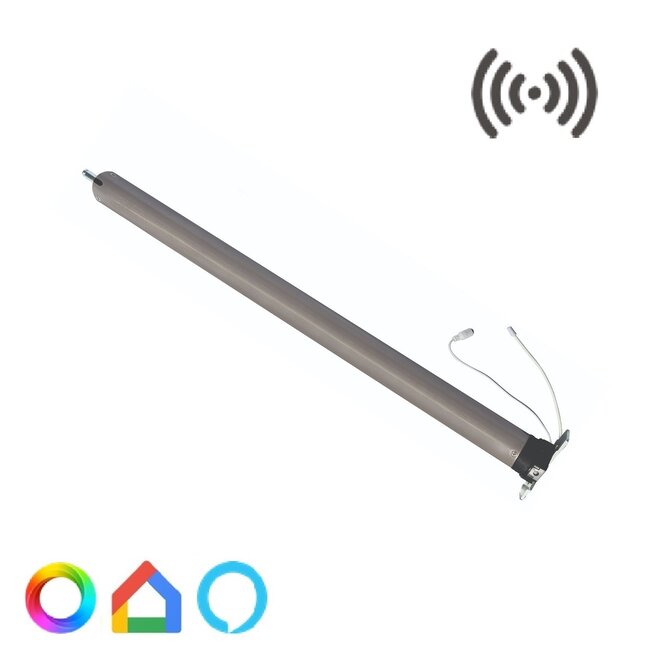

Brel BLE35 mm 12 Volt DC tubular motor

Tubular motor with integrated rechargeable Li-ion battery, receiver and electronic final adjustment. This tubular motor has a torque of 13 Nm and a diameter of 35 mm. Often used for roller blinds, (wooden) blinds, screens and shutters, possibly in combination with a solar panel. No further wiring required. This tubular motor is ideal for making your manually operated roller shutter electrically operable and for supplying a solar panel. With a diameter of 35 mm, this roller shutter motor fits into a thin 8-angular 40 mm Axle/Shaft, with which many manually operated roller shutters are equipped.

- Tubular motor with electronic final adjustment
- force 13 Nm
- speed 10 rpm
- integrated bi-directional receiver
- integrated 12 Volt Li-ion 3200 mAh battery and DIN plug
- intermediate position adjustable
- shutter motor length 670 mm
- tube motor has a diameter of Ø 35 mm
- suitable for Roller shutters with an Axle/Shaft of at least 40 mm
- power supply 12 Volt DC

NOTE: if you are converting a manual roller shutter, you will need to order the following items separately: solar panel, Handheld transmitter, adapter set and Motor support (see related products at the bottom of this page).

A full battery moves approximately 200 times before it is empty and needs to be recharged. With the solar panels in the right place (facing the sun), the battery remains full and additional charging is no longer necessary!

------------

All Brel motors with an integrated receiver can be controlled with the following Apps, from anywhere in the world (as long as you are connected...).

- Brel Home
Since 2019, Brel has had its own app, the Brel Home. This is specially geared to Brel
motorisation and also prepared for two-way communication. The app can also be linked
to voice control from Amazon Alexa or Google Home.

- Lite Smartsware Controller
All you need for this is the Lite plug. This connects
to your router and you're good to go.
It allows you to control all your Brel radio motors and also turn on timers.

- HomeWizard
For this, you need the HomeWizard box. The App then offers the opportunity to
programming scenarios, deploying actions depending on Sensor input.
So if it gets warmer than 20 degrees inside, during the day the Roller shutters
down etc.

- Homey Athom
The magic orb. Responds to any verbal command. Combines various apps.
For example, when rainfall radar indicates that it will rain in your area,
then the sunshade goes inside.

You can find the apps for the above controls in the App store or the Google Play store.
