BR45 tubular motor with bi-directional receiver and mechanical adjustment
99,95 Incl. tax
Add to cart
BR45 tubular motor with bi-directional receiver and mechanical adjustment
Brel

BR45 tubular motor with bi-directional receiver and mechanical adjustment

Brel BR45 bi-directional remote-controlled shutter motor with a speed of 15 rpm and 20 or 40 Nm. Read more.

99,95 Incl. tax
In stock
Je hebt nog 00:00:00 uur om je bestelling af te ronden.
  • Affiliated to Home shopping guarantee
  • Fast delivery Delivery within 2 working days
  • Free shipping when spending €100 (in NL)

Product description

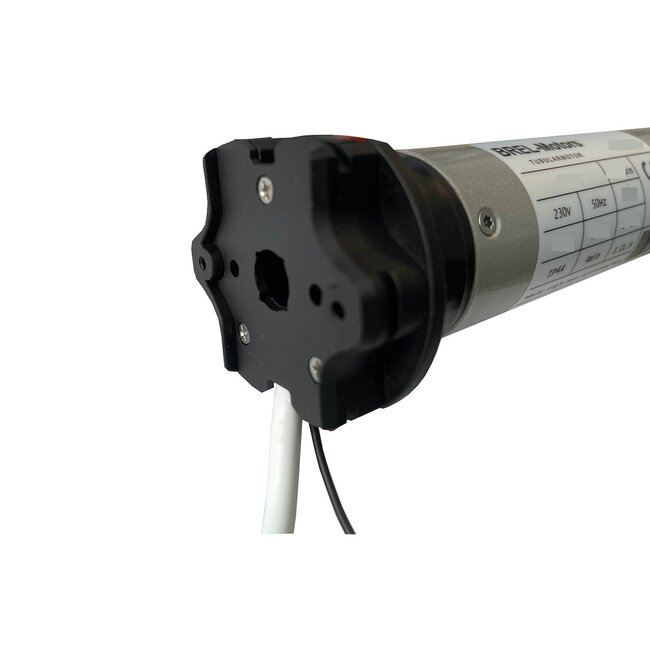

Brel BR45 bi-directional tubular motor for roller shutters and blinds

- Motor support and adapter set not included in delivery

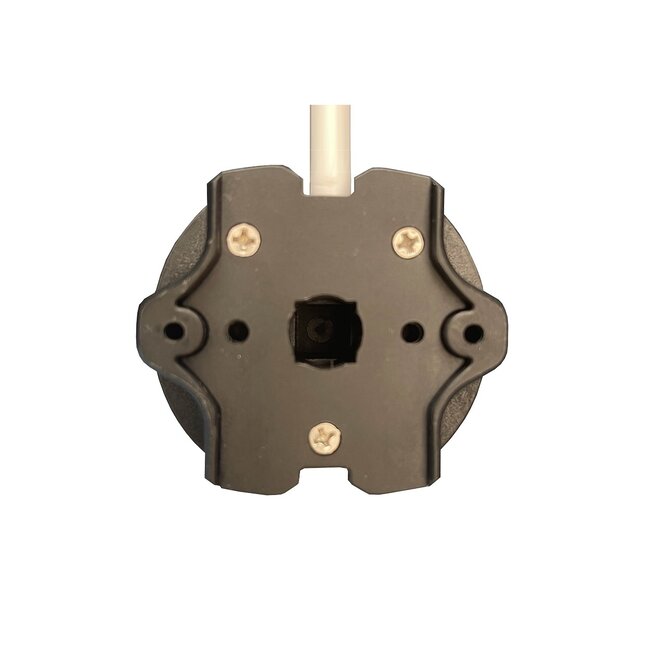

- tubular motor is fitted with a renewed "starhead" motor head
- tubular motor has mechanical final adjustment
- Motor is equipped with an integrated receiver
- the bi-directional receiver only works with a bi-directional transmitter
- tubular motor has a diameter of Ø 45 mm
- suitable for Roller shutters with an Axle/Shaft of at least 50 mm
- available in 20 and 40 Nm
- speed 15 rpm
- Motor length 20 Nm is 612 mm, 40 mm is 643 mm
- power supply 230 Volt

------------

All Brel motors with an integrated receiver can be controlled with the following Apps, from anywhere in the world (as long as you are connected...).

- Brel Home
Since 2019, Brel has had its own app, the Brel Home. This is specially geared to Brel
motorisation and also prepared for two-way communication. The app can also be linked
to voice control from Amazon Alexa or Google Home.

- Lite Smartsware Controller
All you need for this is the Lite plug. This connects
to your router and you're good to go.
It allows you to control all your Brel radio motors and also turn on timers.

- HomeWizard
For this, you need the HomeWizard box. The App then offers the opportunity to
to programme scenarios, to deploy actions depending on the input of sensors.
So if it gets warmer than 20 degrees inside, during the day the Roller shutters
down etc.

- Homey Athom
The magic orb. Responds to any verbal command. Combines various apps.
For example, when rainfall radar indicates that it will rain in your area,
then the sunshade goes inside.

You can find the apps for the above controls in the App store or the Google Play store.

Back to all Roller shutter and tubular motors >>

Specifications

Article number
4722
EAN Code
7432257689654
SKU
BR45-20
Motor series
Brel 45 mm
Cable
2.5 metres, white, 0.75 mm2
Supply voltage
230 V - 50 Hz
Maximum duration
10 cycles per day
Protection class
IP44
Ambient temperature
-10 °C to 40 °C and exceptionally -20 °C to 60 °C
Thermal protection
4 minutes
Revolutions
15 rpm
Emergency manual

Recently viewed

Specifications

Article number
4722
EAN Code
7432257689654
SKU
BR45-20
Motor series
Brel 45 mm
Cable
2.5 metres, white, 0.75 mm2
Supply voltage
230 V - 50 Hz
Maximum duration
10 cycles per day
Protection class
IP44
Ambient temperature
-10 °C to 40 °C and exceptionally -20 °C to 60 °C
Thermal protection
4 minutes
Revolutions
15 rpm
Emergency manual
