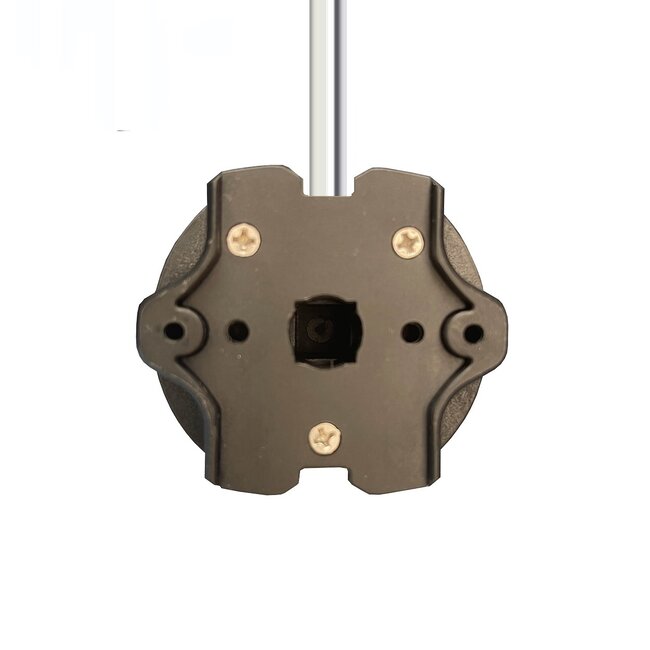

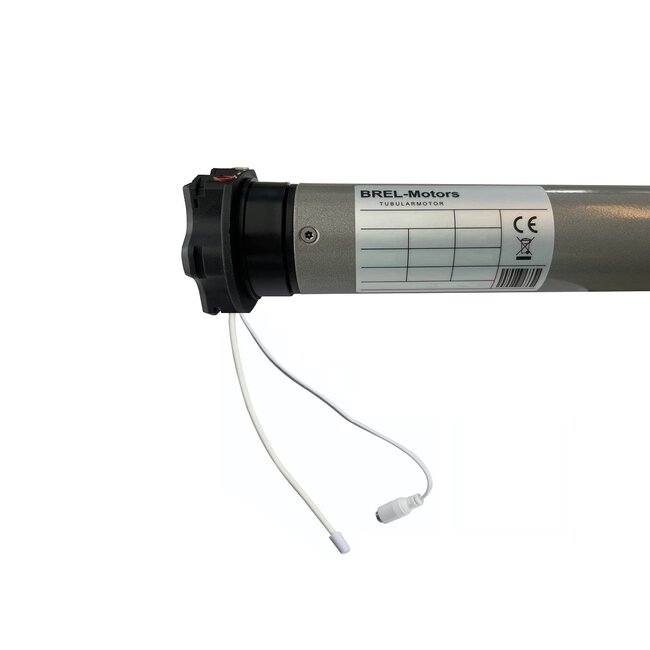

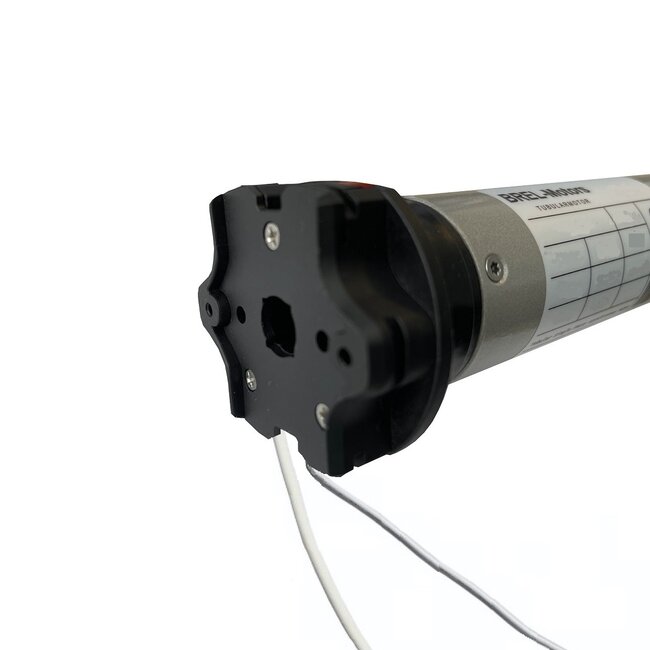

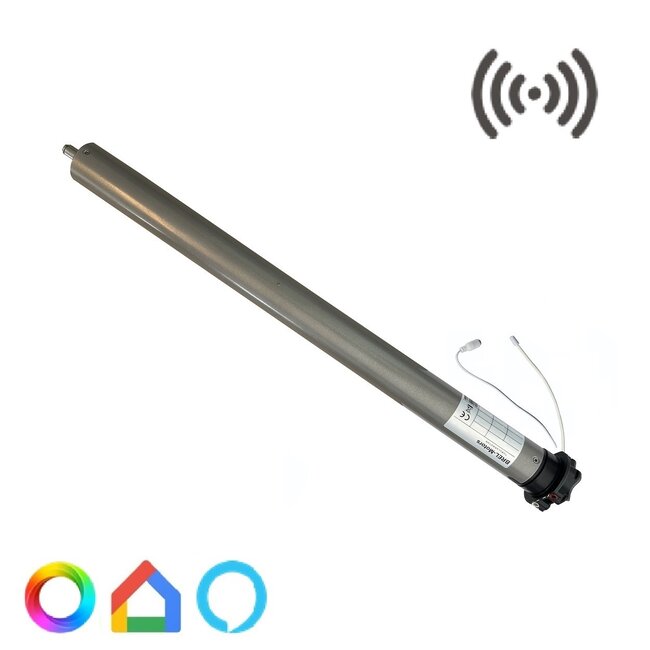

BRE45 roller shutter motor with receiver, obstacle detection and electronic adjustment
114,95 Incl. tax
Add to cart
BRE45 roller shutter motor with receiver, obstacle detection and electronic adjustment
Brel

BRE45 roller shutter motor with receiver, obstacle detection and electronic adjustment

Brel 45 mm tube motor especially for roller shutters, Plug and Play, with integrated receiver, electronic adjustment and obstacle detection that prevents jamming and freezing. This roller shutter motor is suitable for an Axle/Shaft of at least 50 mm. Read more.

114,95 Incl. tax
In stock
Je hebt nog 00:00:00 uur om je bestelling af te ronden.
  • Affiliated to Home shopping guarantee
  • Fast delivery Delivery within 2 working days
  • Free shipping when spending €100 (in NL)

Product description

Brel BRE45 mm tube motor especially for roller shutters

The Brel roller shutter motor is available with a power of 20 and 40 Nm. The Motor is fully Plug and Play, making it very easy to adjust. Thanks to the obstacle detection, the Motor will not jam or freeze. You easily operate your roller shutters remotely with this tubular motor. This roller shutter motor is suitable for roller shutters with an Axle/Shaft of 50 mm, one of the most common sizes.

- this motor can only be operated with a brel bi-directional handheld transmitter
(these are the handheld transmitters DD2700, DD2702, DD2705 and wall transmitter DD2770)
- Motor support and adapter set not included in delivery
- Roller shutter must have rigid connections
- Roller shutter must also have a fixed upper and lower stop
- tubular motor with electronic final adjustment
- with integrated receiver
- prevents jamming/freezing thanks to obstacle detection
- Motor is fully Plug an Play
- programmable OP, STOP and DOWN separately and OP-STOP-REVER as impulse
- can be operated with Switch as well as Handheld transmitter
- Motor length 20 Nm is 610 mm, 40 Nm is 660 mm
- tubular motor has a diameter of Ø 45 mm
- available in 20 Nm and 40 Nm
- speed 15 rpm
- suitable for Roller shutters with an Axle/Shaft of at least 50 mm
- power supply 230 Volt

------------

All Brel motors with an integrated receiver can be controlled with the following Apps, from anywhere in the world (as long as you are connected...).

- Brel Home
Since 2019, Brel has had its own app, the Brel Home. This is specially geared to Brel
motorisation and also prepared for two-way communication. The app can also be linked
to voice control from Amazon Alexa or Google Home.

- Lite Smartsware Controller
All you need for this is the Lite plug. This connects
to your router and you're good to go.
It allows you to control all your Brel radio motors and also turn on timers.

- HomeWizard
For this, you need the HomeWizard box. The App then offers the opportunity to
programming scenarios, deploying actions depending on Sensor input.
So if it gets warmer than 20 degrees inside, during the day the Roller shutters
down etc.

- Homey Athom
The magic orb. Responds to any verbal command. Combines various apps.
For example, when buienradar indicates that it will rain in your area,
then the sunshade goes inside.

You can find the apps for the above controls in the App store or the Google Play store.

Specifications

Article number
3597
EAN Code
7432257482446
SKU
BRE45-20
Motor series
Brel 45 mm
Cable
2.5 metres, white, 0.75 mm2
Supply voltage
230 V - 50 Hz
Maximum duration
10 cycles per day
Protection class
IP44
Ambient temperature
-10 °C to 40 °C and exceptionally -20 °C to 60 °C
Thermal protection
4 minutes
Revolutions
15 rpm
Emergency manual

Recently viewed

Specifications

Article number
3597
EAN Code
7432257482446
SKU
BRE45-20
Motor series
Brel 45 mm
Cable
2.5 metres, white, 0.75 mm2
Supply voltage
230 V - 50 Hz
Maximum duration
10 cycles per day
Protection class
IP44
Ambient temperature
-10 °C to 40 °C and exceptionally -20 °C to 60 °C
Thermal protection
4 minutes
Revolutions
15 rpm
Emergency manual
