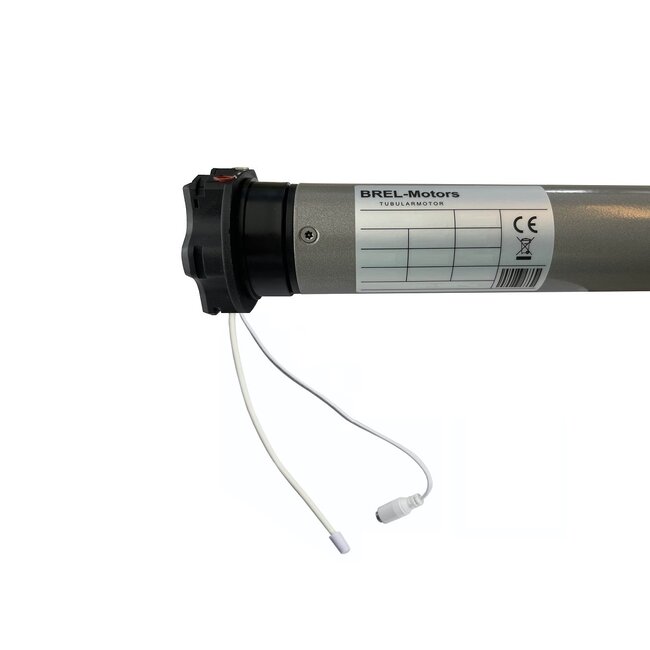

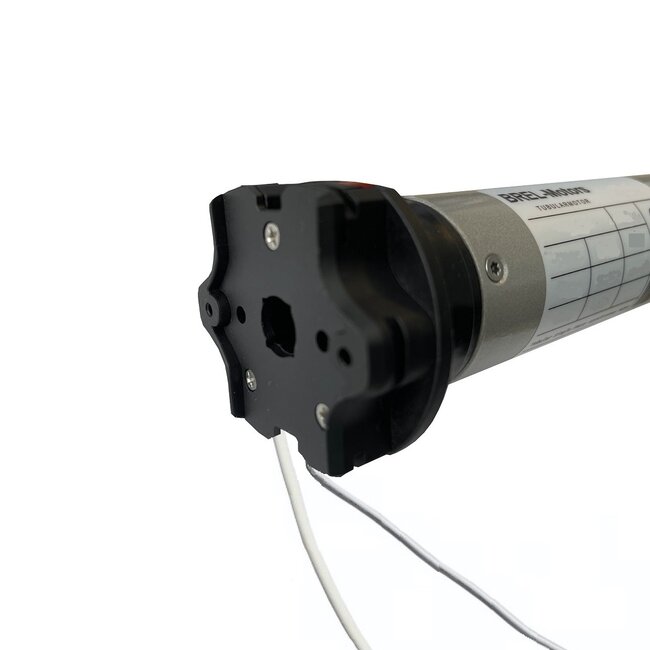

Brel BZE45 mm tubular motor especially for sun blinds

The Brel awning motor is available with a force of 20 and 40 Nm. Motor is equipped with an automatic fabric correction function, which keeps the fabric taut year after year. You easily operate your awning or Screen remotely with this tubular motor. This tubular motor is suitable for blinds with an Axle/Shaft of at least 50 mm, one of the most common sizes.

- This motor can only be operated with a brel bi-directional handheld transmitter.
(these are the handheld transmitters DD2700, DD2702, DD2705 and wall transmitter DD2770)
- Motor support and adapter set not included in delivery

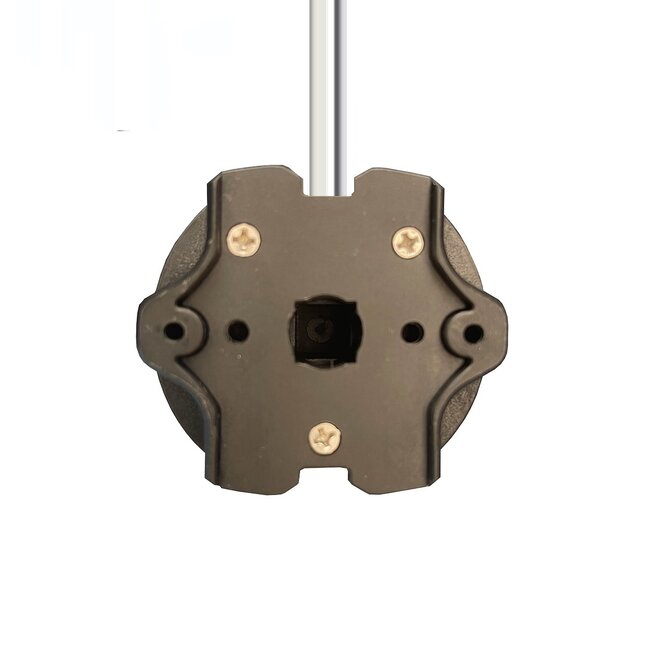

- from 2023 this tubular motor is fitted with a Starhead motor head
- tubular motor with electronic final adjustment
- equipped with integrated receiver
- automatic fabric correction ensures fabric is always taut
- Programmable OP, STOP and DOWN separately and OP-STOP-REVER as an impulse
- can be operated with Switch as well as Handheld transmitter
- Motor length 20 Nm is 610 mm, 40 Nm is 660 mm
- tubular motor has a diameter of Ø 45 mm
- available in 20 Nm and 40 Nm
- speed 15 rpm
- suitable for blinds with an Axle/Shaft of at least 50 mm
- power supply 230 Volt

------------

All Brel motors with an integrated receiver can be controlled with the following Apps, from anywhere in the world (as long as you are connected...).

- Brel Home
Since 2019, Brel has had its own app, the Brel Home. This is specially geared to Brel
motorisation and also prepared for two-way communication. The app can also be linked
to voice control from Amazon Alexa or Google Home.

- Lite Smartsware Controller
All you need for this is the Lite plug. This connects
to your router and you're good to go.
It allows you to control all your Brel radio motors and also turn on timers.

- HomeWizard
For this, you need the HomeWizard box. The App then offers the opportunity to
programming scenarios, deploying actions depending on Sensor input.
So if it gets warmer than 20 degrees inside, during the day the Roller shutters
down etc.

- Homey Athom
The magic orb. Responds to any verbal command. Combines various apps.
For example, when buienradar indicates that it will rain in your area,
then the sunshade goes inside.

You can find the apps for the above controls in the App store or the Google Play store.
