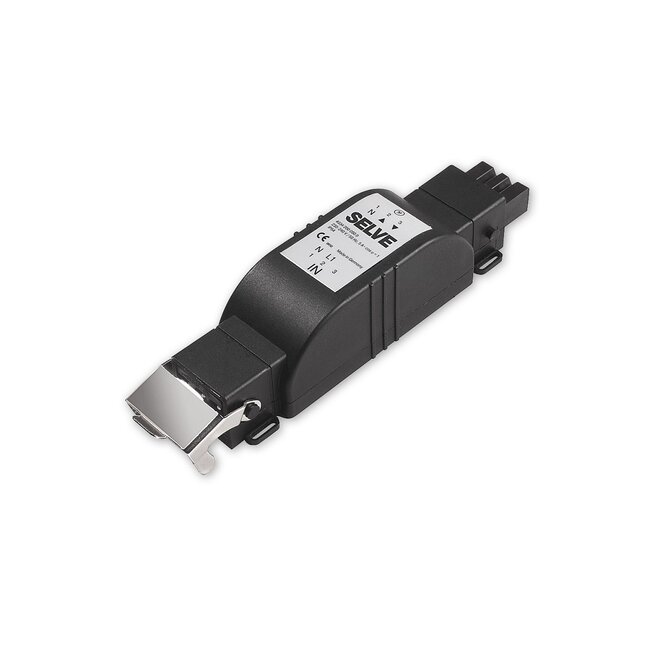

Selve Commeo Receive Connect Hirschmann receiver

Control your "wired" tubular motor with a Selve Handheld transmitter, the receiver can be controlled by any transmitter in the intronic, iveo or commeo range. A maximum of 16 transmitters can be programmed.

- Frequency 868.3 MHz (Iveo) oder 868.1 MHz (Commeo)
- operating voltage 230V AC / 50 - 60 Hz
- standby consumption < 0.5 Watt
- Dimensions 42 x 169 mm
- protection class IPS4
- temperature range -25°C to +55°C

Intermediate position --> The intermediate position is a freely selectable position of the Roller Shutter / awning between the upper and lower final position. This position can be accessed from the upper end position after programming. To do this, the "Down" button must be pressed twice in quick succession.

Venting / turning / fabric stretching --> The Venting / turning / fabric stretching position is a freely selectable position of the Roller shutter / Venetian blind / awning between the lower and upper end position. This function allows you to open the Roller shutter from the lower end position until the ventilation slots are open. In the case of the Venetian blind, the slats are rotated. Stretching the fabric from the awning. To do this, press the "Up" button twice in quick succession.

Control of blinds / awnings --> The commeo Receive Connect can be switched between blind and awning control. In blinds mode, the receiver moves in jog mode for the first second.
