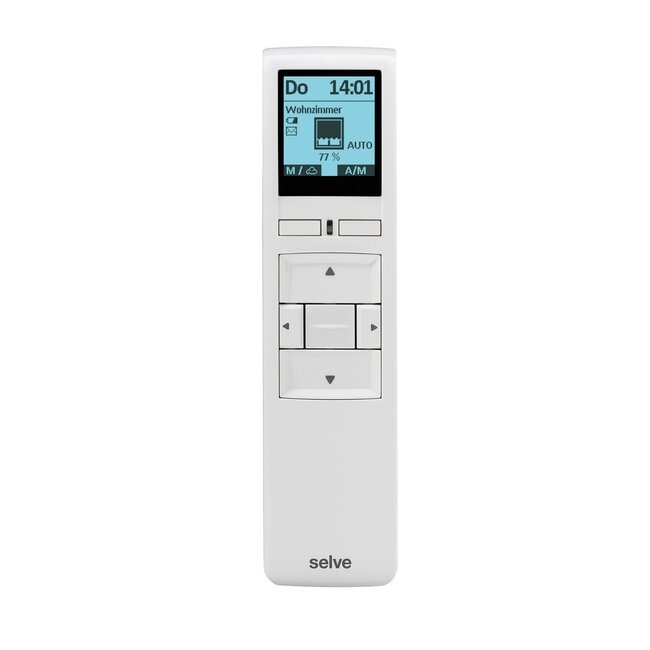

Selve Commeo Multi Send handheld transmitter

The Commeo Multi Send handheld transmitter is the central unit for fully automatic, radio-controlled home control, with 20 or even 32 channels. The transmitter lies well in the hand and has a modern, timeless design.
With the commeo Multi Send, you control all wireless drives and receivers in the house, both individually and collectively in groups, e.g. per room. The systems are controlled by pressing a button, automatically via an integrated Timer, or when the sun rises or sets.
The Handheld transmitter can be programmed on the device itself or using the handy commeo Multi Send KonfigTool on your Mac or PC.

- individual programme, adjustable switching times
- astro programme, switching times correspond to sunrise and sunset
- holiday programme, ± 15 minutes around the set switching time
- large illuminated display
- free group composition and naming of assigned devices, channels and groups
- set individual sensor parameters in assigned sensors
- simple programming with the commeo Multi Send KonfigTool for PC and Mac
- frequency 868 MHz
- battery 3 V DC, 2xAAA
- operating temperature 0°C to +55°C
- Protection class IP 20
- Dimensions 42x169x20 mm (wxhxd)
- 20 channels, 9 groups and 1 central group
- 2 switching times can be set per group
- after upgrade 32 channels, 16 groups, 1 central group and 4 switching times

BASIC version
The commeo Multi Send is delivered in the BASIC version. The commeo Multi Send was first launched in 2015. As can be expected from a premium manufacturer, it has been optimised and now includes several new functions and a clearer menu structure.
Older devices can be updated to the latest BASIC software version free of charge in the commeo Multi Send KonfigTool. This also activates a free 14-day trial of the PREMIUM version and its functions. Your assigned devices and current settings are of course transferred!

PREMIUM version
You can also buy an upgrade to the PREMIUM version, which offers more transmitters, groups and switching times, as well as useful additional functions.
It is also possible to activate a free 14-day trial version in the commeo Multi Send KonfigTool (via "UPDATE" > "14-day trial licence").
To fully upgrade your software to the PREMIUM version, you need to purchase a key code for €9.90. The code is purchased via our partner Digistore24. After purchase, you will receive an e-mail with the 16-digit key code. To upgrade to the PREMIUM version, simply enter the key code in the commeo Multi Send KonfigTool.

New Handheld transmitter programming in case of defective or missing transmitter

- power supply off for 3 seconds
- power supply on for 3 seconds
- power supply off for 3 seconds
- power supply on
- press the PROG button on the transmitter for 3 seconds
- all old transmitters/channels are deleted and the new Transmitter
is programmed

Programming additional Handheld transmitters/channels

- press for 3 seconds on the PROG button of an already functioning
Handheld transmitter , the confirms this by briefly running open and closed.
- the receiver is in programming mode for 1 minute
- briefly press (1 second) the PROG button of the new hand-held transmitter
or the new channel
- the new transmitter or channel is now programmed
