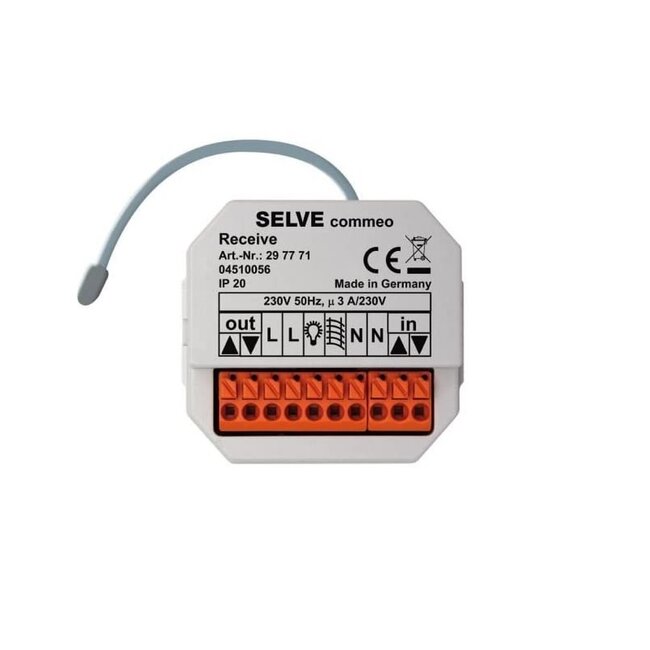

Selve Commeo Receive receiver

Simple extension of existing remote control from the SELVE Commeo range. Unobtrusive installation in a standard flush-mounted box. The Commeo Receiver can be controlled by any transmitter of the Selve Commeo range. A maximum of 16 transmitters can be programmed. The tube motor is connected to the Commeo Receive receiver via a cable. The receiver can control the Motor both in "dead man" control and by means of a continuous signal of 120 Seconds.

- Frequency 868 MHz
- two-way radio technology from SELVE
- operating voltage 230V AC, 50 Hz
- power consumption in standby mode <0.5 W
- degree of protection IP20
- ambient temperature: -25 °C to + 55 °C
- Dimensions 52x50x29 mm (wxhxd)
- flush-mounting box Ø 60 mm x 40 mm

Lighting
The receiver can also be set for lighting control, switching the relay on and off with the transmitter.

Intermediate position
The intermediate position is a freely selectable position of the Roller Shutter / Venetian blind / sunshade between the upper and lower final position. This position can be accessed from the upper end position after programming. To do this, the "Down" button must be pressed twice in quick succession.

Venting / turning / fabric stretching
The ventilate / turn / fabric stretch position is a freely selectable position of the Roller shutter / Venetian blind / awning between the lower and upper final position. This function allows you to open the Roller shutter from the lower end position until the ventilation slots are open. In the case of the Venetian blind, the slats are rotated. Stretching the fabric from the awning. To do this, press the "Up" button twice in quick succession.
