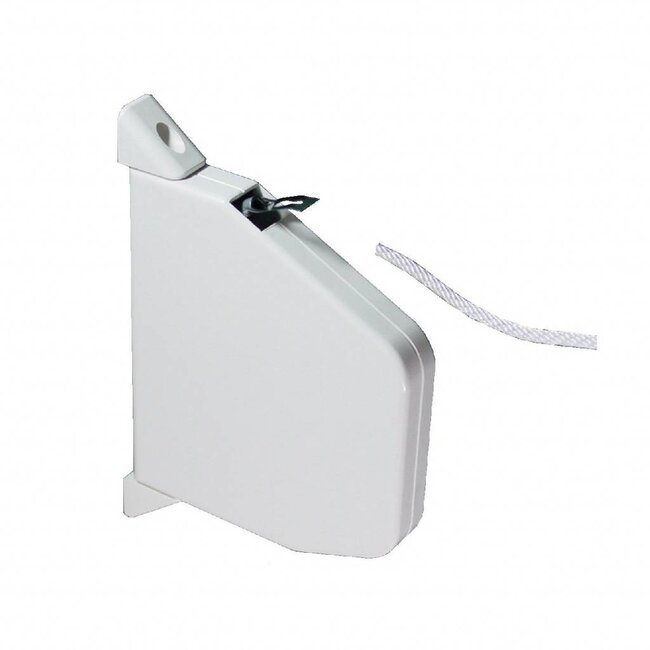

Siral cord winder or cord winder for 4.5 metres of cord

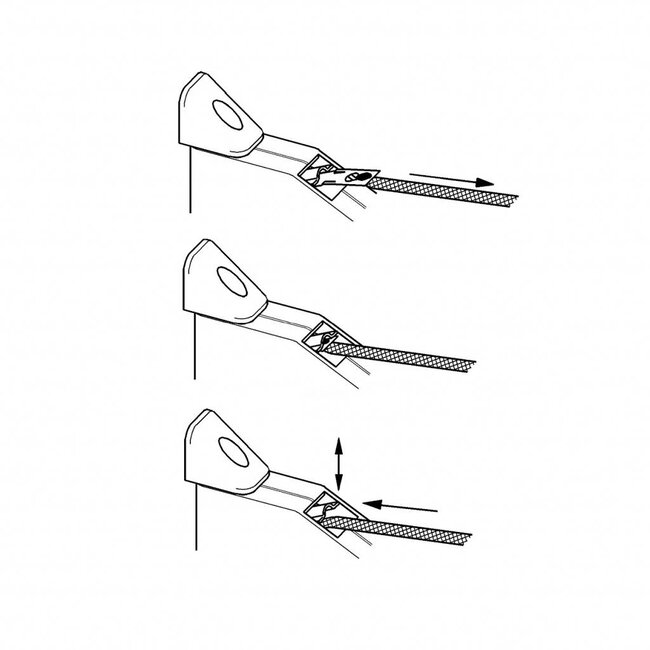

- very easy to assemble and attach the cord without opening the cord winder
- Cord is supplied without cord
- comes with Dutch assembly instructions
- colour white
- with pre-tensioned spring
- housing cannot be opened

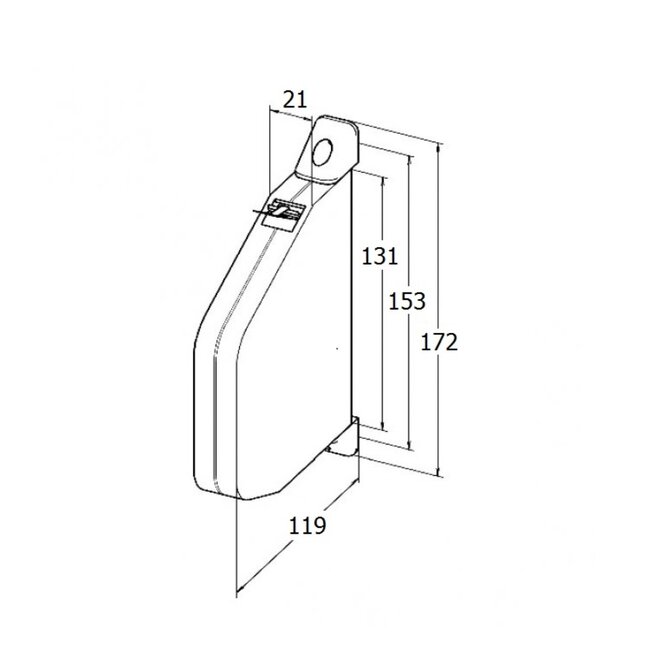

- the housing is 21 mm thick, 132 mm wide and 145 mm high
- fixing holes 153 mm apart
- with plastic housing and metal interior
- suitable for cord from Ø 4 to Ø 4.5 mm
- for Ø 4 mm cord max 4.5 metres
- for Cord Ø 4.5 mm max 3.75 metres of cord
- suitable for Roller shutters up to 200 cm high
- maximum roller shutter surface area 4 m2
- Cord length required is approx. shutter height x 2

-- download the Cord winder assembly instructions here --
