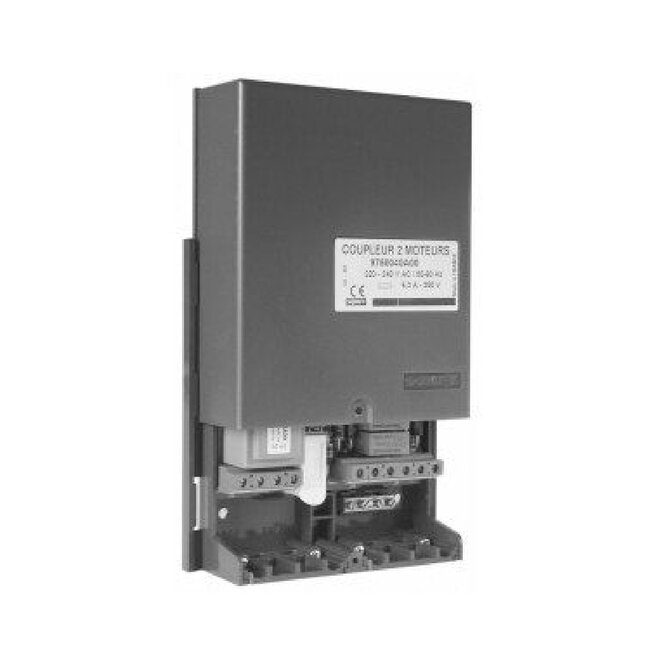

Somfy coupling box for 2 tubular motors

If 2 standard tube motors are used in one tube, i.e. one motor 'left' and one motor 'right', this coupling box controls the final adjustment of both motors.

-
- effective torque is 0.9 x sum of the torques of the 2 motors
- use a maximum of 120 Nm tubular motors
- to be used with automatic zero point switch
- mounted in an impact-proof grey plastic box
- control current 230 Volt
- protection degree IP44, only use indoors
- dimensions 135x120x2 mm (wxhxd)
