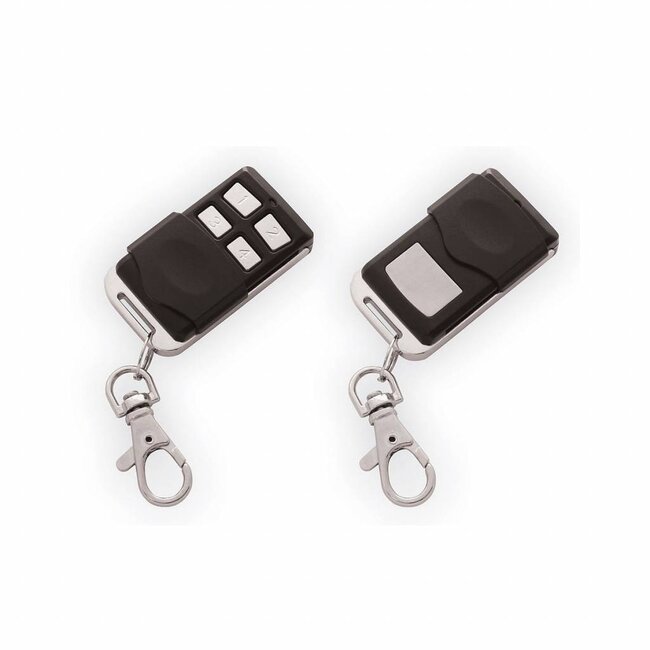

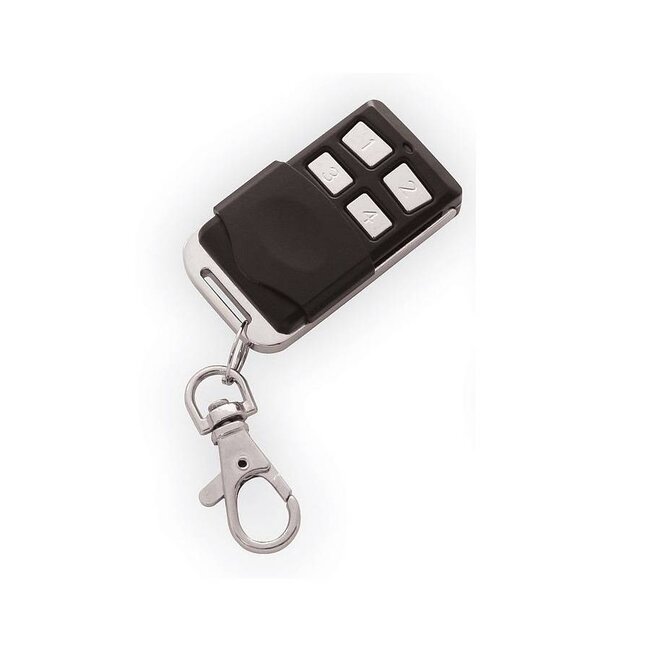

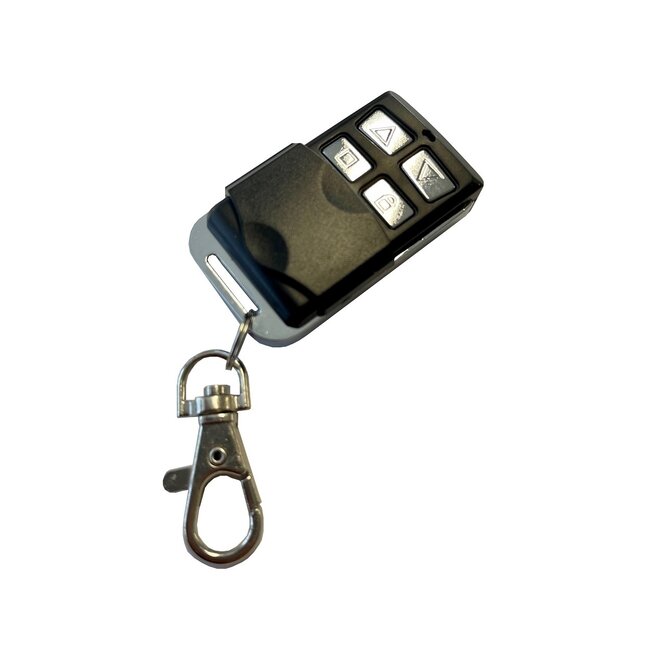

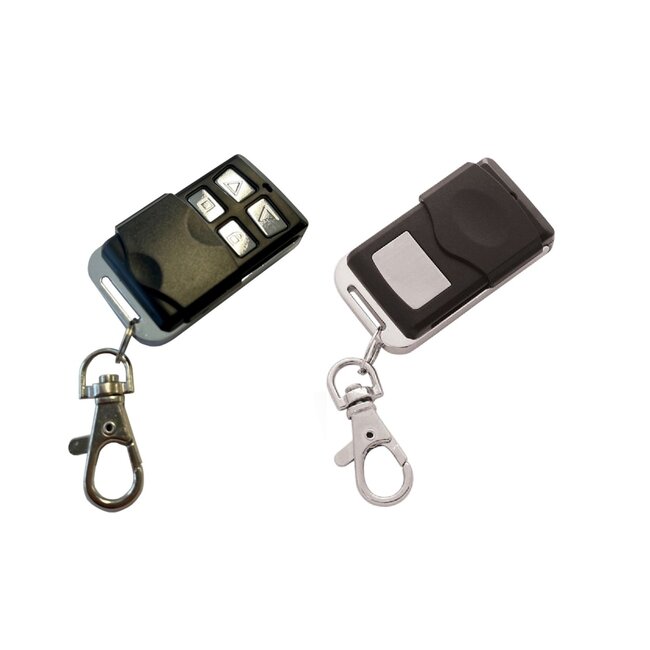

Brel DC115A 1-channel 433 MHz handheld transmitter

Mini handheld transmitter
- suitable for Brel and Faher tubular motors
- frequency 433 MHz
- 1 channel
- you need another handheld transmitter to programme this transmitter
- waterproof
- black
- battery supplied as standard

learning additional Handheld transmitter
- go to the Roller shutter where you want to learn the transmitter
- press 2x the P2 button of an already functioning Handheld transmitter
- Motor of the Roller Shutter confirms with a beep
- Press once the P2 button of the new handheld transmitter
- Roller shutter motor confirms this action with 2x beeps
- Handheld transmitter is programmed

The P2 button can be located at the back or near the battery, the DC61 or DC115A does not have a P2 button, use the "up" and "stop" buttons as "P2" buttons simultaneously
